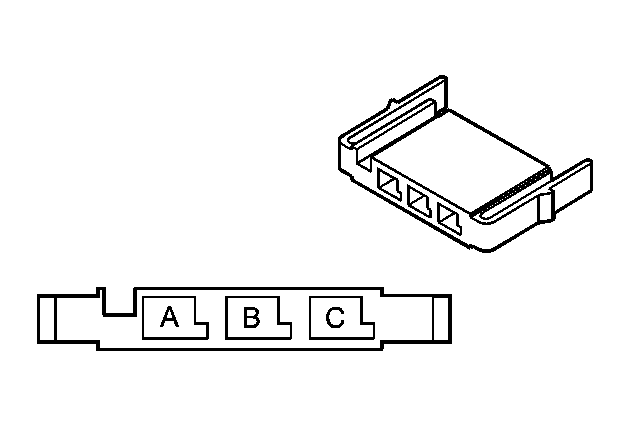

Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector End View, Wiring Harness Side

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side

GM177157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162200
  • Conn 3F M/P 150.2 P2S (RED)
Pin Wire Color Circuit No. Function
A PNK 1224 Transmission Range Switch Signal A Input
B DK BLU 1225 Transmission Range Switch Signal B Input
C ORN 1226 Transmission Range Switch Signal C Input
