Installation Procedure

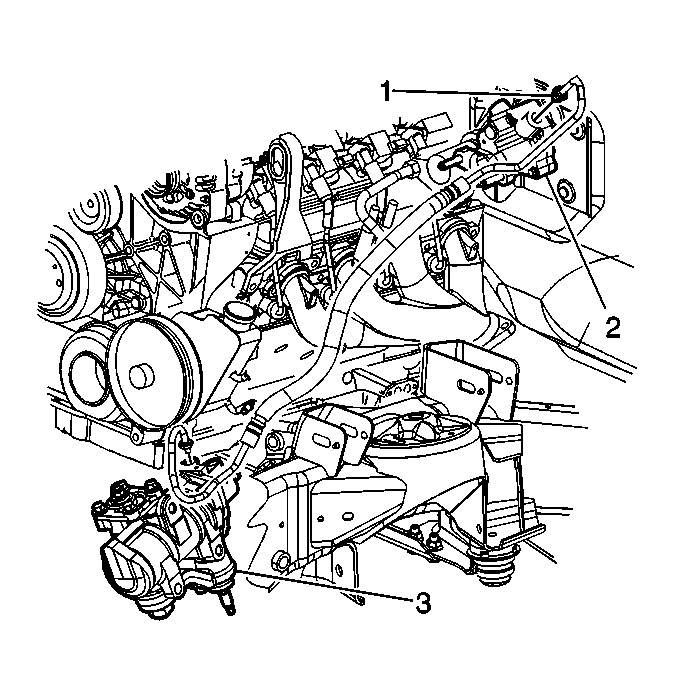

Fig 1: View Of Power Steering Gear Inlet Hose (With Hydroboost)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Installing Hoses Without Twists or Bends Notice in Cautions and Notices.

Route the hose in the same position the hose occupied prior to removal.
Install the power steering gear inlet hose (1) to the brake booster (2). Hand tighten only.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the power steering gear inlet hose to the power steering gear.
Tighten: Tighten both power steering gear inlet hose fittings to 28 N.m (20 lb ft).
Remove the drain pan from under the vehicle.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
