Assembly Procedure

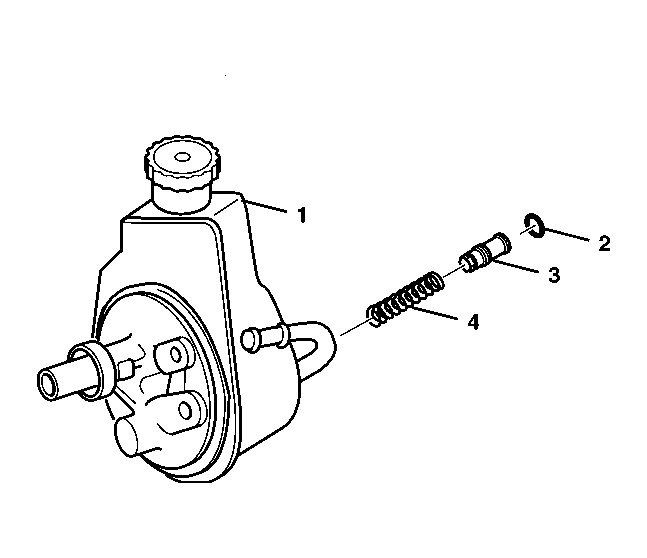

    Fig 1: View Of Reservoir, Control Valve Assembly, Flow Control Spring & Rectangular Section Seal
    GM431058Courtesy of GENERAL MOTORS CORP.
  1. Install the flow control spring (4) if removed from the pump housing (1).
  2. Lubricate the new rectangular section seal (2) with power steering fluid.
  3. Install the rectangular section seal (2) onto the control valve assembly (3).
  4. Install the control valve assembly (3).
