Body Control System Component Views

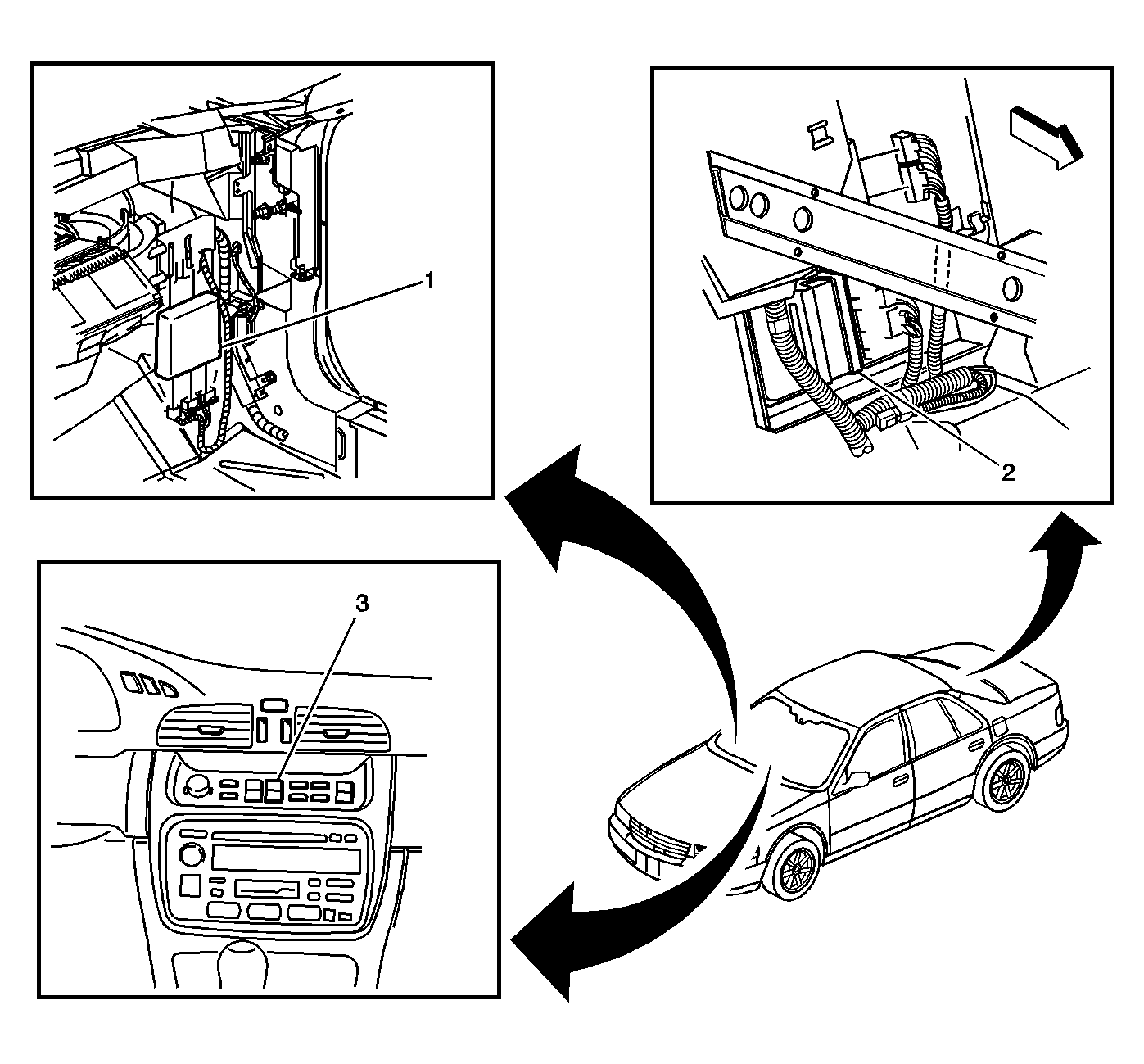

Fig 1: Body Control Module Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash Integration Module (DIM)
2	Rear Integration Module (RIM)
3	Instrument Panel Integration Module (IPM)
