Cellular Communication Component Views

Fig 1: Under the Rear Compartment Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Telephone Module
2	Cellular Telephone Module Connector
3	Cellular Telephone Antenna Lead
4	Cellular Telephone Interface Board

Fig 2: Rear Compartment, Below the Package Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Global Positioning Satellite (GPS) Antenna

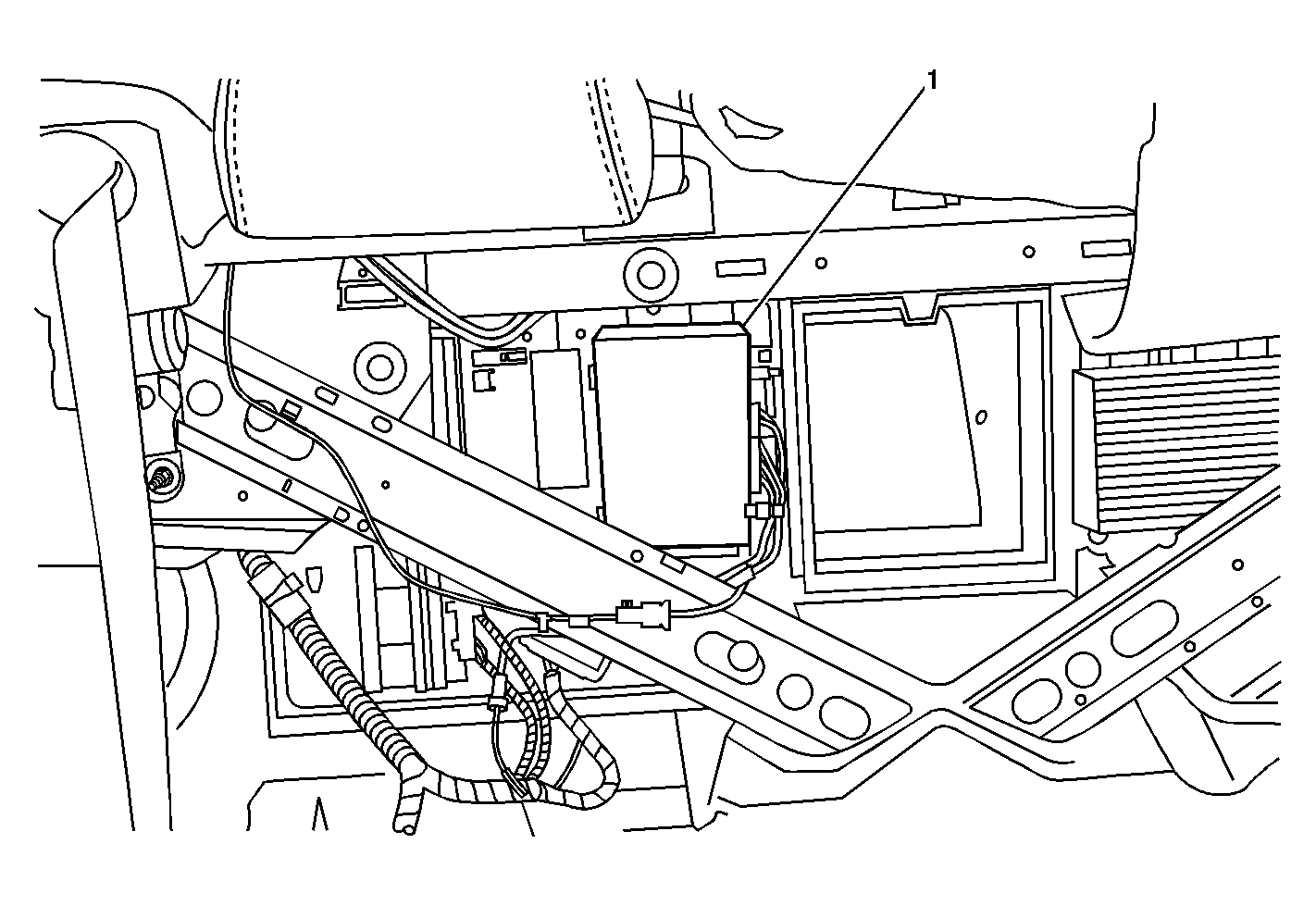

Fig 3: Behind Rear Seat Back Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)

Fig 4: Passenger Compartment, Upper Right Corner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Onstar Cellular Antenna/Rear Window Defogger Grid Ground Connector
2	G304
