Navigation System Component Views

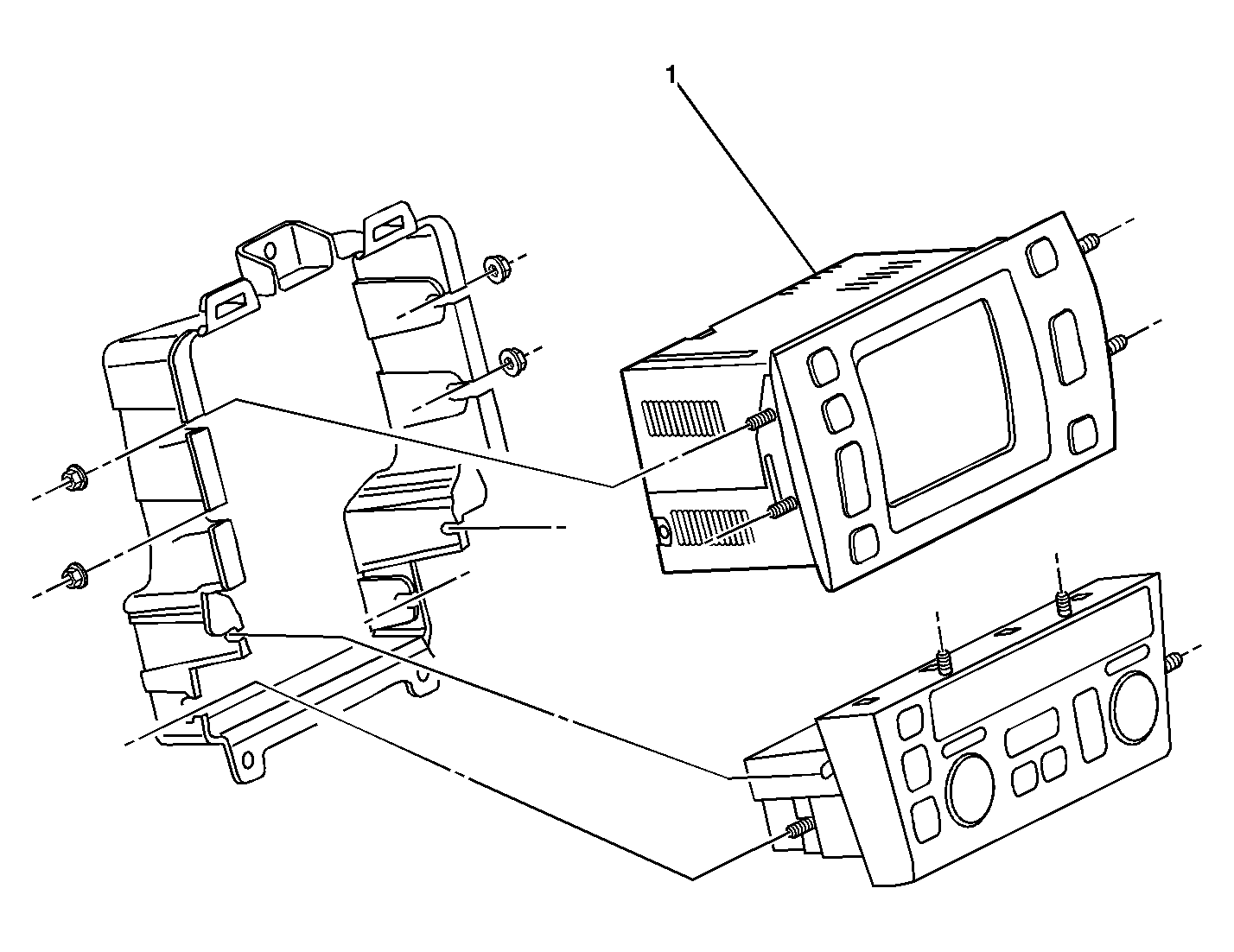

Fig 1: Center of the Instrument Panel Component View
GM747885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio (w/ U3R, U3S, U3Q)
