Wiper/Washer System Component Views

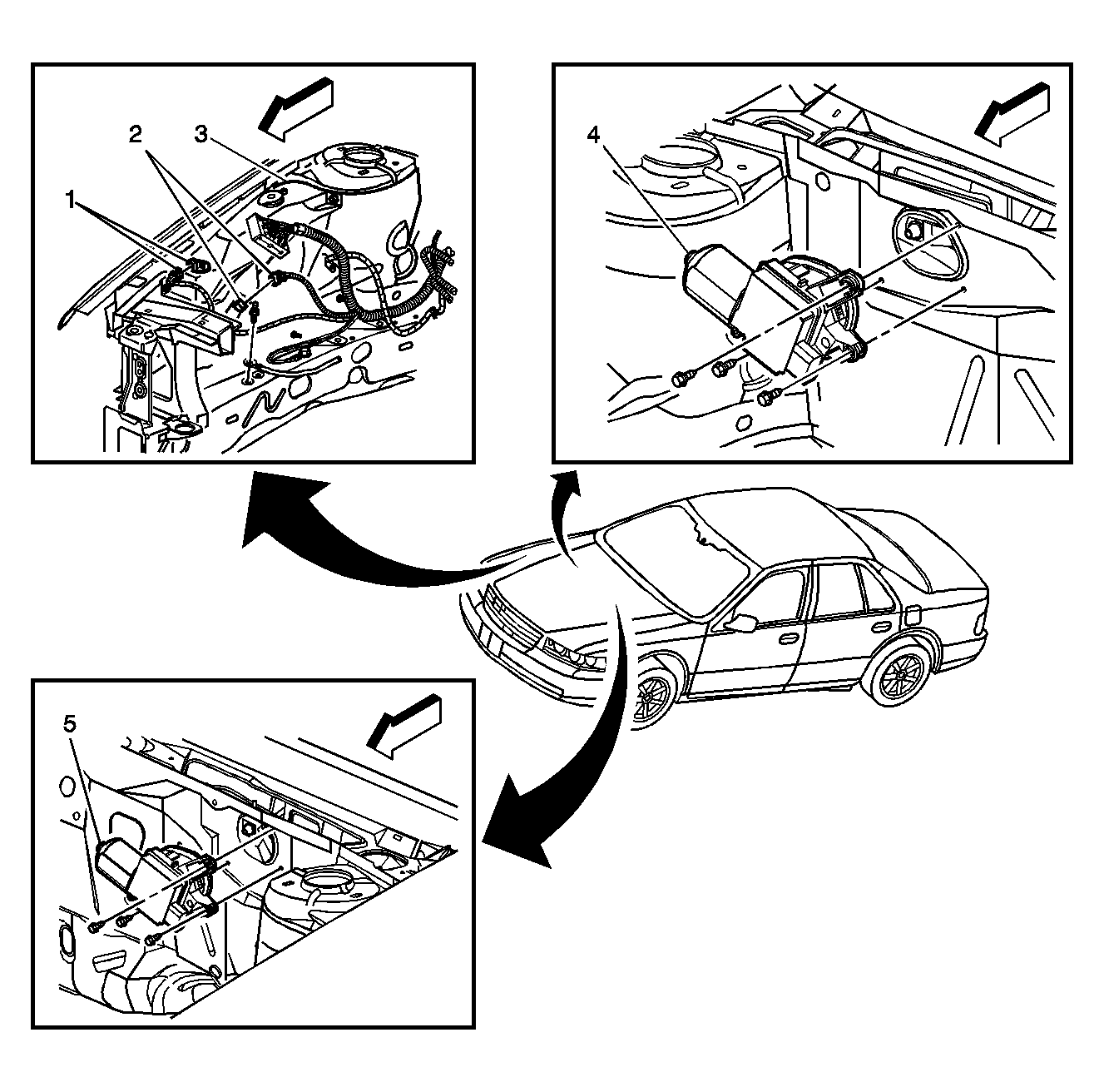

Fig 1: Wiper Washer System Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch and Connector
2	Windshield Washer Fluid Pump and Connector
3	Windshield Washer Reservoir
4	Windshield Wiper Motor (LH Drive)
5	Windshield Wiper Motor (RH Drive)

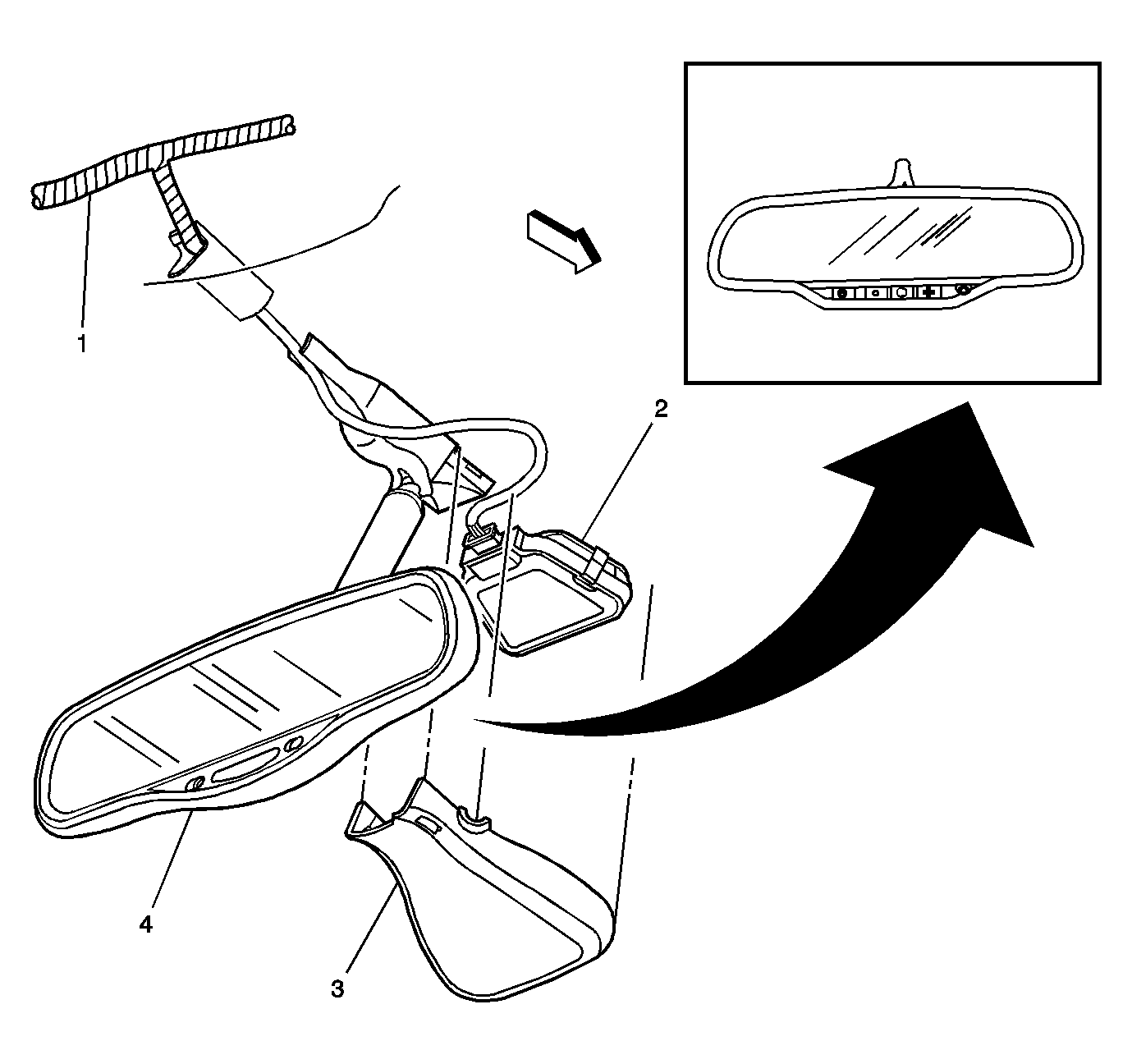

Fig 2: Passenger Compartment, Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S309
2	Outside Moisture Sensor
3	Outside Moisture Sensor Cover
4	Inside Rearview Mirror
