Wiper/Washer System Connector End Views

Headlamp Washer Fluid Level Switch (Export) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162194 2-Way F Metri-Pack 150.2 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	250	Ground
B	BLK/WHT	99	Windshield Washer Fluid Level Signal

Headlamp Washer Fluid Pump (Export) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052613 2-Way F Metri-Pack 480 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	250	Ground
B	RED	228	Windshield Washer Pump Control

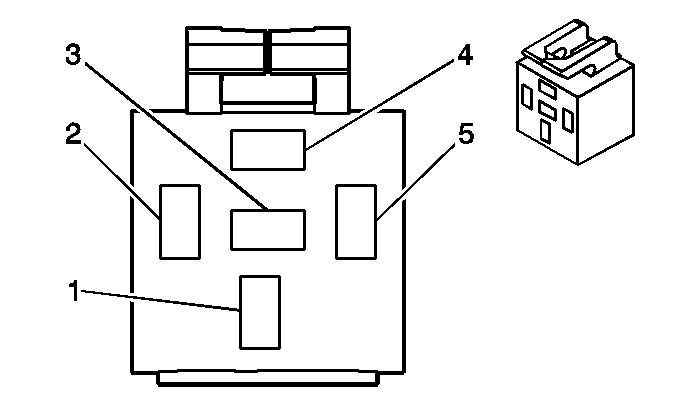

Headlamp Washer Fluid Pump Relay (Export) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065662 5-Way F Metri-Pack 630 Series Sealed P2S (BLK)
Pin	Wire Color	Circuit No.	Function
1	RED	228	Windshield Washer Pump Control
2	GRY	2536	Headlamp Washer Fluid Pump Relay Control
3	BLK/WHT	99	Windshield Washer Fluid Level Signal
4	RED	342	Battery Positive Voltage
5	RED	228	Windshield Washer Pump Control

Outside Moisture Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324252 4-Way F Micro-Pack (BLK)
Pin	Wire Color	Circuit No.	Function
1	LT GRN/BLK	482	Rain Sense Signal 2
2	BLK	481	Rain Sense Signal 1
3	BLK/WHT	851	Ground
4	YEL	43	Accessory Voltage

Windshield Washer Fluid Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162194 2-Way F Metri-Pack 150.2 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1250	Ground
B	BLK/WHT	99	Windshield Washer Fluid Level Signal

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	1250	Ground

Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176335 8-Way F Metri-Pack 280 Series Flex Lock Sealed (NAT)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	YEL	143	Accessory Voltage
C	BLK	150	Ground
D	PPL	92	Windshield Wiper Motor High Speed
E	BLK	481	Outside Moisture Sensor Signal 1
F	LT GRN	482	Outside Moisture Sensor Signal 2
G	GRY	478	Windshield Wiper Switch Signal 2
H	DK BLU	477	Windshield Wiper Switch Signal 1
