Installation Procedure

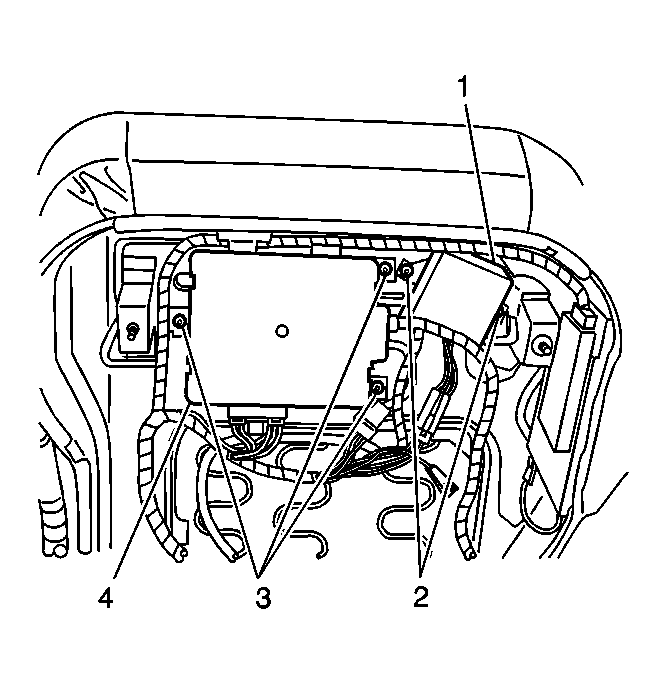

    Fig 1: View of Memory Seat Module Rivets
    GM669304Courtesy of GENERAL MOTORS CORP.
  1. Install the memory seat module (4) to the seat cushion frame.
  2. Install the new rivets (3) to the memory seat module (4) in order to secure the memory seat module to the seat cushion frame.

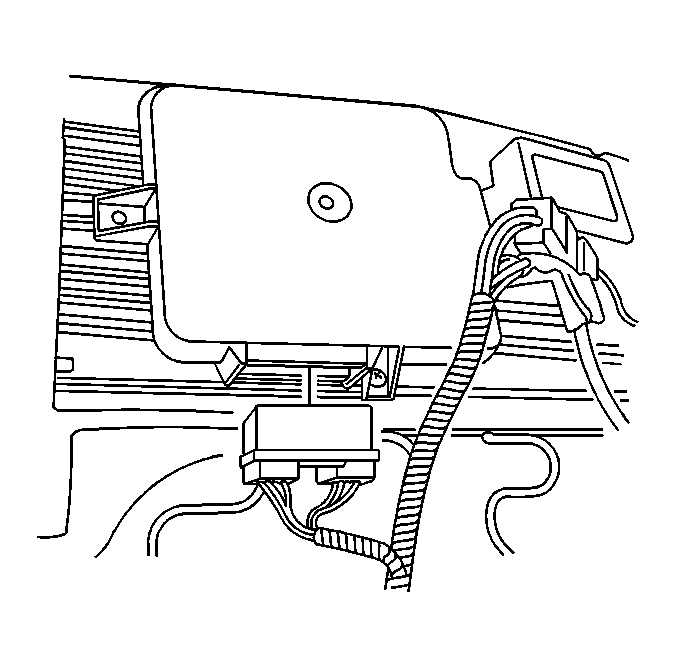

    3. Fig 2: View of Memory Seat Module Electrical Connector
    GM295290Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the memory seat module.
  4. Connect the heated seat cushion cover electrical connectors and the wire hold down clips which were removed during disassembly.

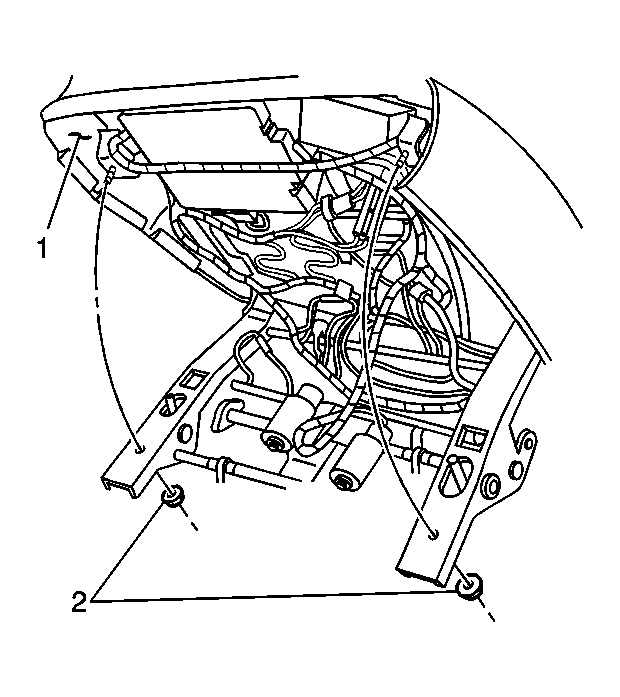

    5. Fig 3: View of Front Seat Cushion & Fasteners
    GM669309Courtesy of GENERAL MOTORS CORP.
  5. Remove the protective cover from the seat riser.
  6. Install the seat cushion assembly (1) to the seat riser.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the fasteners (2) to the seat cushion assembly (1).

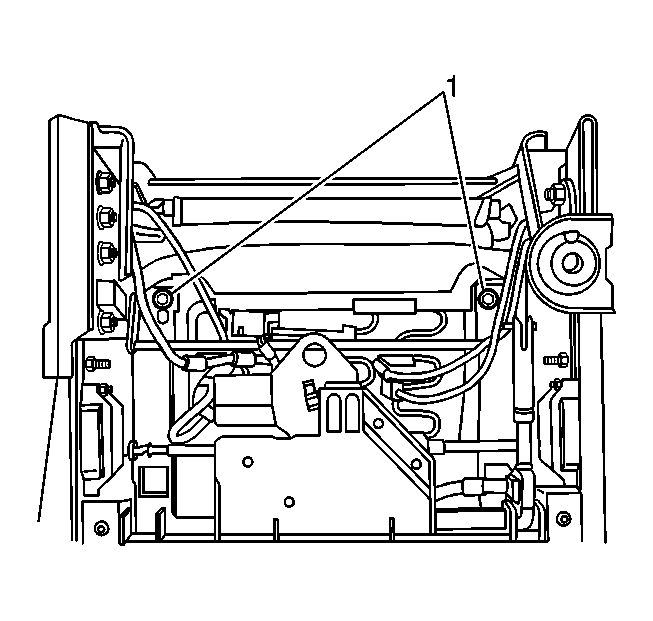

    8. Fig 4: Identifying Front Seat Assembly Fasteners
    GM669311Courtesy of GENERAL MOTORS CORP.
  8. Adjust the front seat assembly up and forward in order to access the fasteners (1) at the rear of the front seat cushion assembly
  9. Install the front seat cushion assembly rear fasteners (1) to the seat cushion assembly.

    Tighten:  Tighten the seat cushion assembly fasteners to 9 N.m (80 lb in).

  10. Angle the front seat cushion up, in order to access the front seat cushion assembly fasteners.

    Tighten:  Tighten the seat cushion assembly fasteners to 9 N.m (80 lb in).

  11. Enable the SIR. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 in SIR.
