Door Control Module Schematics

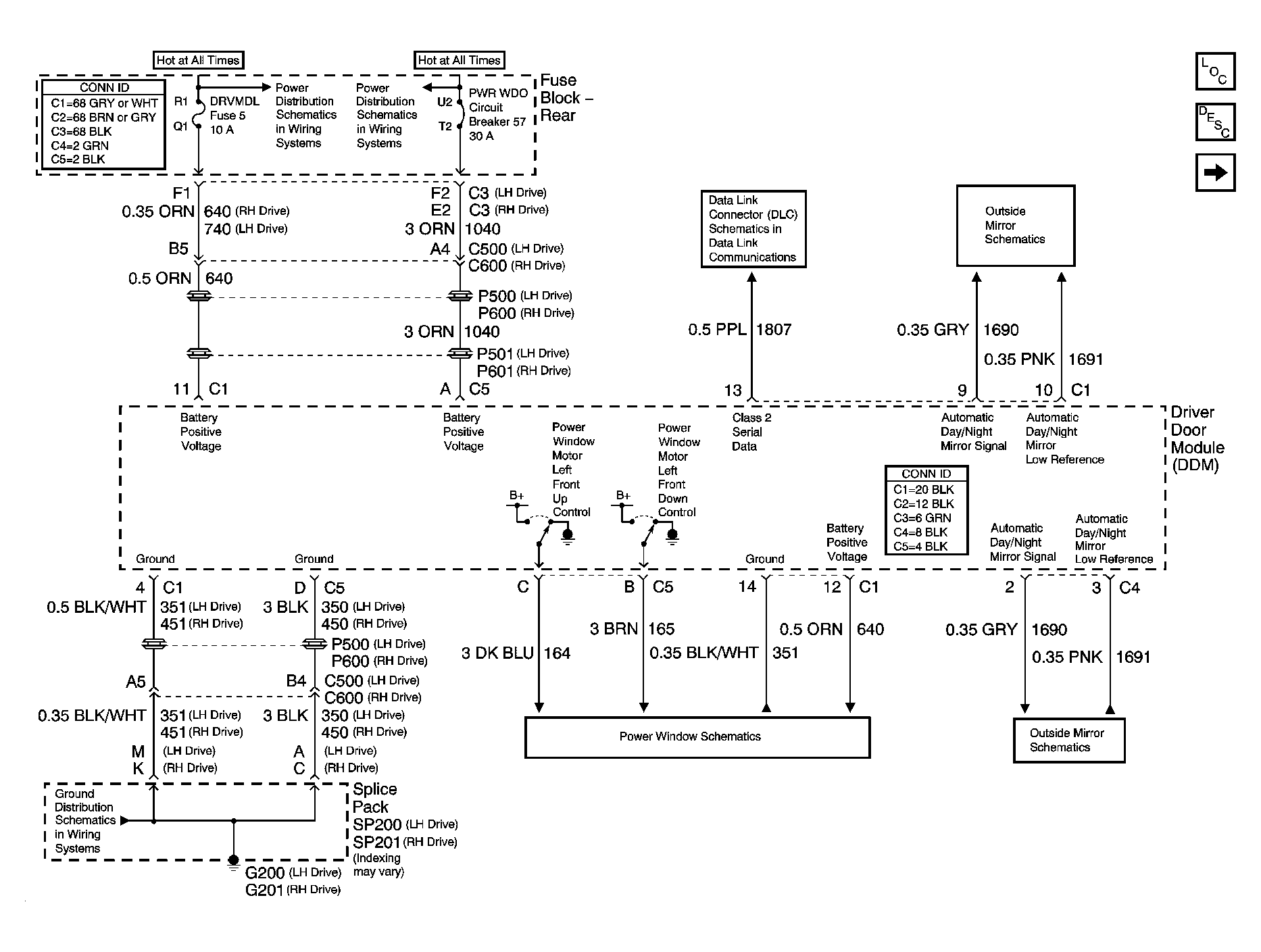

Fig 1: DDM Power, Grounds, Inputs, and Outputs Schematic
GM879920Courtesy of GENERAL MOTORS CORP.

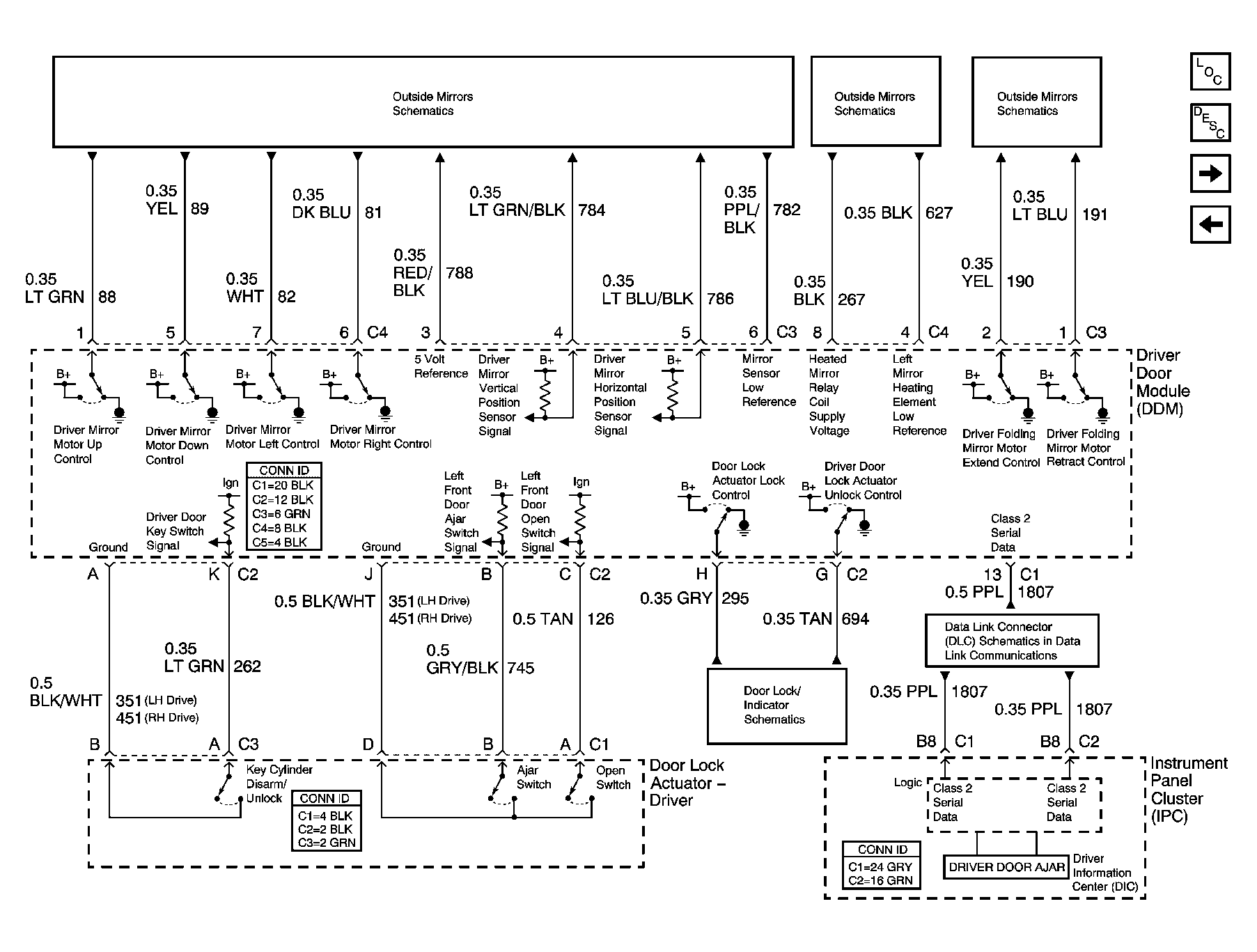

Fig 2: DDM Inputs, Outputs, and Class 2 Schematic
GM783625Courtesy of GENERAL MOTORS CORP.

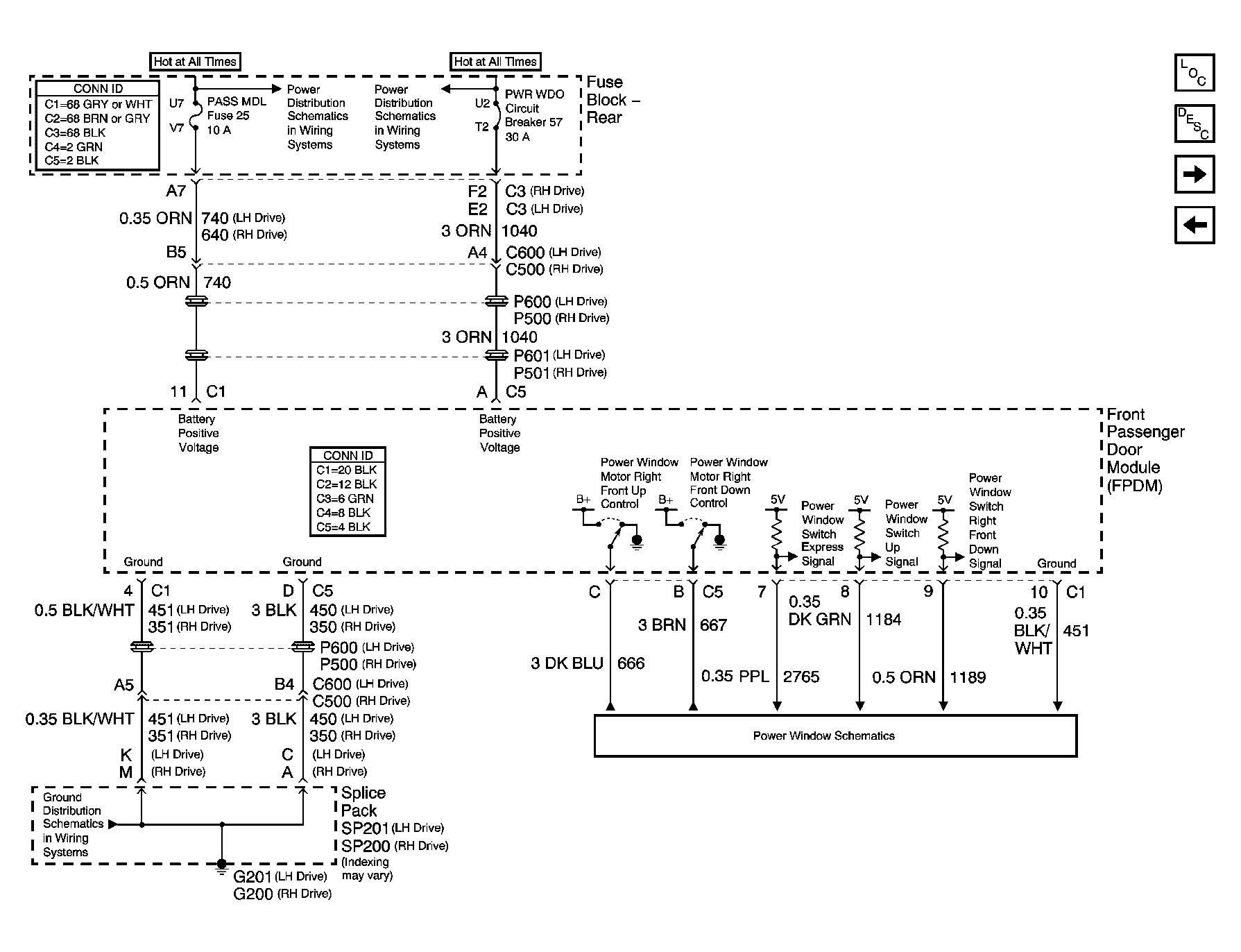

Fig 3: FPDM Power, Grounds, Inputs, and Outputs Schematic
GM879921Courtesy of GENERAL MOTORS CORP.

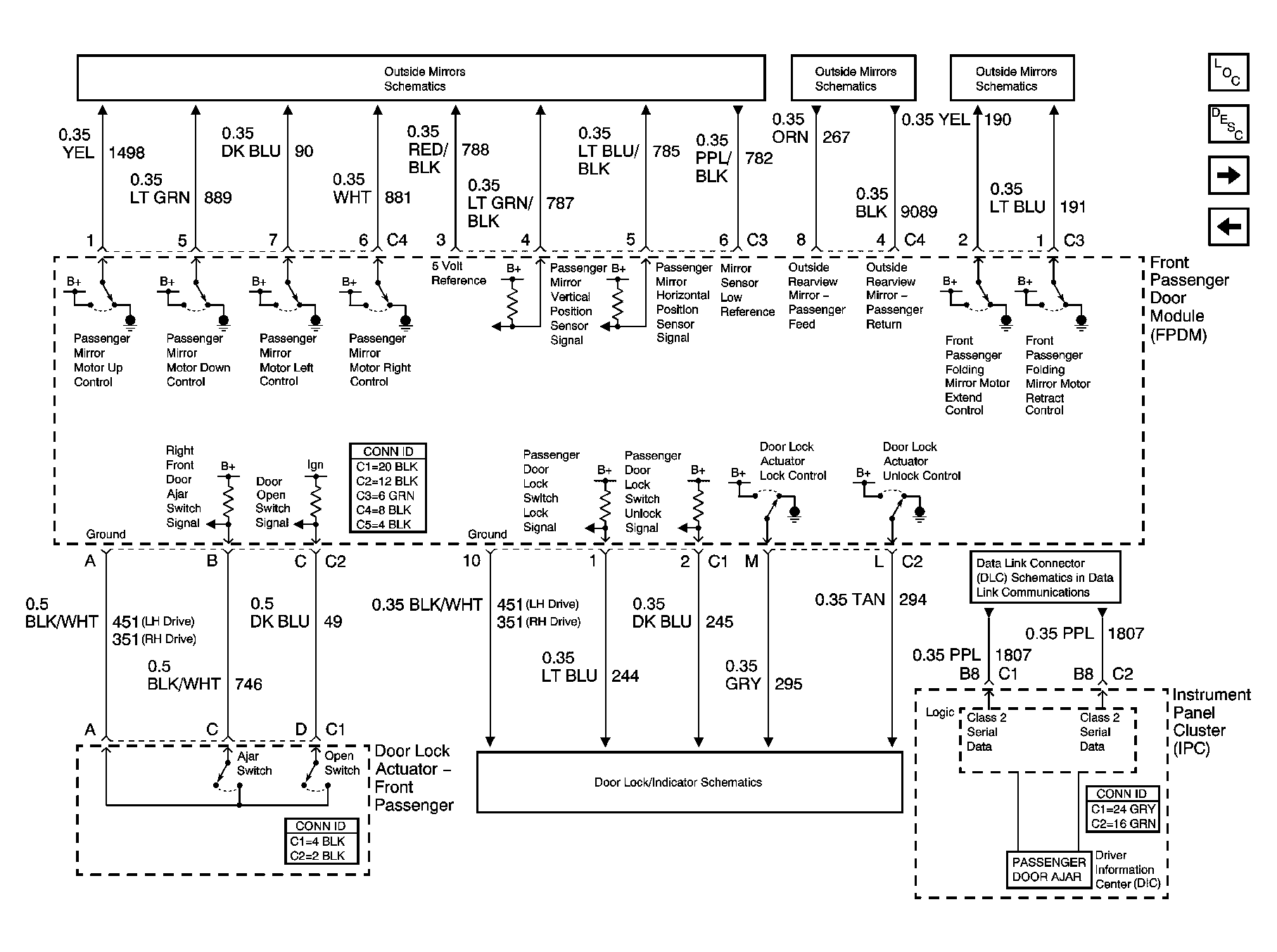

Fig 4: FPDM Inputs, Outputs, and Class 2 Schematic
GM783627Courtesy of GENERAL MOTORS CORP.

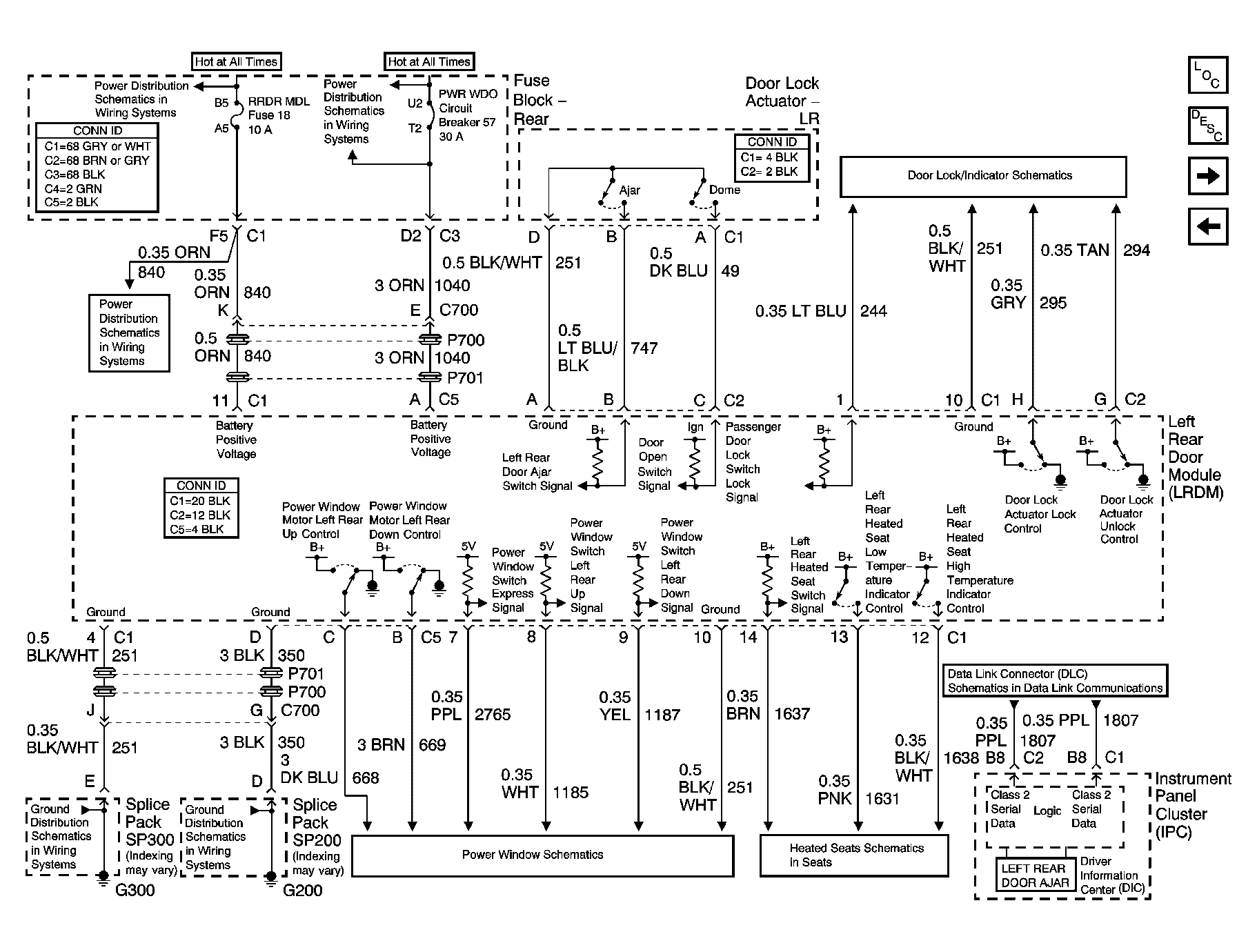

Fig 5: LRDM Power, Ground, Inputs, Outputs, and Class 2 Schematic
GM879923Courtesy of GENERAL MOTORS CORP.

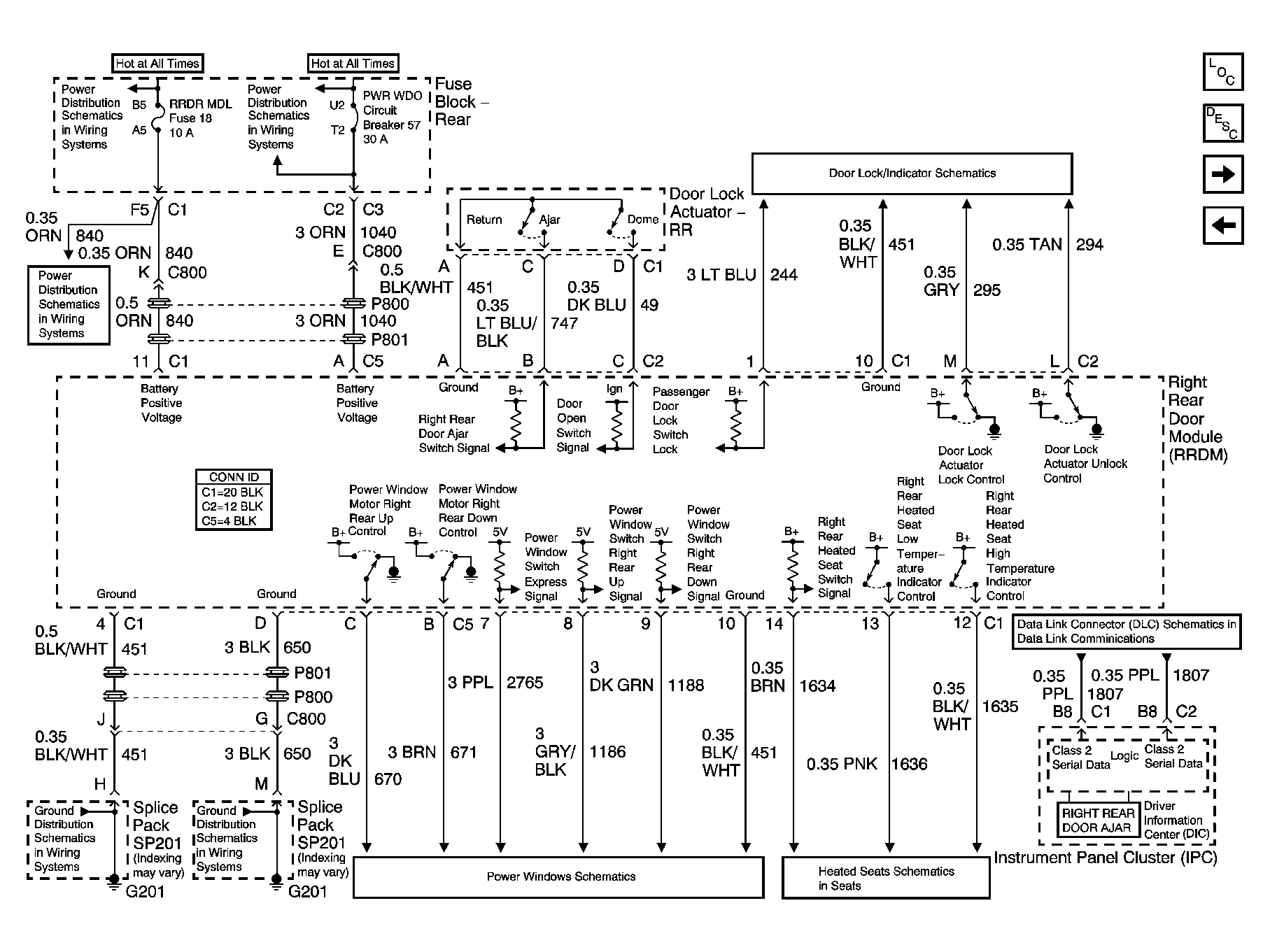

Fig 6: RRDM Power, Ground, Inputs, Outputs, and Class 2 Schematic
GM879924Courtesy of GENERAL MOTORS CORP.

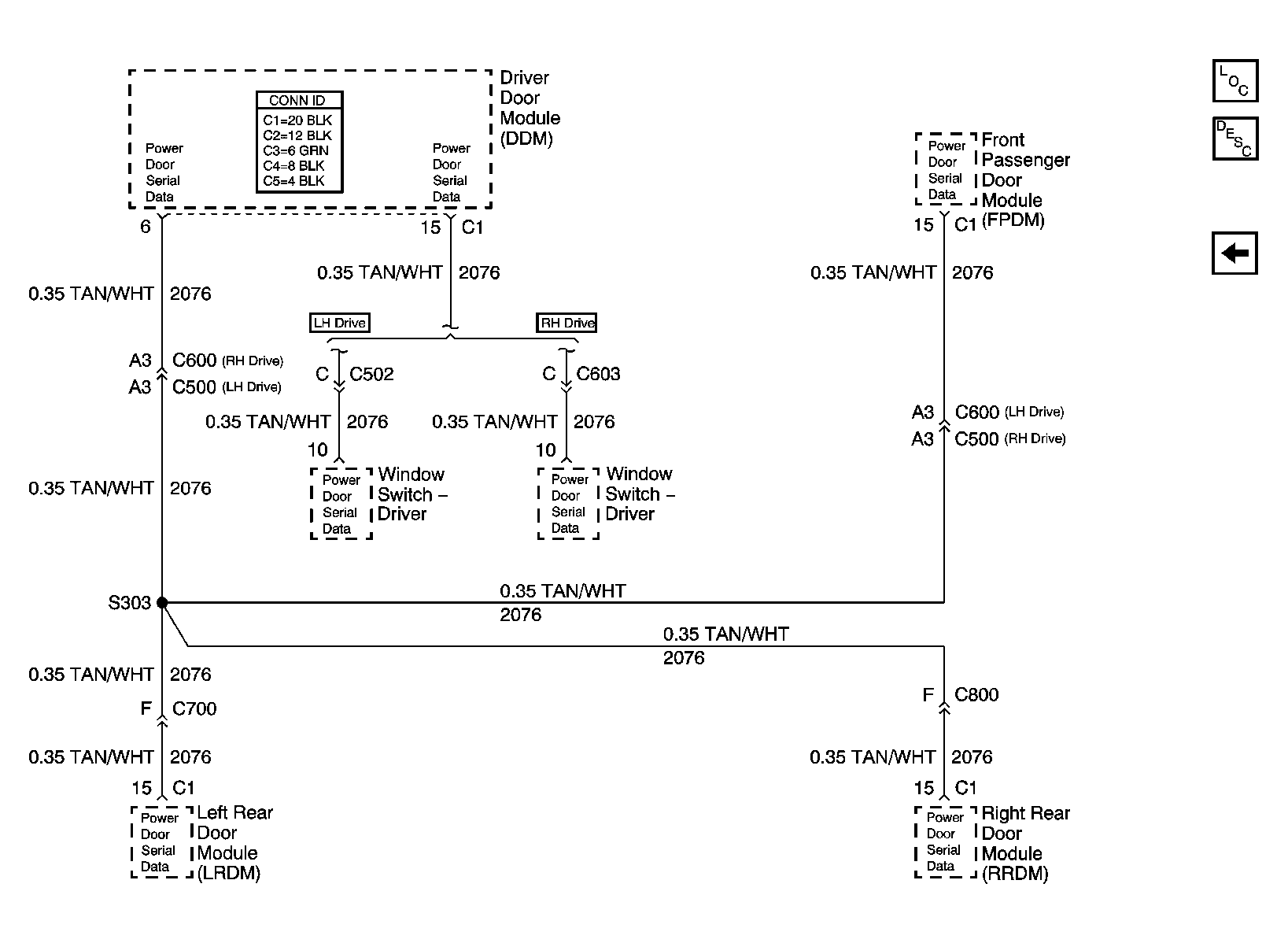

Fig 7: Power Door Serial Data Schematic
GM642190Courtesy of GENERAL MOTORS CORP.
