Power and Grounding Component Views

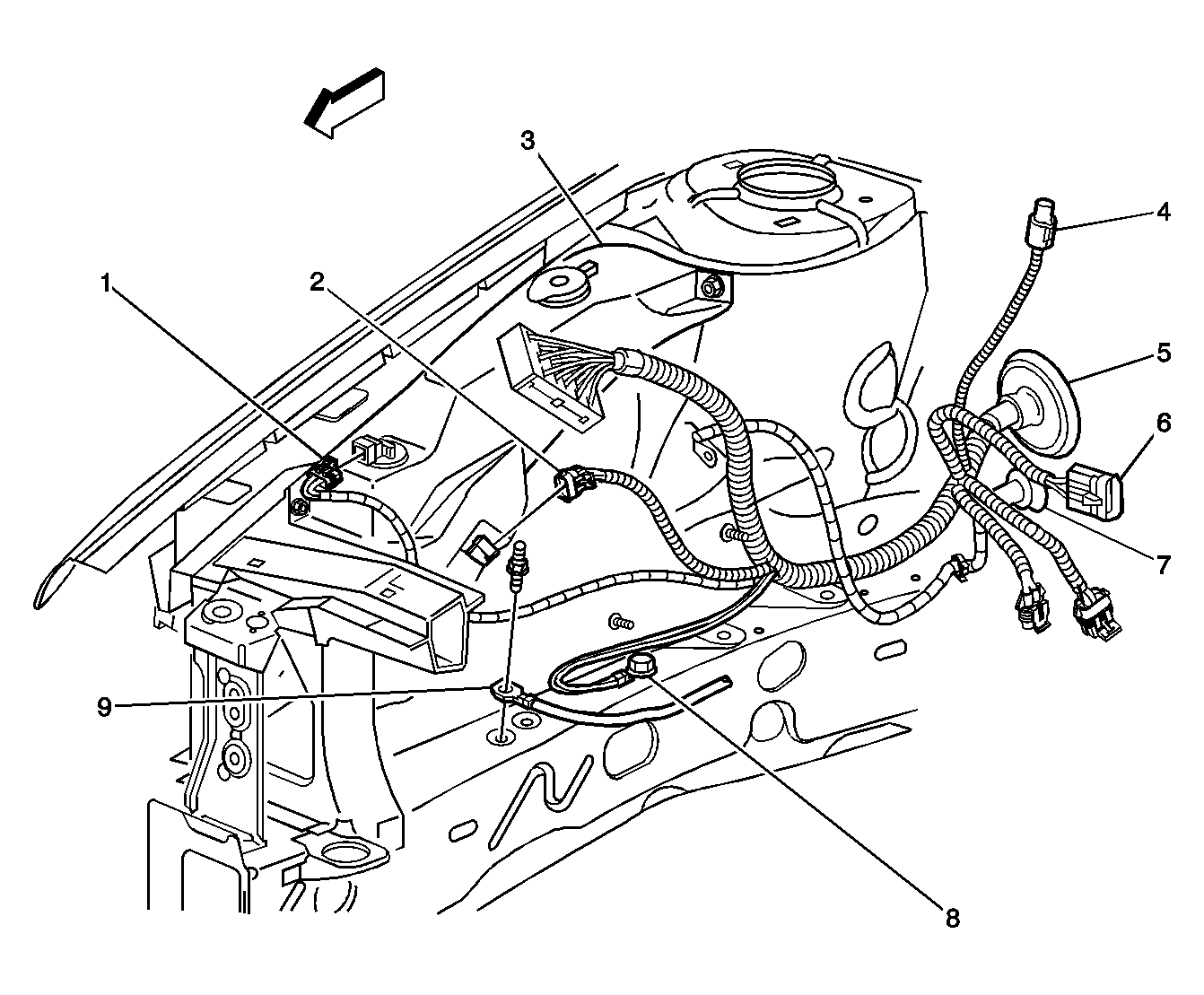

Fig 1: Engine Compartment, in the Right Front Corner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Fluid Pump
3	Windshield Washer Fluid Reservoir
4	A/C Refrigerant Pressure Sensor
5	P104
6	C106
7	P100
8	G105
9	G104

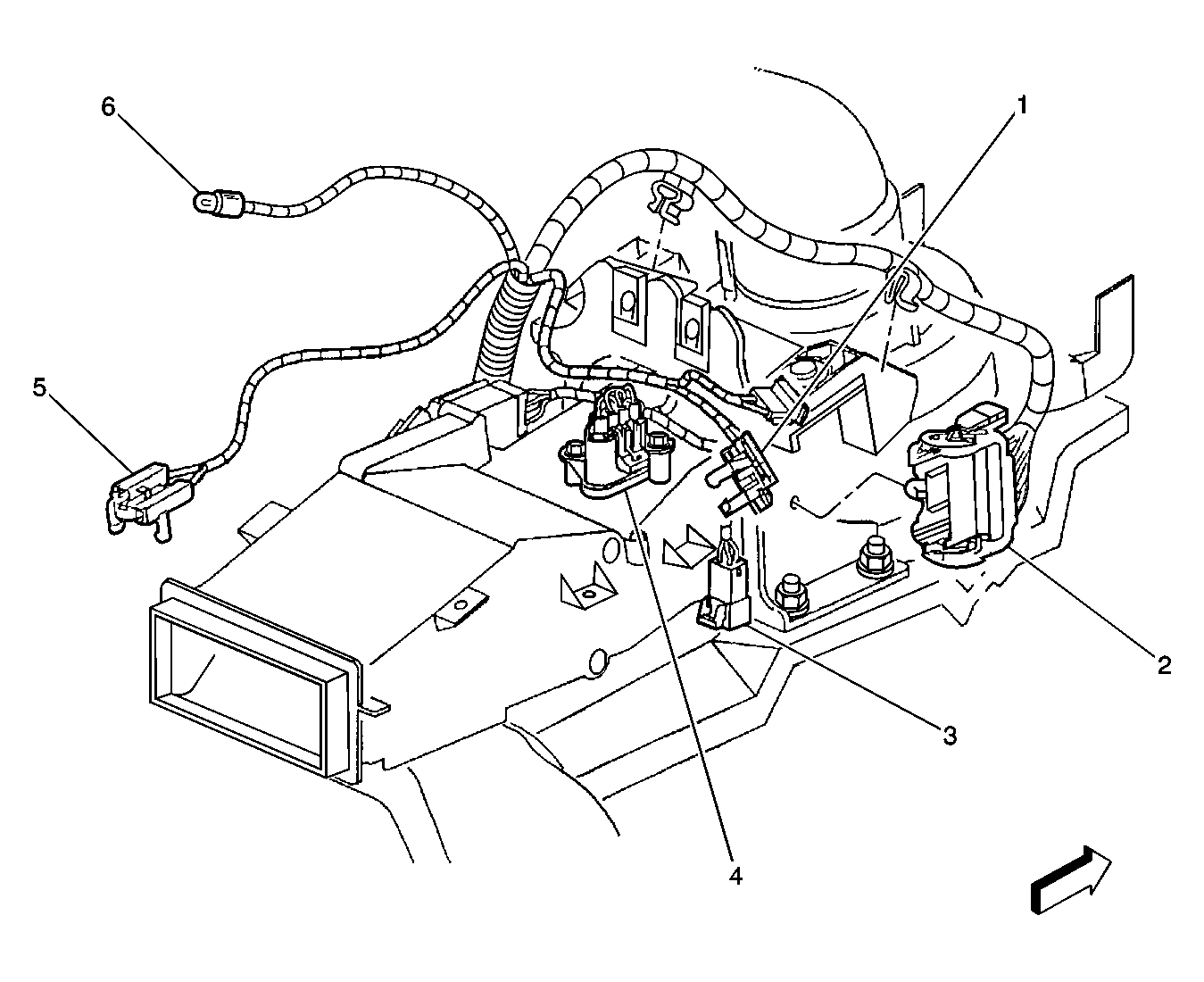

Fig 2: Passenger Compartment, Below the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet
2	C304
3	C312
4	Blower Motor Resistor Assembly - Auxiliary
5	Cigar Lighter
6	Ashtray Lamp

Fig 3: Passenger Compartment, Below the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet
2	C304
3	C312
4	Blower Motor Resistor Assembly - Auxiliary
5	Cigar Lighter
6	Ashtray Lamp

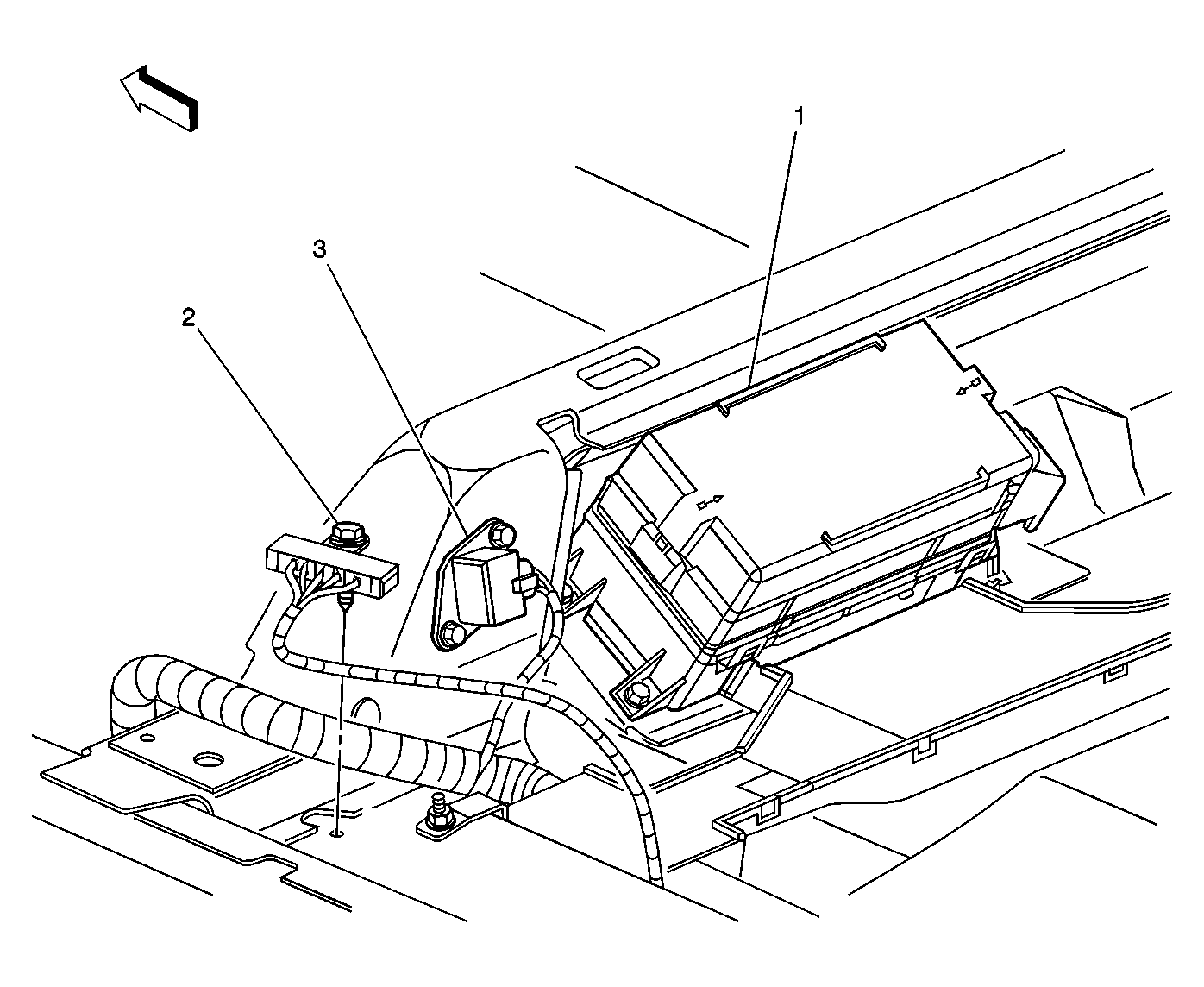

Fig 4: Passenger Compartment, Under the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Rear
2	G301
3	Lateral Accelerometer Sensor

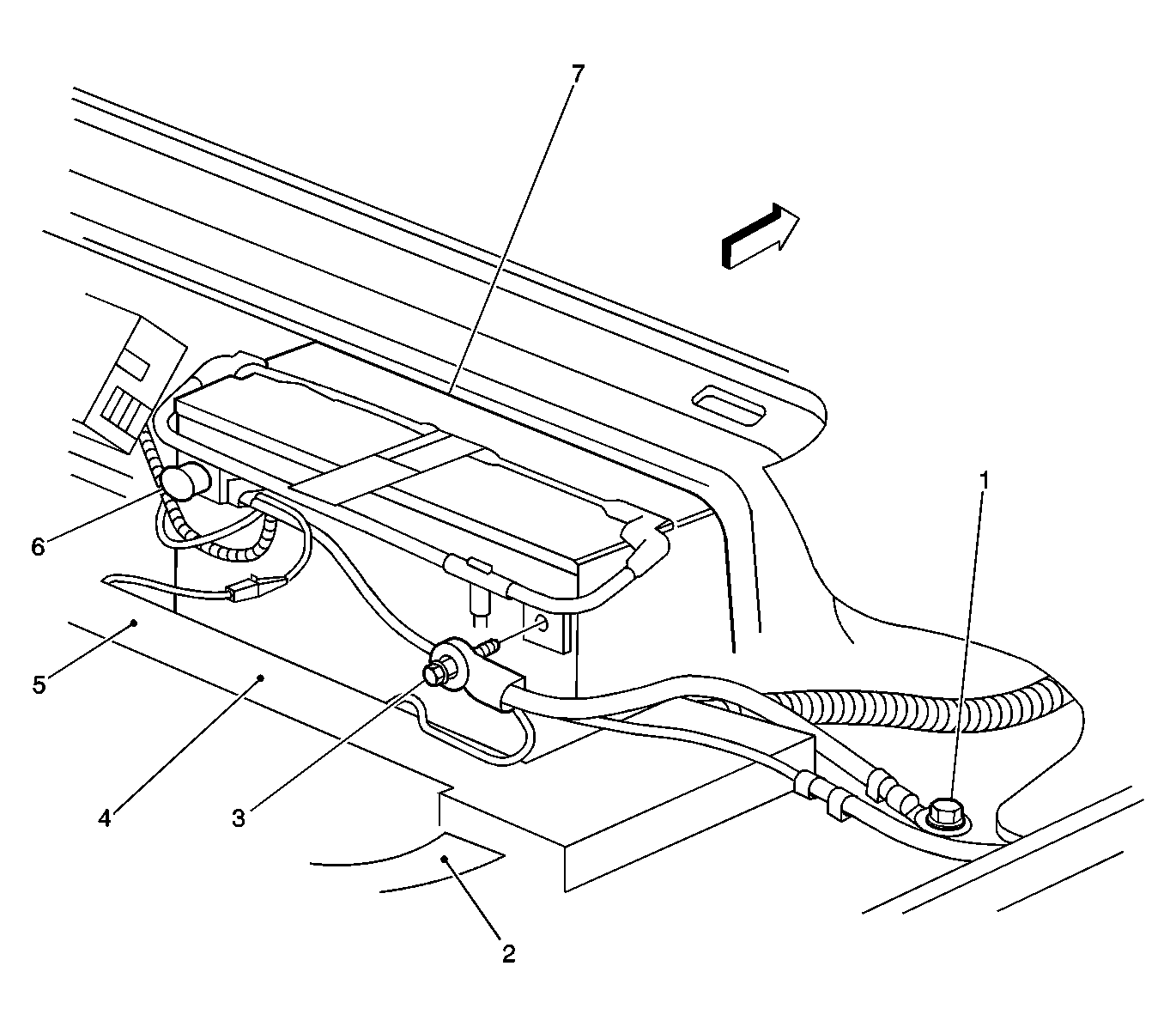

Fig 5: Passenger Compartment, Under the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G307
2	S305
3	Negative Battery Cable
4	S306
5	S307
6	Positive Battery Cable
7	Battery

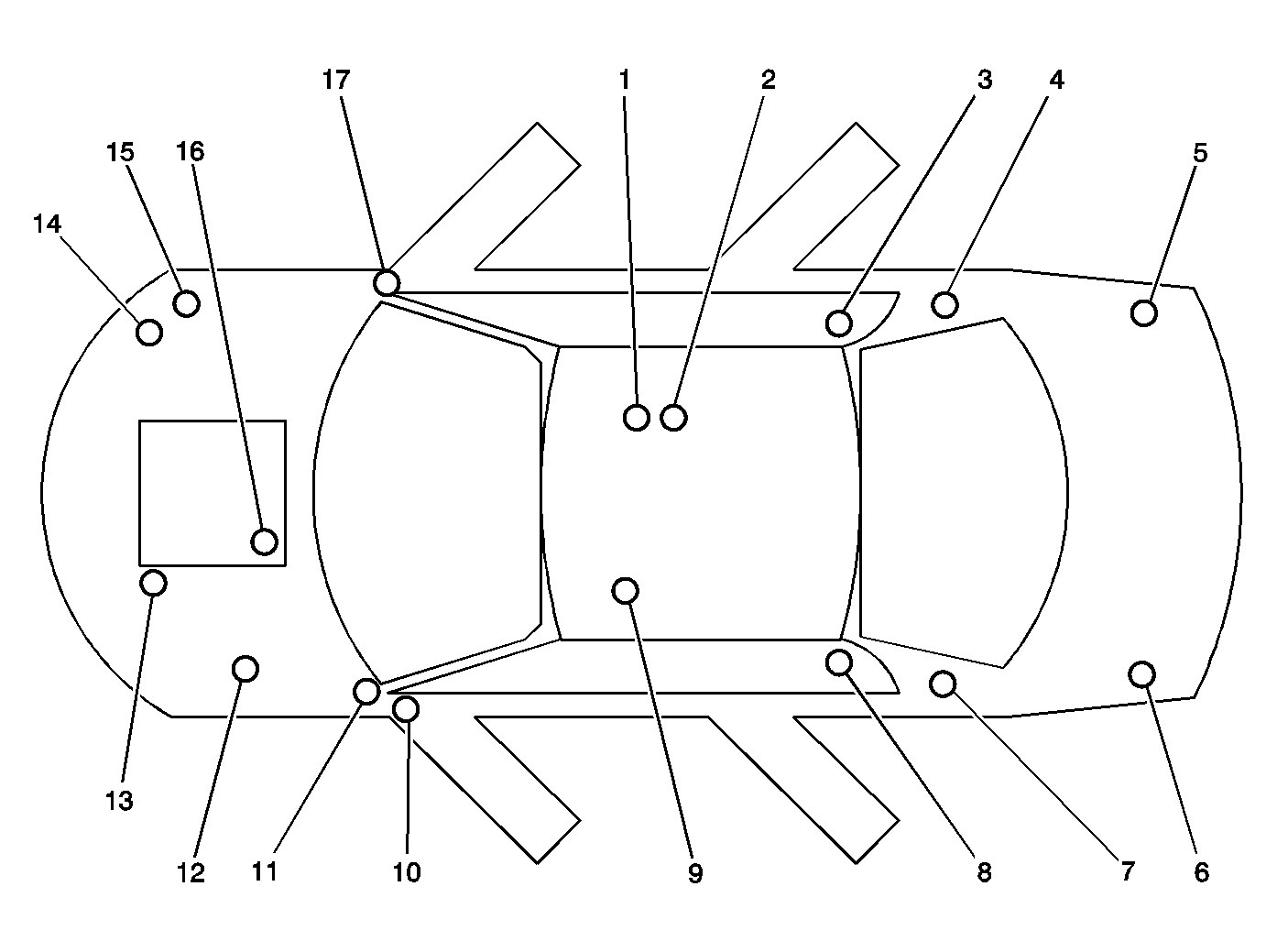

Fig 6: Ground Locations Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G302
2	G306
3	G307
4	G304
5	G401
6	G402
7	G303
8	G301
9	G300
10	G200
11	G202
12	G101
13	G106, G109, G110
14	G104
15	G105
16	G108
17	G201

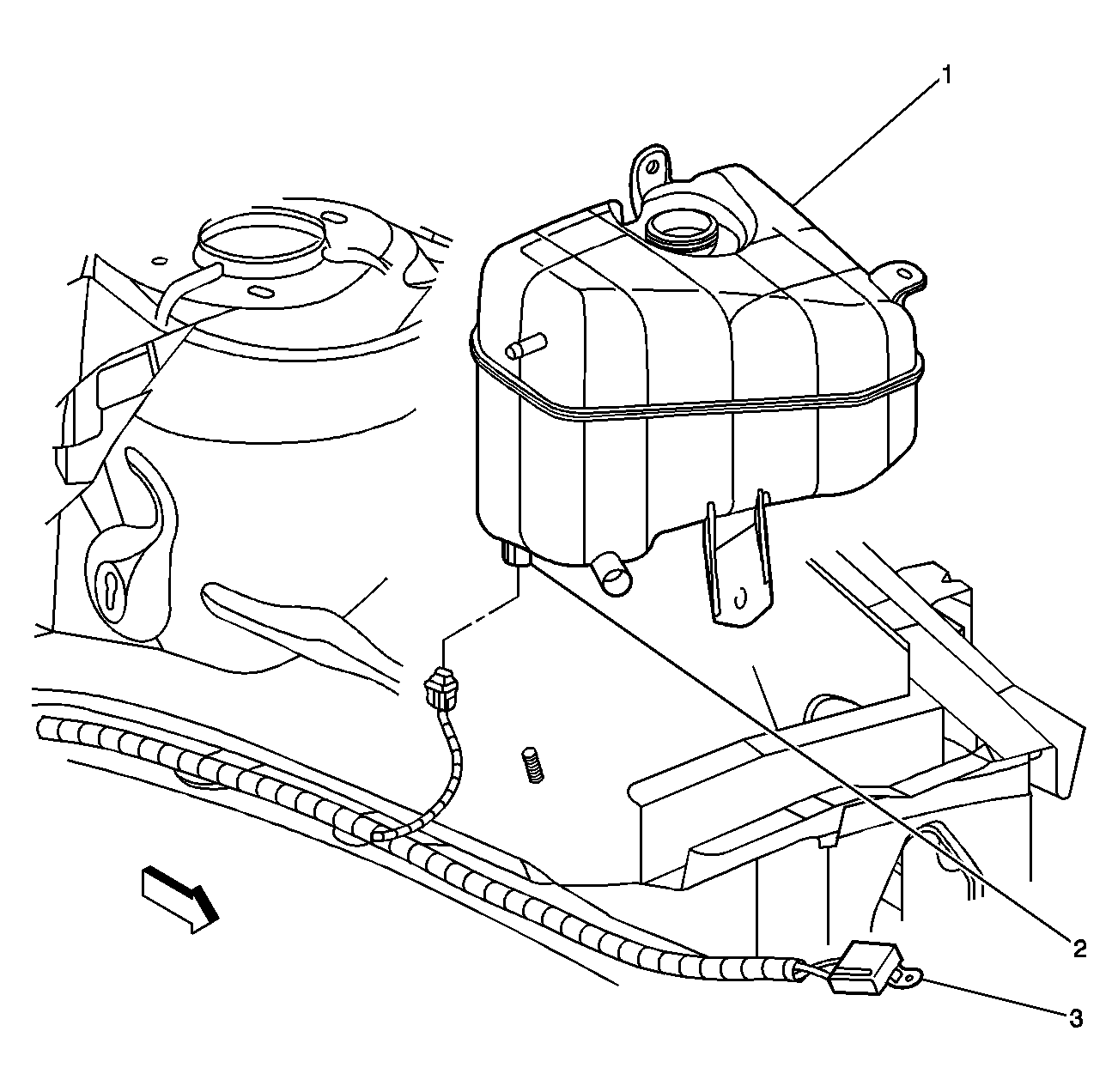

Fig 7: Engine Compartment, in the Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Reservoir
2	Coolant Level Switch
3	G101

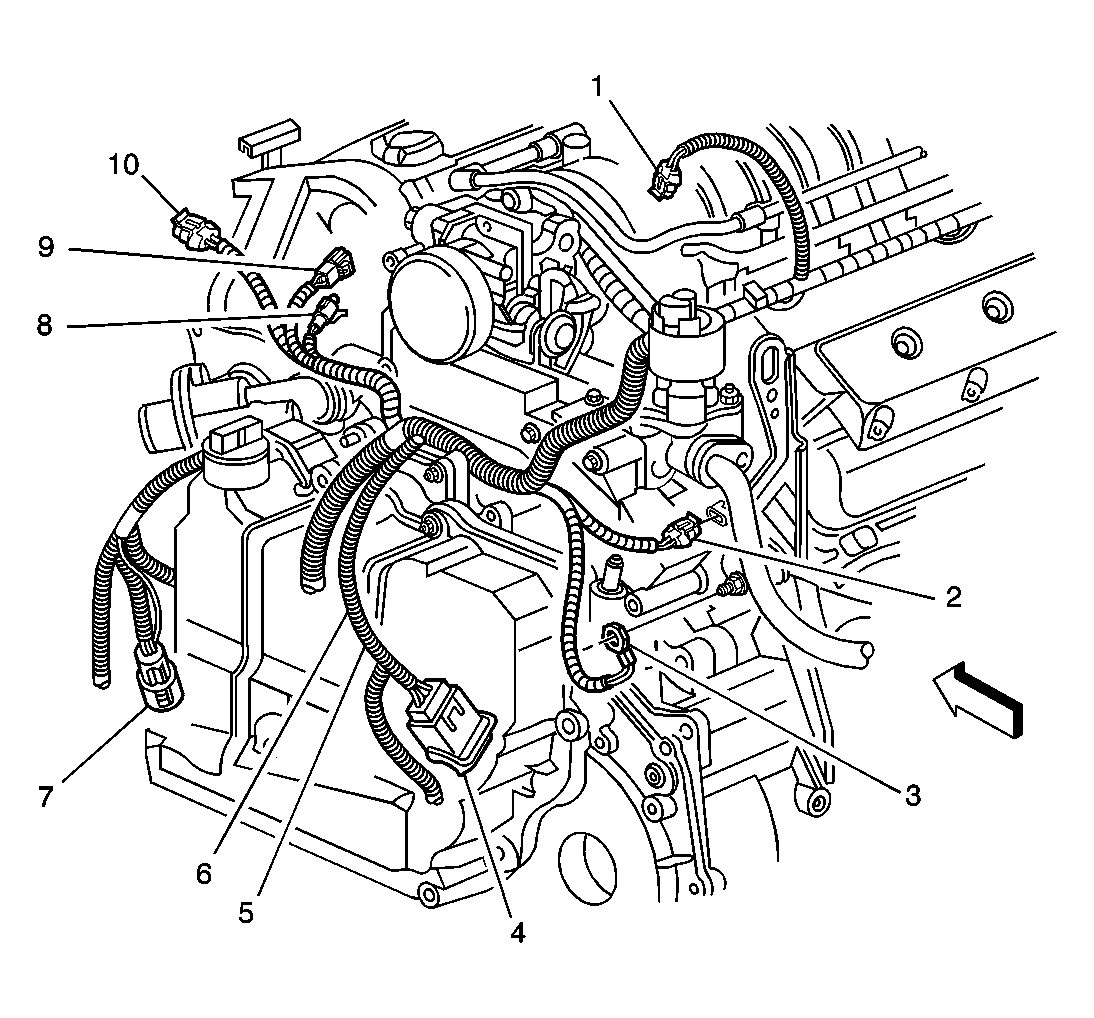

Fig 8: Engine, on the Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Gas Recirculation (EGR) Valve
2	Engine Coolant Temperature (ECT) Sensor
3	G108
4	C101
5	S117
6	S120
7	C100
8	Throttle Position (TP) Sensor
9	Idle Air Control (IAC) Sensor
10	Manifold Absolute Pressure (MAP) Sensor

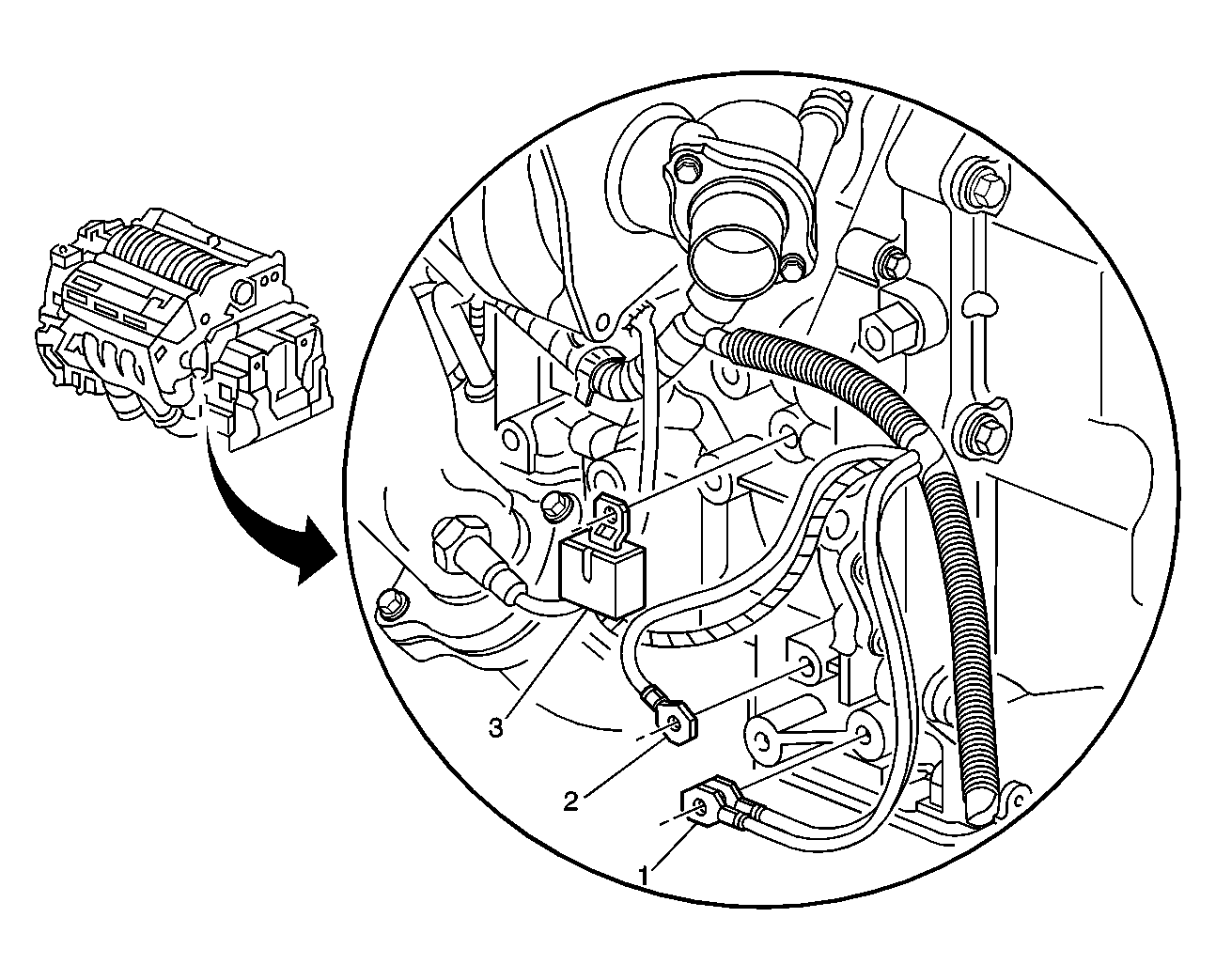

Fig 9: Engine, on the Left, Front Bottom Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G109
2	G110
3	G106

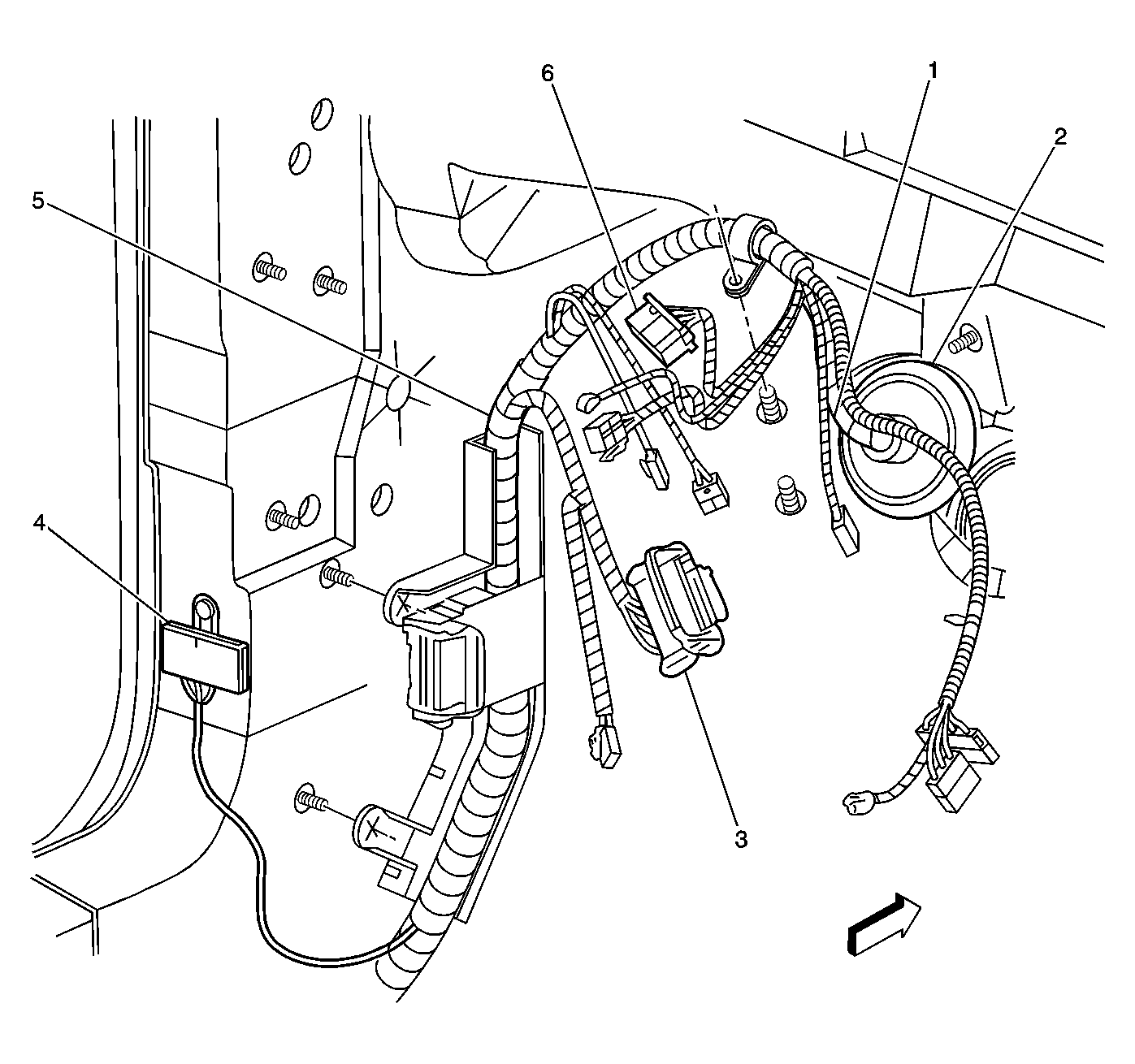

Fig 10: Passenger Compartment, Below the Left Side of the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S201
2	P101
3	C200
4	G200
5	S200
6	C202

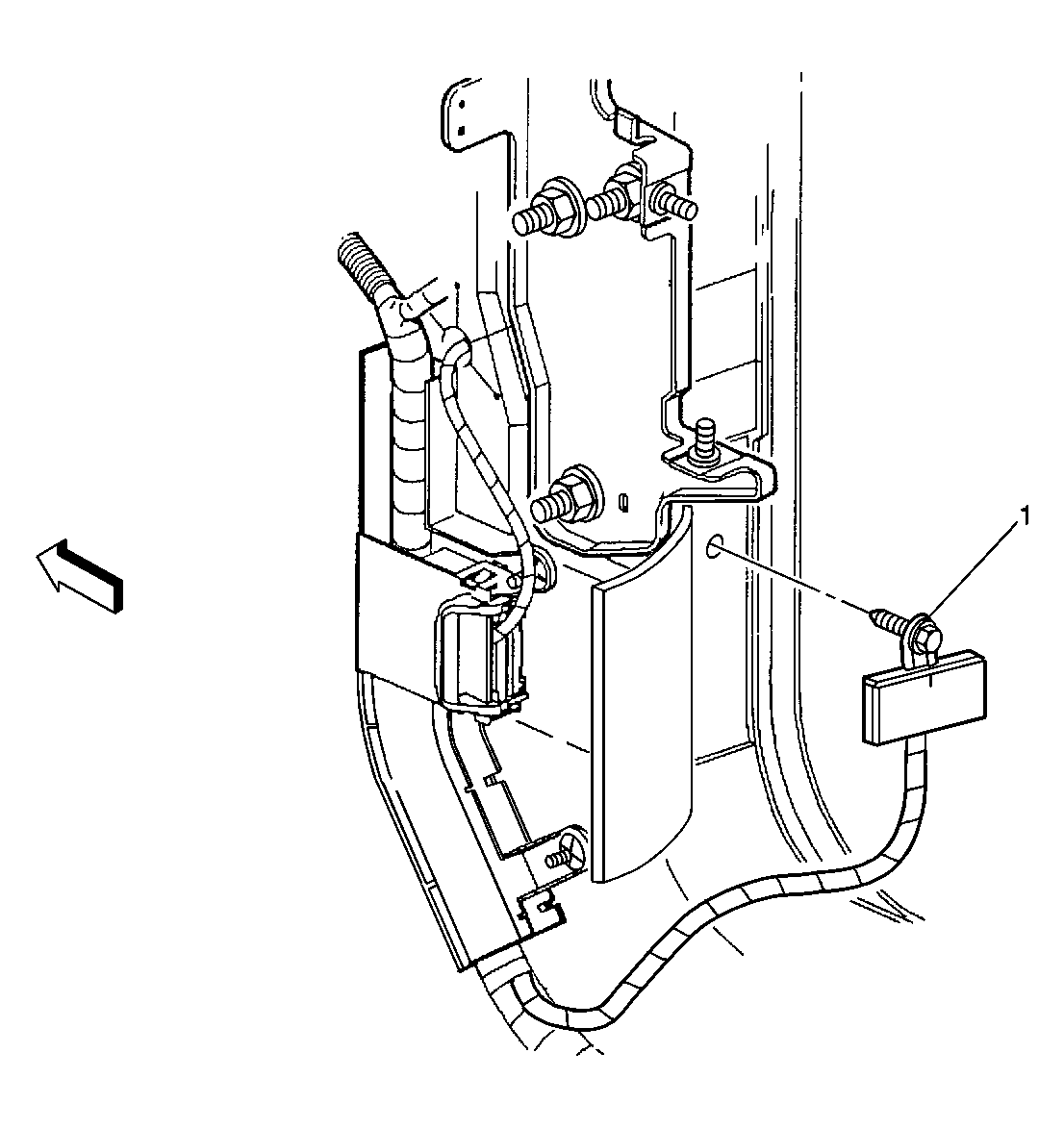

Fig 11: Passenger Compartment, Below the Right Side of the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G201

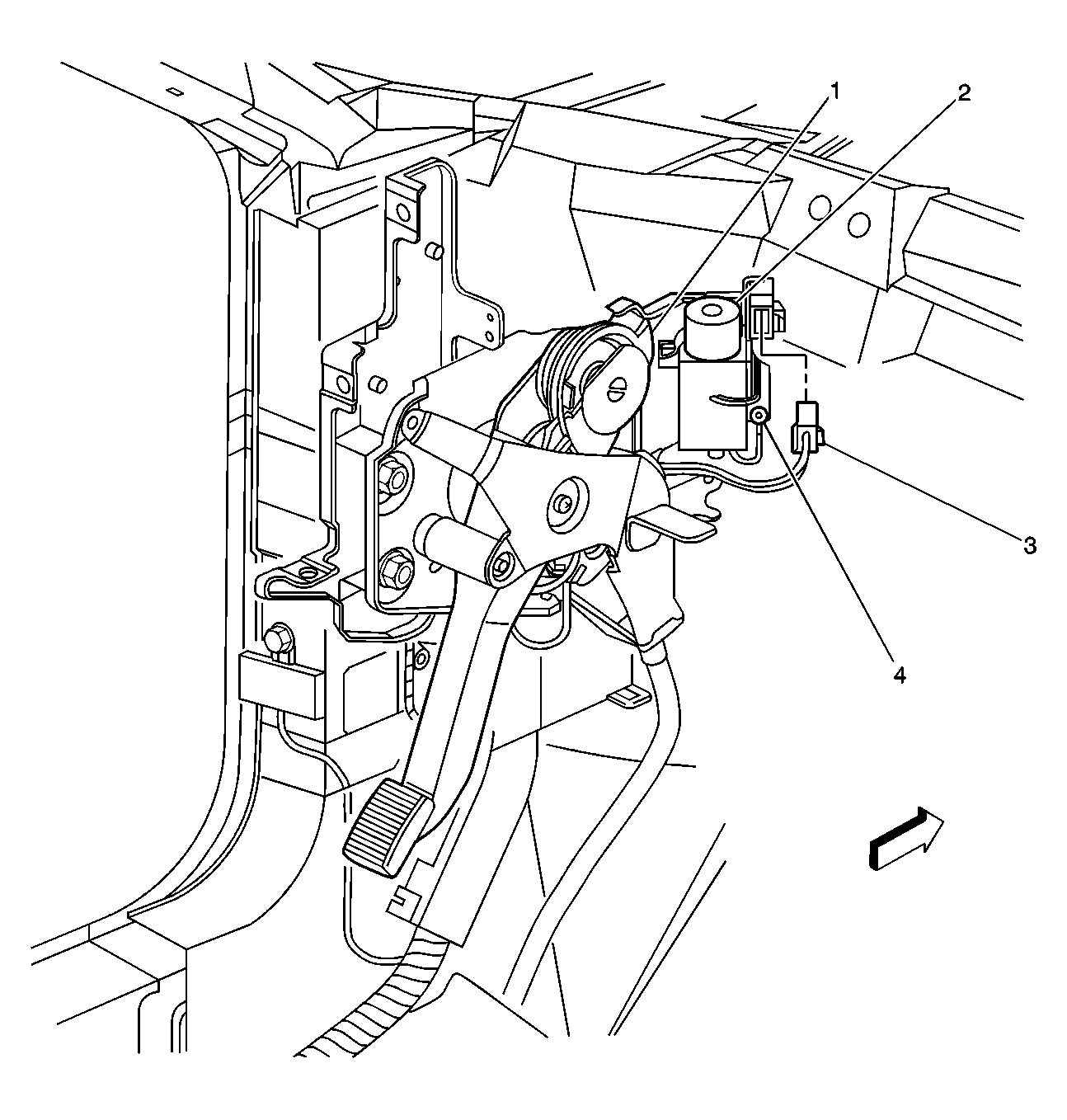

Fig 12: Passenger Compartment, Under the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake
2	Park Brake Release Solenoid
3	Park Brake Release Solenoid Connector
4	G202

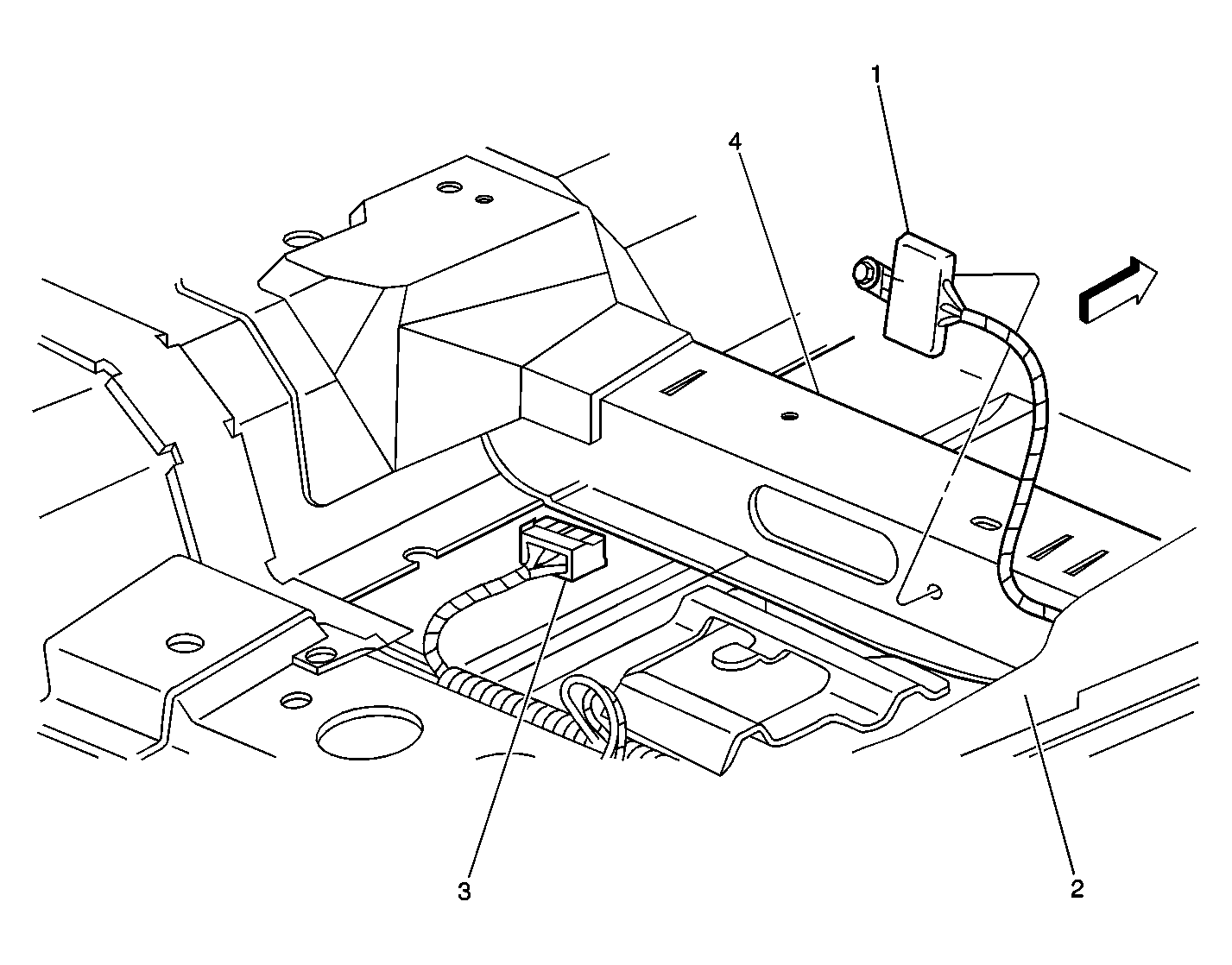

Fig 13: Passenger Compartment, Under the Left Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G300
2	Number 2 Bar
3	SP302
4	SP301

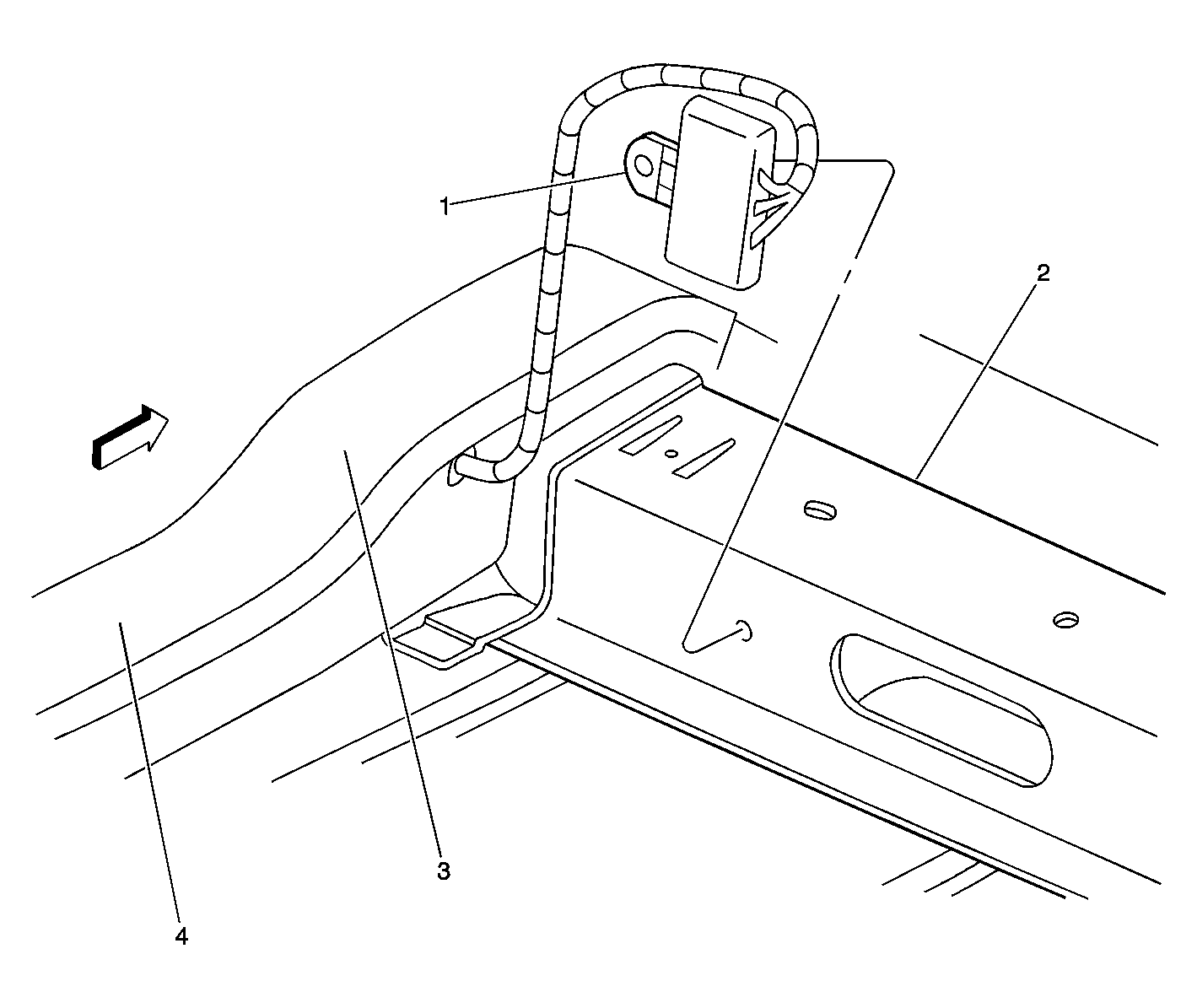

Fig 14: Passenger Compartment, Under the Right Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G302
2	SP308
3	C307
4	Number 2 Bar

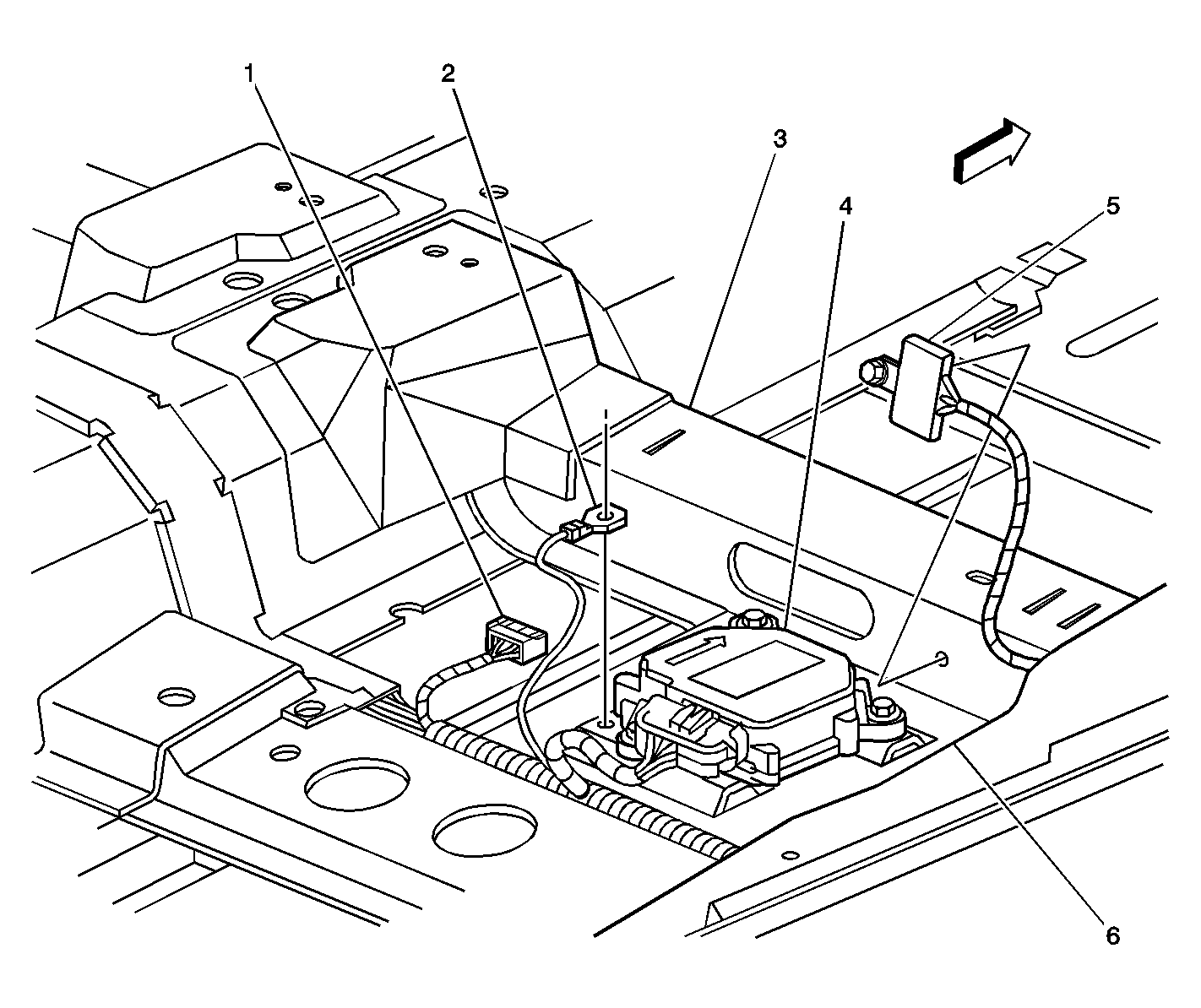

Fig 15: Passenger Compartment, Under the Right Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C307
2	G306
3	Number 2 Bar
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	G302
6	Cover over SP308

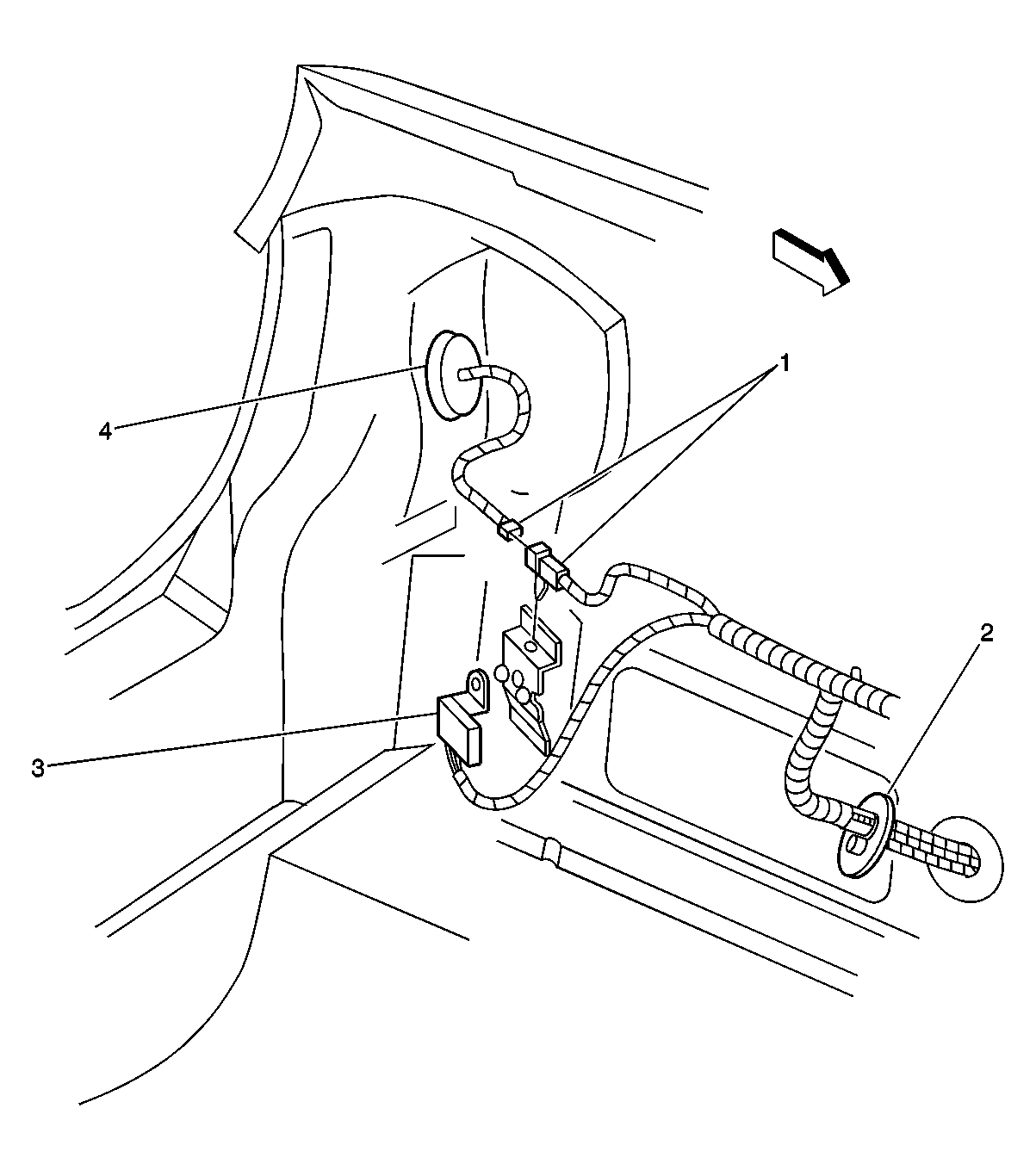

Fig 16: RCDLR, Rear Comp Lamp, C403, G401, and P400 Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C403
2	G401
3	P400
4	Rear Compartment Lamp
5	Remote Control Door Lock Receiver (RCDLR)

Fig 17: Rear Compartment, in the Left Rear Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C400
2	P401
3	G402
4	P402
