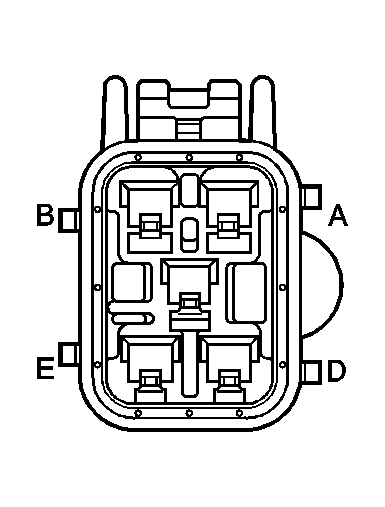

Electronic Suspension Control (ESC) Module C3 Connector End View
Electronic Suspension Control (ESC) Module C3 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12146741
- 5-Way F Metri-Pack 280 Series (NAT)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
- |
- |
Not Used |
| B |
ORN |
2340 |
Battery Positive Voltage |
| C |
BRN |
41 |
Ignition 3 Voltage |
| D |
BLK |
1050 |
Ground |
| E |
- |
- |
Not Used |
