Installation Procedure

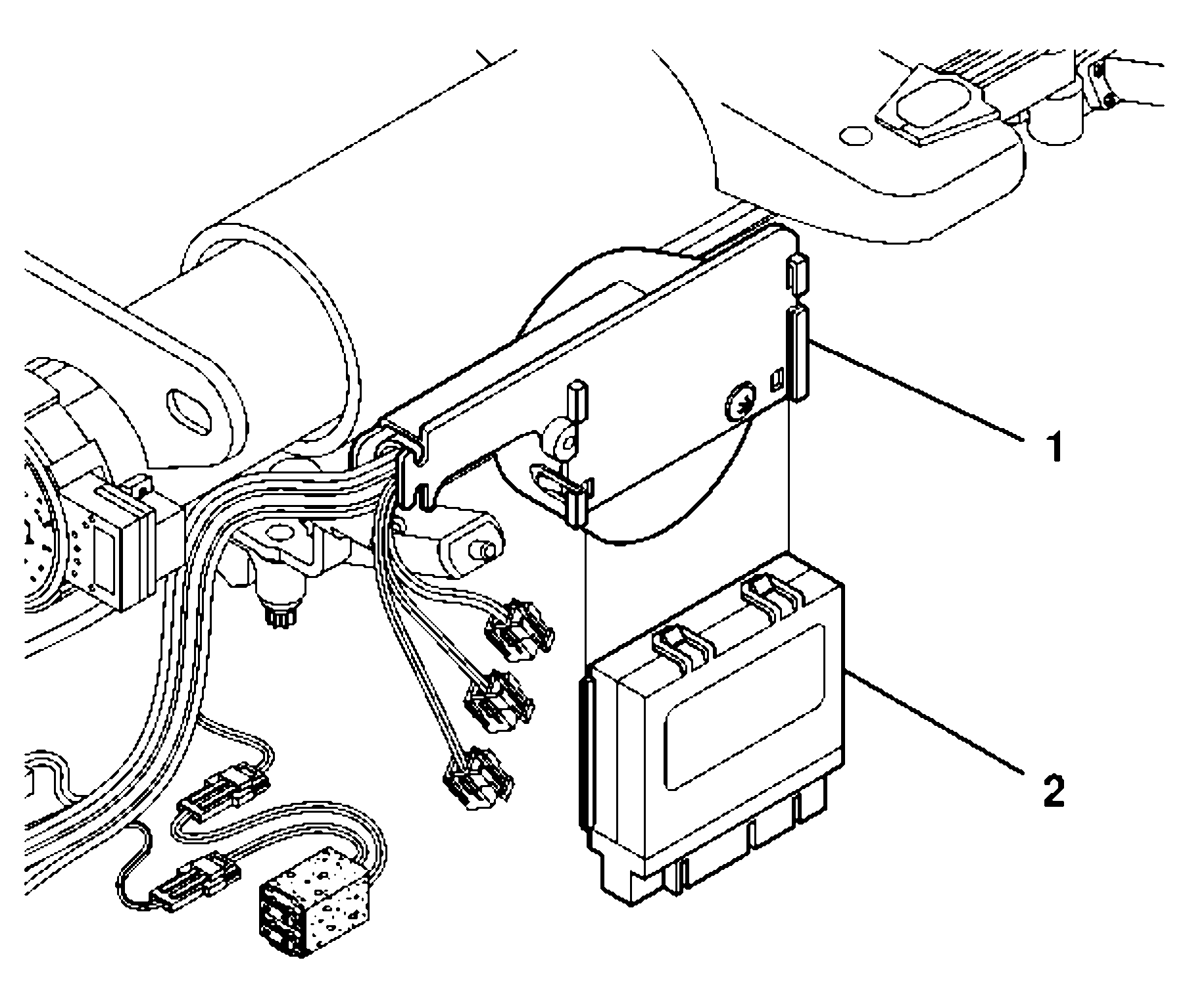

Fig 1: Identifying Wire Harness Shield & Control Module

Courtesy of GENERAL MOTORS CORP.

Install the control module (2) to the wire harness shield (1) of the lower steering column.

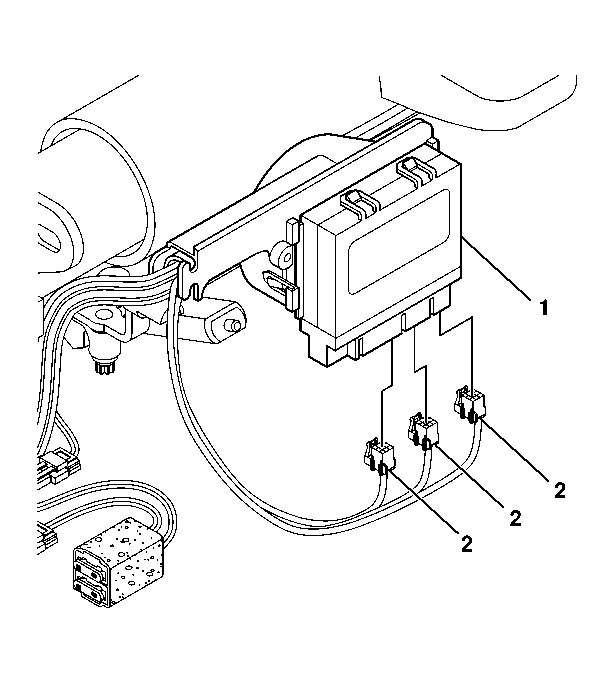

Fig 2: Identifying Module Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the control module electrical connectors (2).
Install the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages, and Console.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
Program the steering column control module. Refer to Steering Column Control Module Programming .
