Power Door Systems Connector End Views

Door Lock Actuator - Driver C1 Connector End View

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162187
  • 4 Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A TAN 126 Driver Door Lock Actuator Unlock Control
B GRY/BLK 745 Left Front Door Ajar Switch Signal
C - - Not Used
D BLK/WHT 351 Ground (LH Drive)
BLK/WHT 451 Ground (RH Drive)
Door Lock Actuator - Driver C2 Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300008
  • 2 Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 694 Driver Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - Driver C3 Connector End View

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052636
  • 2 Way F Metri-Pack 150 Series Sealed (LT GRN)
Pin Wire Color Circuit No. Function
A LT GRN 262 Driver Door Key Switch Signal
B BLK/WHT 351 Ground (LH Drive)
BLK/WHT 451 Ground (RH Drive)
Door Lock Actuator - Front Passenger C1 Connector End View

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162187
  • 4 Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A BLK/WHT 451 Ground (LH Drive)
BLK/WHT 351 Ground (RH Drive)
B - - Not Used
C BLK/WHT 746 Right Front Door Ajar Switch Signal
D DK BLU 49 Driver Door Open Switch Signal
Door Lock Actuator - Front Passenger C2 Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300008
  • 2 Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - LR C1 Connector End View

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162187
  • 4 Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 49 Door Open Switch Signal
B LT BLU/BLK 747 Left Rear Door Ajar Switch Signal
C - - Not Used
D BLK/WHT 251 Ground
Door Lock Actuator - LR C2 Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300008
  • 2 Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - RR C1 Connector End View

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162187
  • 4 Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin Wire Color Circuit No. Function
A BLK/WHT 451 Ground
B - - Not Used
C LT BLU/BLK 748 Right Rear Door Ajar Switch Signal
D DK BLU 49 Door Open Switch Signal
Door Lock Actuator - RR C2 Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300008
  • 2 Way F Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Switch - Driver Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F (BLK)
Pin Wire Color Circuit No. Function
A YEL/BLK 1491 Backlight Lamps Control
B - - Not Used
C BLK/WHT 351 Ground
D RED/BLK 780 Driver Door Lock Switch Lock Signal
E ORN/BLK 781 Driver Door Lock Switch Unlock Signal
Door Lock Switch - Front Passenger Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F (BLK)
Pin Wire Color Circuit No. Function
A YEL/BLK 1491 Backlight Lamps Control
B - - Not Used
C BLK/WHT 451 Ground
D LT BLU 244 Passenger Door Lock Switch Lock Signal
E DK BLU 245 Passenger Door Lock Switch Unlock Signal
Door Lock Switch - LR Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F (BLK)
Pin Wire Color Circuit No. Function
A YEL/BLK 1491 Backlight Lamps Control
B - - Not Used
C BLK/WHT 251 Ground
D LT BLU 244 Passenger Door Lock Switch Lock Signal
E - - Not Used
Door Lock Switch - RR Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F (BLK)
Pin Wire Color Circuit No. Function
A YEL/BLK 1491 Backlight Lamps Control
B - - Not Used
C BLK/WHT 451 Ground
D LT BLU 244 Passenger Door Lock Switch Lock Signal
E - - Not Used

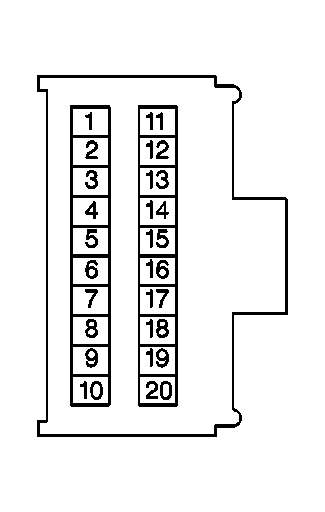

Driver Door Module (DDM) C1 Connector End View

GM153648Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162820
  • 20 Way F Non-Delphi Packard (BLK)
Pin Wire Color Circuit No. Function
1-3 - - Not Used
4 BLK/WHT 351 Ground (LH Drive)
4 BLK/WHT 451 Ground (RH Drive)
5 - - Not Used
6 TAN/WHT 2076 Power Door Serial Data
7-8 - - Not Used
9 GRY 1690 Automatic Day/Night Mirror Signal
10 PNK 1691 Automatic Day/Night Mirror Low Reference
11 - 12 ORN 640 Battery Positive Voltage
13 PPL 1807 Class 2 Serial Data
14 BLK/WHT 351 Ground (LH Drive)
14 BLK/WHT 451 Ground (RH Drive)
15 TAN/WHT 2076 Power Door Serial Data
16 BRN 2064 Battery Positive Voltage
17 PNK 2070 Driver Door Power Window Low Speed Serial Data
18 LT GRN 2072 Driver Door Power Window High Speed Serial Data
19 WHT 2068 Low Reference
20 YEL 1491 Backlight Lamps Control
Driver Door Module (DDM) C2 Connector End View

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK/WHT 351 Ground (LH Drive)
BLK/WHT 451 Ground (RH Drive)
B GRY/BLK 745 Left Front Door Ajar Switch Signal
C TAN 126 Left Front Door Open Switch Signal
D-F - - Not Used
G TAN 694 Driver Door Lock Actuator Unlock Control
H GRY 295 Door Lock Actuator Lock Control
J BLK/WHT 351 Ground (LH Drive)
J BLK/WHT 451 Ground (RH Drive)
K LT GRN 262 Driver Door Key Switch Signal
L-M - - Not Used

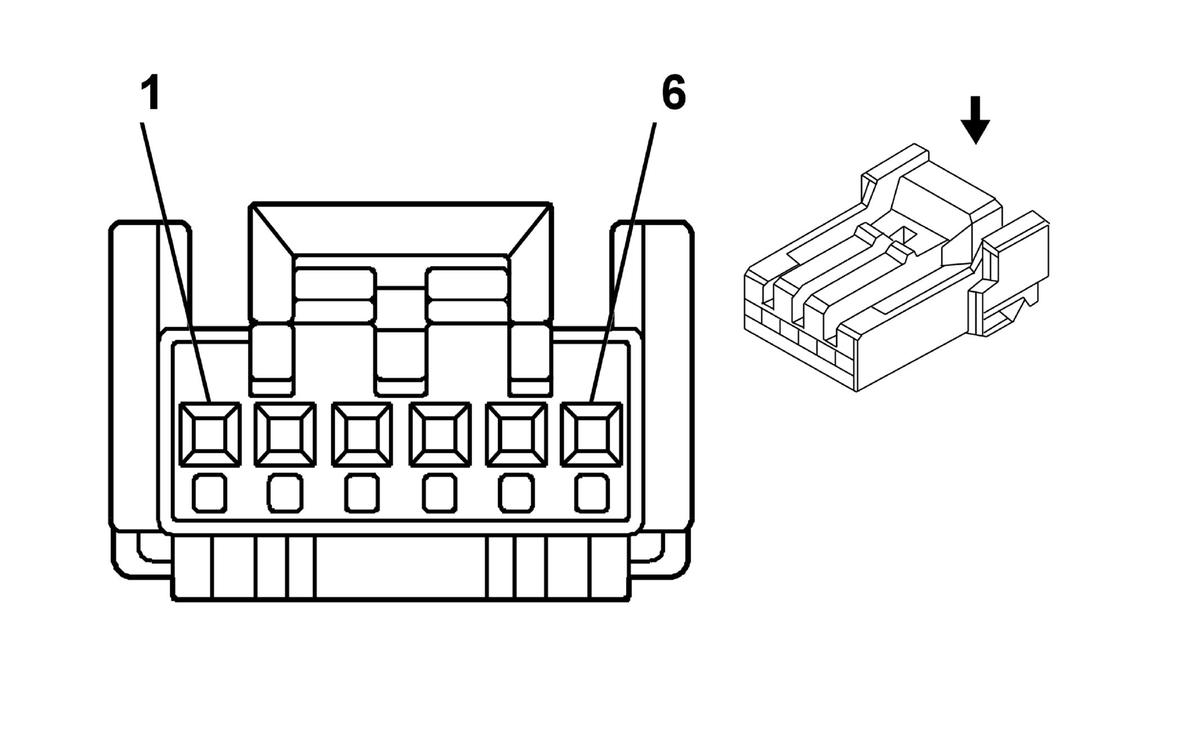

Driver Door Module (DDM) C3 Connector End View

GM307727Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • IL-AG5-6S-S3C1
  • 6 Way F (GRN)
Pin Wire Color Circuit No. Function
1 LT BLU 191 Driver Folding Mirror Motor Retract Control (Export)
2 YEL 190 Driver Folding Mirror Motor Extend Control (Export)
3 RED/BLK 788 5 Volt Reference
4 LT GRN/
BLK		 784 Driver Mirror Vertical Position Sensor Signal
5 LT BLU/
BLK		 786 Driver Mirror Horizontal Position Sensor Signal
6 PPL/BLK 782 Memory Seat/Mirror Sensor Low Reference
Driver Door Module (DDM) C4 Connector End View

GM307731Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP - 175964-2
  • 8 Way F (BLK)
Pin Wire Color Circuit No. Function
1 LT GRN 88 Driver Mirror Motor Up Control
2 GRY 1690 Automatic Day/Night Mirror Signal
3 PNK 1691 Automatic Day/Night Mirror Low Reference
4 BLK 627 Driver Mirror Heating Element Low Reference
5 YEL 89 Driver Mirror Motor Down Control
6 DK BLU 81 Driver Mirror Motor Right Control
7 WHT 82 Driver Mirror Motor Left Control
8 BLK 267 Heated Mirror Supply Voltage
Driver Door Module (DDM) C5 Connector End View

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052856
  • 4 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1040 Battery Positive Voltage
B BRN 165 Power Window Motor Left Front Down Control
C DK BLU 164 Power Window Motor Left Front Up Control
D BLK 350 Ground (RH Drive)
D BLK 450 Ground (LH Drive)
Front Passenger Door Module (FPDM) C1 Connector End View

GM153648Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162820
  • 20 Way F Non-Delphi Packard (BLK)
Pin Wire Color Circuit No. Function
1 LT BLU 244 Passenger Door Lock Switch Lock Signal
2 DK BLU 245 Passenger Door Lock Switch Unlock Signal
3 - - Not Used
4 BLK/WHT 351 Ground (RH Drive)
4 BLK/WHT 451 Ground (LH Drive)
5-6 - - Not Used
7 PPL 2765 Power Window Switch Express Signal
8 DK GRN 1184 Power Window Swtich Up Signal
9 ORN 1189 Power Window Switch Down Signal
10 BLK/WHT 351 Ground (RH Drive)
10 BLK/WHT 451 Ground (LH Drive)
11 ORN 740 Battery Positive Voltage
12-14 - - Not Used
15 TAN/WHT 2076 Power Door Serial Data
16 BRN 2063 Battery Positive Voltage
17 PNK 2069 Front Passenger Door Power Window Low Speed Serial Data
18 LT GRN 2071 Front Passenger Door Power Window High Speed Serial Data
19 WHT 2067 Low Reference
20 YEL 1491 Backlight Lamps Control
Front Passenger Door Module (FPDM) C2 Connector End View

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK/WHT 351 Ground (RH Drive)
A BLK/WHT 451 Ground (LH Drive)
B BLK/WHT 746 Right Front Door Ajar Switch Signal
C DK BLU 49 Door Open Switch Signal
D-K - - Not Used
L TAN 294 Door Lock Actuator Unlock Control
M GRY 295 Door Lock Actuator Lock Control
Front Passenger Door Module (FPDM) C3 Connector End View

GM307727Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • IL-AG5-6S-S3C1
  • 6 Way (GRN)
Pin Wire Color Circuit No. Function
1 LT BLU 191 Passenger Folding Mirror Motor Retract Control
2 YEL 190 Passenger Folding Mirror Motor Extend Control (Export)
3 RED/BLK 788 5 Volt Reference
4 LT GRN/
BLK		 787 Passenger Mirror Vertical Position Sensor Signal
5 LT BLU/
BLK		 785 Passenger Mirror Horizontal Position Sensor Signal
6 PPL/BLK 782 Memory Seat/Mirror Sensor Low Reference
Front Passenger Door Module (FPDM) C4 Connector End View

GM307731Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP - 175964-2
  • 8 Way F (BLK)
Pin Wire Color Circuit No. Function
1 YEL 1498 Passenger Mirror Motor Up Control
2 GRY 1690 Automatic Day/Night Mirror Signal
3 PNK 1691 Automatic Day/Night Mirror Low Reference
4 BLK 9089 Passenger Mirror Heating Element Low Reference
5 LT GRN 889 Passenger Mirror Motor Down Control
6 WHT 881 Passenger Mirror Motor Right Control
7 DK BLU 90 Passenger Mirror Motor Left Control
8 ORN 267 Heated Mirror Supply Voltage
Front Passenger Door Module (FPDM) C5 Connector End View

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052856
  • 4 Way F Metric-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1040 Battery Positive Voltage
B BRN 667 Power Window Motor Right Front Down Control
C DK BLU 666 Power Window Motor Right Front Up Control
D BLK 650 Ground
Left Rear Door Module (LRDM) C1 Connector End View

GM153648Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162820
  • 20 Way F Non-Delphi Packard (BLK)
Pin Wire Color Circuit No. Function
1 LT BLU 244 Passenger Door Lock Switch Lock Signal
2-3 - - Not Used
4 BLK/WHT 251 Ground
5-6 - - Not Used
7 PPL 2765 Power Window Switch Express Signal
8 WHT 1185 Power Window Swtich Up Signal
9 YEL 1187 Power Window Switch Left Rear Down Signal
10 BLK/WHT 251 Ground
11 ORN 840 Battery Positive Voltage
12 BLK/WHT 1638 Left Rear Heated Seat High Temperature Indicator Control
13 PNK 1631 Left Rear Heated Seat Low Temperature Indicator Control
14 BRN 1637 Left Rear Heated Seat Switch Signal
15 TAN/WHT 2076 Power Door Serial Data
16-19 - - Not Used
20 YEL 1491 Backlight Lamps Control
Left Rear Door Module (LRDM) C2 Connector End View

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK/WHT 251 Ground
B LT BLU/
BLK		 747 Left Rear Door Ajar Switch Signal
C DK BLU 49 Door Open Switch Signal
D-F - - Not Used
G TAN 294 Door Lock Actuator Unlock Control
H GRY 295 Door Lock Actuator Lock Control
J-M - - Not Used
Left Rear Door Module (LRDM) C5 Connector End View

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052856
  • 4 Way F Metric-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1040 Battery Positive Voltage
B BRN 669 Power Window Motor Left Rear Down Control
C DK BLU 668 Power Window Motor Left Rear Up Control
D BLK 350 Ground
Memory/Personalization Function Switch Connector End View

GM258693Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162467
  • 6 Way M Metric-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A WHT 615 Memory 1 Switch Signal
B PPL 616 Memory 2 Switch Signal
C ORN 614 Memory Set Switch Signal
D YEL 1491 Backlight Lamps Control
E BLK/WHT 351 Ground
F - - Not Used
Right Rear Door Module (RRDM) C1 Connector End View

GM153648Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162820
  • 20 Way F Non-Delphi Packard (BLK)
Pin Wire Color Circuit No. Function
1 LT BLU 244 Passenger Door Lock Switch Lock Signal
2-3 - - Not Used
4 BLK/WHT 451 Ground
5-6 - - Not Used
7 PPL 2765 Power Window Switch Express Signal
8 GRY/BLK 1186 Power Window Switch Right Rear Up Signal
9 DK GRN 1188 Power Window Switch Right Rear Down Signal
10 BLK/WHT 451 Ground
11 ORN 840 Battery Positive Voltage
12 BLK/WHT 1635 Right Rear Heated Seat High Temperature Indicator Control
13 PNK 1636 Right Rear Heated Seat Low Temperature Indicator Control
14 BRN 1634 Right Rear Heated Seat Switch Signal
15 TAN/WHT 2076 Power Door Serial Data
16-19 - - Not Used
20 YEL 1491 Backlight Lamps Control
Right Rear Door Module (RRDM) C2 Connector End View

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK/WHT 451 Ground
B LT BLU/
BLK		 748 Right Rear Door Ajar Switch Signal
C DK BLU 49 Door Open Switch Signal
D-K - - Not Used
L TAN 294 Door Lock Actuator Unlock Control
M GRY 295 Door Lock Actuator Lock Control
Right Rear Door Module (RRDM) C5 Connector End View

GM62450Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052856
  • 4 Way F Metric-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1040 Battery Positive Voltage
B BRN 671 Power Window Motor Right Rear Down Control
C DK BLU 670 Power Window Motor Right Rear Up Control
D BLK 650 Ground

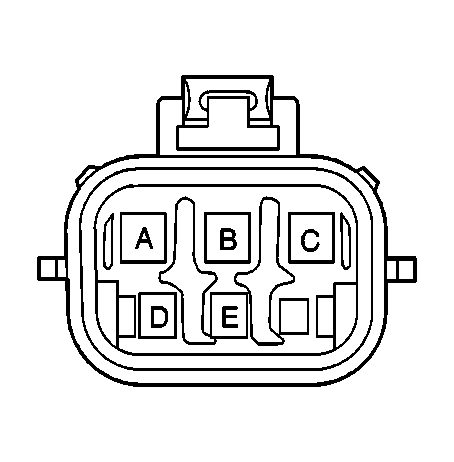

Window Motor - Driver Connector End View

GM287984Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186346
  • 6F Metri-Pack Mixed Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 164 Power Window Motor Left Front Up Control
B WHT 2068 Low Reference
C BRN 165 Power Window Motor Left Front Down Control
D LT GRN 2072 Driver Door Power Window High Speed Serial Data
E PNK 2070 Driver Door Power Window Low Speed Serial Data
F BRN 2064 Battery Positive Voltage
Window Motor - Front Passenger Connector End View

GM287984Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186346
  • 6 Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 666 Power Window Motor Right Front Up Control
B WHT 2067 Low Reference
C BRN 667 Power Window Motor Right Front Down Control
D LT GRN 2071 Front Passenger Door Power Window High Speed Serial Data
E PNK 2069 Front Passenger Door Power Window Low Speed Serial Data
F BRN 2063 Battery Postive Voltage

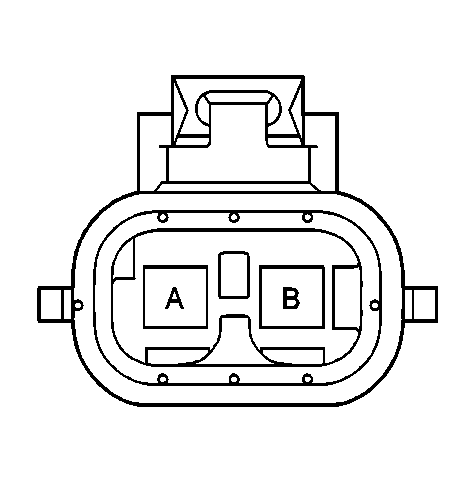

Window Motor - LR Connector End View

GM258176Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129486
  • 2 Way F Metri-Pack 280 Series Flex Lock Sealed (MD GRY)
Pin Wire Color Circuit No. Function
A BRN 669 Power Window Motor Left Rear Down Control
B DK BLU 668 Power Window Motor Left Rear Up Control
Window Motor - RR Connector End View

GM258176Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129486
  • 2 Way F Metri-Pack 280 Series Flex Lock Sealed (MD GRY)
Pin Wire Color Circuit No. Function
A BRN 671 Power Window Motor Right Rear Down Control
B DK BLU 670 Power Window Motor Right Rear Up Control
Window Switch - Driver Connector End View

GM62435Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047531
  • 10 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 BLK/WHT 351 Ground
2 PPL 616 Memory 2 Switch Signal
3 WHT 615 Memory 1 Switch Signal
4 ORN 614 Memory Seat Set Switch Signal
5 YEL 1491 Backlight Lamps Control
6 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
7 RED/BLK 780 Driver Door Lock Switch Lock Signal
8 BLK/WHT 351 Ground
9 ORN 640 Battery Positive Voltage
10 TAN/WHT 2076 Power Door Serial Data
Window Switch - Front Passenger Connector End View

GM258172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064982
  • 5 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 DK GRN 1184 Power Window Swtich Up Signal
2 ORN 1189 Power Window Switch Down Signal
3 PPL 2765 Power Window Switch Express Signal
4 BLK/WHT 351 Ground (RH Drive)
4 BLK/WHT 451 Ground (LH Drive)
5 YEL/BLK 1491 Backlight Lamps Control
Window Switch - LR Connector End View

GM258172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064982
  • 5 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 WHT 1185 Power Window Swtich Up Signal
2 YEL 1187 Power Window Switch Left Rear Down Signal
3 PPL 2765 Power Window Switch Express Signal
4 BLK/WHT 251 Ground
5 YEL/BLK 1491 Backlight Lamps Control
Window Switch - RR Connector End View

GM258172Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064982
  • 5 Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 GRY/BLK 1186 Power Window Switch Right Rear Up Signal
2 DK GRN 1188 Power Window Switch Right Rear Down Signal
3 PPL 2765 Power Window Switch Express Signal
4 BLK/WHT 451 Ground
5 YEL/BLK 1491 Backlight Lamps Control
scientia non olet · About LEMON Manuals
