ABS Connector End Views

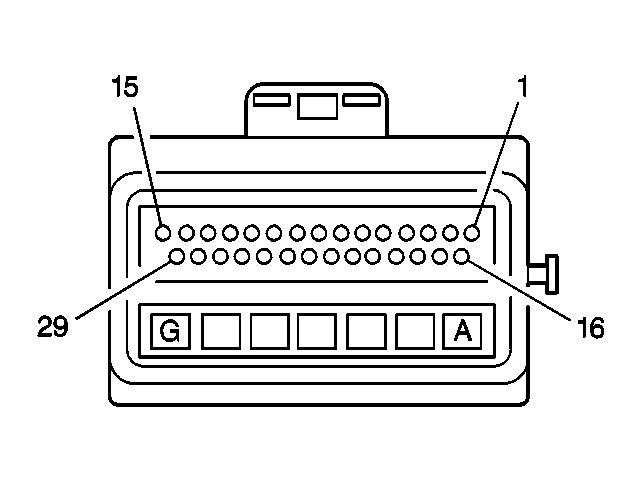

Electronic Brake Control Module (EBCM) Connector End View

GM470409Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • C1 - 15401425
  • 7 Way F Metri-Pack 480 Series (BLK)
  • C2 - 15356700
  • 29 Way F Micro-Pack 100 Series (WHT)
Pin Wire Color Circuit No. Function
A RED 442 Battery Positive Voltage
B BRN 241 Ignition 3 Voltage
C GRY 1787 Variable Effort Steering Actuator High Effort Control
D WHT 345 Variable Effort Steering Actuator Low Effort Control
E - - Vent Tube
F - G BLK 1150 Ground
1 WHT 790 PWM Serial Data
2 TAN/BLK 464 Delivered Torque Signal
3 LT GRN 1763 Steering Wheel Position Signal A
4 WHT 925 (Not Used) Left Front Brake Lining Wear Sensor Signal
5 LT BLU 715 Lateral Accelerometer Signal
6 WHT 17 Stop Lamp Switch Signal
7 PPL 1807 Class 2 Serial Data
8 RED 885 Left Rear Wheel Speed Sensor Low Reference
9 BRN 882 Right Rear Wheel Speed Sensor Signal
10 DK GRN 872 Right Front Wheel Speed Sensor Signal
11 YEL 873 Left Front Wheel Speed Sensor Low Reference
12 ORN/BLK 463 Requested Torque Signal
13 LT GRN/BLK 1338 Yaw Rate Sensor Signal
14-15 - - Not Used
16 GRY 791 PWM Serial Data
17 - - Not Used
18 LT BLU 1764 Steering Wheel Position Signal B
19 DK BLU 716 Yaw Rate Sensor Signal
20 - - Not Used
21 PPL 1807 Class 2 Serial Data
22 BLK 884 Left Rear Wheel Speed Sensor Signal
23 WHT 883 Right Rear Wheel Speed Sensor Low Reference
24 TAN 833 Right Front Wheel Speed Sensor Low Reference
25 LT BLU 830 Left Front Wheel Speed Sensor Signal
26 DK BLU 1537 ABS Indicator Signal
27 GRY/BLK 1337 5 Volt Reference
28 YEL/BLK 2085 PWM Serial Data
29 - - Not Used
Lateral Accelerometer Sensor Connector End View

GM68743Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146120
  • 3 Way F Metri-Pack 150 Series (BRN)
Pin Wire Color Circuit No. Function
A GRY 1337 5 Volt Reference
B LT BLU 715 Lateral Accelerometer Signal
C LT GRN 1338 Yaw Rate Sensor Signal
Stoplamp Switch C1 Connector End View

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2 Way F Metri-Pack 480 Series (GRY)
Pin Wire Color Circuit No. Function
A ORN 1640 Battery Positive Voltage
B WHT 17 Stop Lamp Switch Signal
Stoplamp Switch C2 Connector End View

GM40397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033706
  • 4 Way F Metri-Pack 280 Series (BLU)
Pin Wire Color Circuit No. Function
A LT GRN 275 Park Neutral Position Switch Park Signal
B DK GRN/WHT 1135 A/T Shift Lock Control Solenoid Supply Voltage
C - D - - Not Used
Traction Control Switch Connector End View

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059800
  • 5 Way Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BLK/WHT 651 Ground
C LT BLU 1788 Traction Control Switch Signal
D BLK 350 Ground
E YEL 1491 Backlight Lamps Control

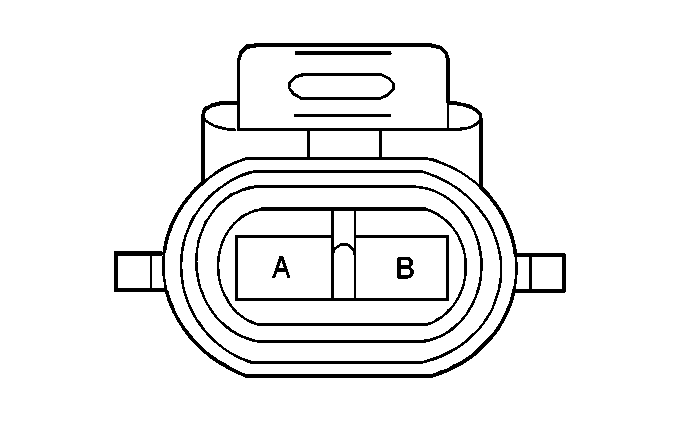

Wheel Speed Sensor (WSS) - LF Connector End View

GM333039Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2 Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin Wire Color Circuit No. Function
A YEL 873 Left Front Wheel Speed Sensor Low Reference
B LT BLU 830 Left Front Wheel Speed Sensor Signal
Wheel Speed Sensor (WSS) - LR Connector End View

GM333039Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052638
  • 2 Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin Wire Color Circuit No. Function
A BLK 884 Left Rear Wheel Speed Sensor Signal
B RED 885 Left Rear Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) - RF Connector End View

GM333039Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2 Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin Wire Color Circuit No. Function
A DK GRN 872 Right Front Wheel Speed Sensor Signal
B TAN 833 Right Front Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) - RR Connector End View

GM333039Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052638
  • 2 Way F Metri-Pack 150 Series Sealed (LT GRY)
Pin Wire Color Circuit No. Function
A WHT 883 Right Rear Wheel Speed Sensor Low Reference
B BRN 882 Right Rear Wheel Speed Sensor Signal
Yaw Rate Sensor Connector End View

GM130631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064758
  • 3 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 1337 5 Volt Reference
B LT GRN 1338 Yaw Rate Sensor Signal
C DK BLU 716 Yaw Rate Sensor Signal
