Installation Procedure

  1. Position the generator cable to the engine.
    2. Fig 1: Vie of Generator Output BAT Terminal Protective Boot
    GM780408Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Connect the battery positive lead and install the generator output BAT terminal nut.

    Tighten:  Tighten the generator output BAT terminal nut to 12.5 N.m (111 lb in).

  3. Press the protective boot on to the generator output BAT terminal.
  4. Connect the cable harness clips to the front of the camshaft cover.

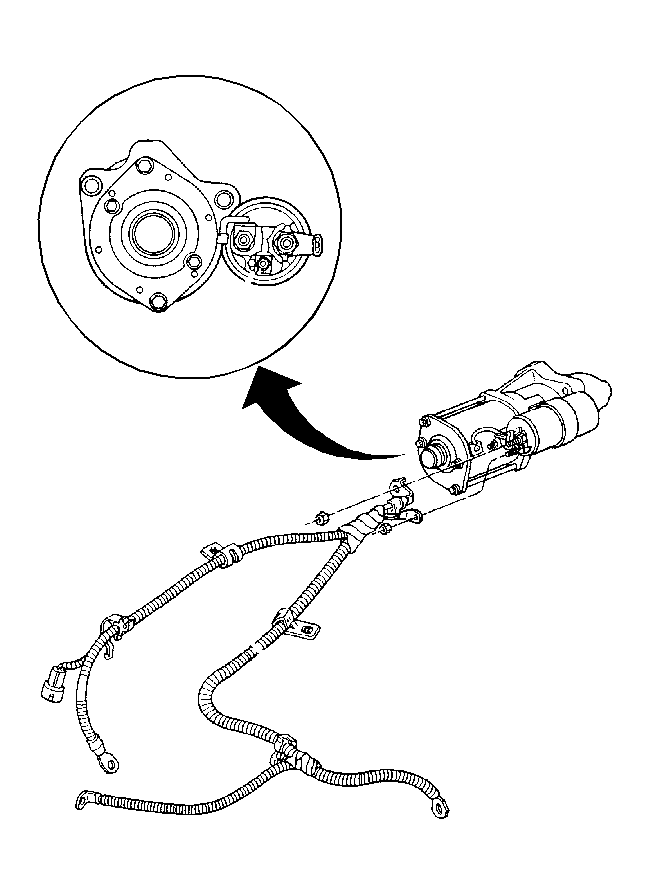

    5. Fig 2: Expanded View of Starter Motor BAT Terminal Wire
    GM104910Courtesy of GENERAL MOTORS CORP.
  5. Connect the starter motor BAT terminal wire.

    Tighten:  Tighten the battery positive cable to starter terminal nut to 10 N.m (89 lb in).

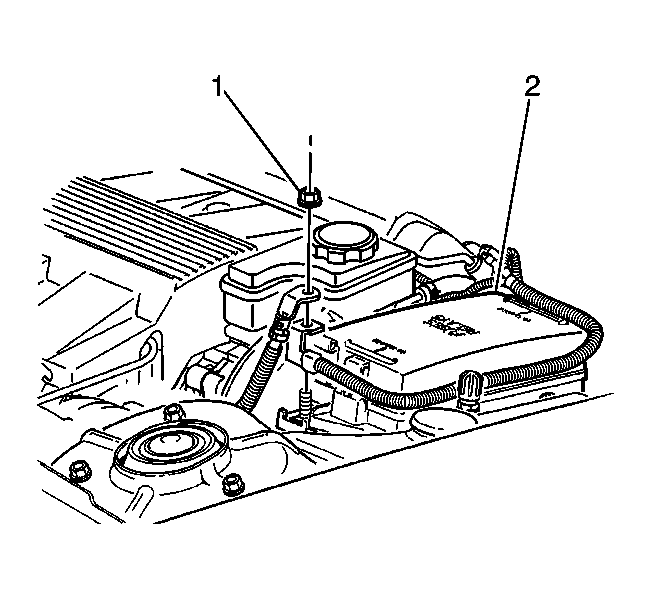

    6. Fig 3: View of Underhood Fuse Block
    GM574502Courtesy of GENERAL MOTORS CORP.
  6. Install the nut (1) securing the battery positive cable to the remote positive terminal.

    Tighten:  Tighten the battery positive cable to remote positive terminal nut to 12 N.m (106 lb in).

  7. Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical-4.6L.
  8. Install the upper filler panel. Refer to Filler Panel Replacement - Upper in Body Front End.
  9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
