Installation Procedure

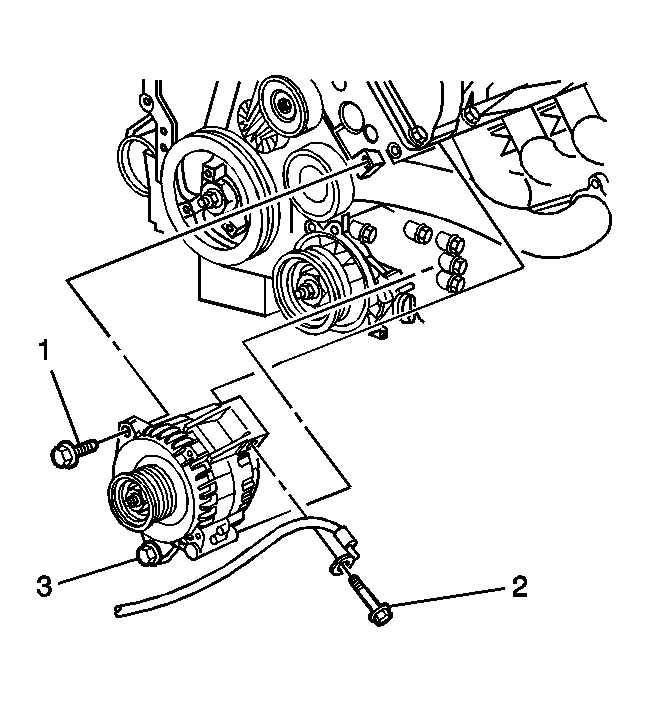

    Fig 1: Identifying Generator Bolts
    GM780404Courtesy of GENERAL MOTORS CORP.
  1. Position the generator to the A/C compressor and engine.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the generator mounting bolts (1, 2).

    Tighten:  Tighten the generator mounting bolts to 50 N.m (37 lb ft).

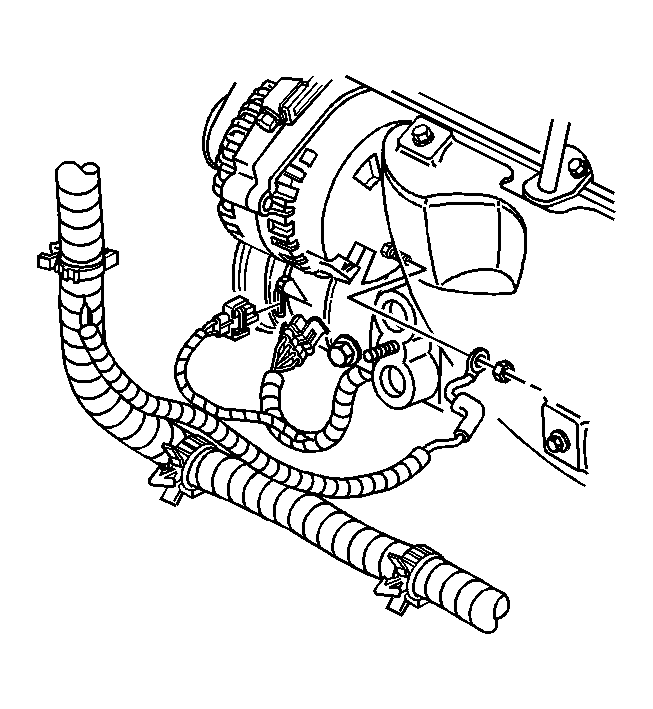

    3. Fig 2: Vie of Generator Output BAT Terminal Protective Boot
    GM780408Courtesy of GENERAL MOTORS CORP.
  3. Connect the wiring harness connector to the generator.
  4. Connect the battery positive lead and install the generator output BAT terminal nut.

    Tighten:  Tighten the generator output BAT terminal nut to 12.5 N.m (111 lb in).

  5. Press the protective boot on to the generator output BAT terminal.
  6. Install the engine cooling fans. Refer to Cooling Fan Replacement - Electric in Engine Cooling.
  7. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical-4.6L.
  8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
