Horns Component Views

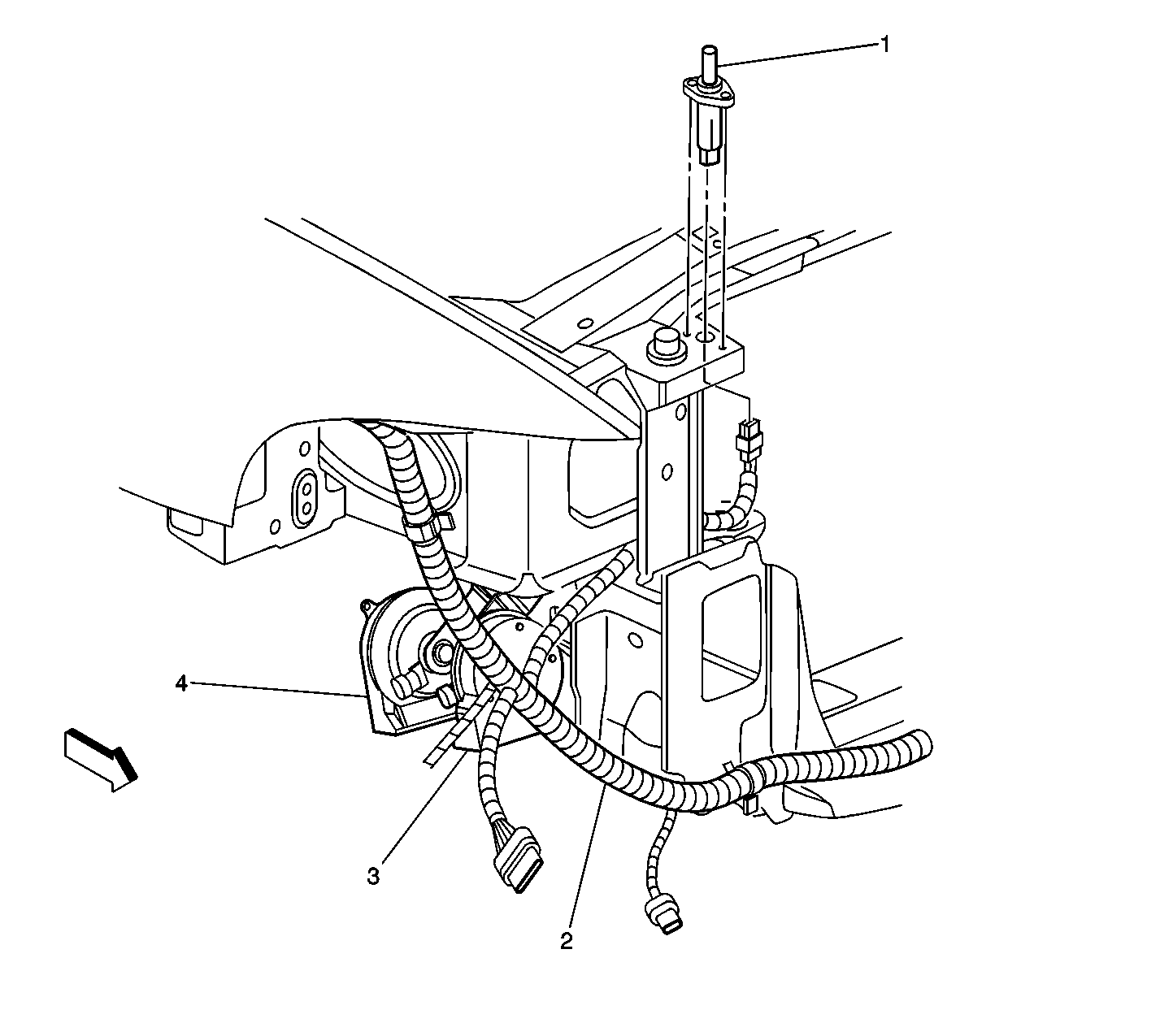

Fig 1: RH Front Corner of Vehicle Component Locator
GM154362Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Ajar Switch (Export)
2 S114
3 Horn - Note
4 Horn - Note
