Cellular Communication Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Cellular Telephone Interface Board Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047531 10-Way F Micro-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
1	RED	2526	Handset Ground
2	BRN	1941	Ignition 3 Voltage
3	GRY/BLK	1798	Handset Data Low Reference
4	PPL	1156	Handset Keypad Data Signal
5	PPL	679	Handset Display Data Signal
6	PNK	1155	Handset Audio Low Reference
7	LT BLU	1153	Handset Mouthpiece Audio Signal
8	LT BLU/BLK	1235	Handset Earpiece Audio
9-10	-	-	Not Used

Cellular Telephone Microphone Connector End View (w/o UE1)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12059449 2-Way M Metri-Pack 150 Series (NAT)
Pin	Wire Color	Circuit No.	Function
A	BARE	814	Drain Wire
B	GRY	655	Cellular Microphone Signal

Cellular Telephone Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12110115 32-Way F Micro-Pack 100 Series (BLU)
Pin	Wire Color	Circuit No.	Function
E1	BLK	1051	Ground
E2	PPL	1807	Class 2 Serial Data
E3	-	-	Not Used
E4	PPL	679	Handset Display Data Signal
E5	GRY/BLK	1798	Handset Data Low Reference
E6	PPL	1156	Handset Keypad Data Signal (w/o UE1)
E7	BRN/WHT	367	Remote Radio Left Audio Signal
E8	BRN	1941	Ignition 3 Voltage
E9	GRY	344	Cellular Telephone RF Boost Control Signal
E10	-	-	Not Used
E11	DK BLU	658	Cellular Telephone Voice Signal
E12	LT BLU	1235	Handset Earpiece Audio Signal (w/UE1)
E13	LT BLU	1153	Handset Mouthpiece Audio Signal
E14	BARE	814	Drain Wire
E15	GRY	655	Cellular Microphone Signal
E16	ORN	2240	Battery Positive Voltage
F1	-	-	Not Used
F2	PPL	1807	Class 2 Serial Data (w/UE1)
F3	ORN/BLK	2360	Modem Audio Low Reference (w/UE1)
F4	TAN/BLK	2388	Modem Audio Return Signal (w/UE1)
F5	BRN/WHT	2387	Modem Audio Transmit Signal (w/UE1)
F6-F7	-	-	Not Used
F8	RED	2526	Handset Ground
F9	BARE	814	Drain Wire (w/UE1)
F10	BARE	814	Drain Wire
F11	LT BLU/BLK	659	Cellular Telephone Voice Low Reference
F12	BARE	814	Drain Wire
F13	PNK	1155	Handset Audio Low Reference
F14	BARE	814	Drain Wire
F15	TAN	2610	Cellular Microphone Signal
F16	GRY	655	Cellular Microphone Signal (w/UE1)

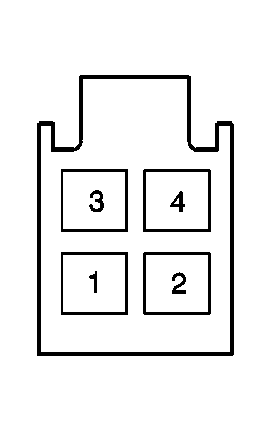

RF Signal Amplifier Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324585 4-Way M (BLK)
Pin	Wire Color	Circuit No.	Function
1	BLK	1051	Ground
2-3	-	-	Not Used
4	GRY	344	Cellular Telephone RF Boost Control Signal

Vehicle Communication Interface Module (VCIM) C1 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		917981-1 16-Way F (WHT)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	BRN/WHT	2517	Keypad Red LED Signal
3	YEL/BLK	2516	Keypad Green LED Signal
4-5	-	-	Not Used
6	LT GRN/BLK	2515	Keypad Supply Voltage
7	BLK	1051	Ground
8	BLK	1051	Ground
9-10	-	-	Not Used
11	DK GRN/WHT	2514	Keypad Signal
12-14	-	-	Not Used
15	ORN	2240	Battery Positive Voltage
16	ORN	2240	Battery Positive Voltage

Vehicle Communication Interface Module (VCIM) C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		917975-1 12-Way F (WHT)
Pin	Wire Color	Circuit No.	Function
1	DK BLU	658	Cellular Telephone Voice Signal
2	LT BLU/BLK	659	Cellular Telephone Voice Low Reference
3-4	-	-	Not Used
5	PPL	1807	Class 2 Serial Data
6-7	-	-	Not Used
8	BARE	814	Drain Wire
9	GRY	655	Cellular Microphone Signal
10	BARE	814	Drain Wire
11-12	-	-	Not Used

Vehicle Communication Interface Module (VCIM) C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		917983-1 16-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	TAN	2610	Cellular Microphone Signal (w/U45 or U3R w/o UV8)
3-4	-	-	Not Used
5	BARE	814	Drain Wire (w/U45 or U3R w/o UV8)
6-16	-	-	Not Used
