Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment trim. Refer to Compartment Front Trim Panel Replacement - Rear in Body Rear End.
  2. Disconnect the electrical connector from the cellular telephone module.
  3. Remove the four fasteners (3) retaining the Cellular telephone module and bracket assembly (2) to the rear shelf carrier (1).
  4. Remove the Cellular telephone module and mounting bracket assembly (2) from the rear shelf carrier.
    5. Fig 1: View Of Cellular Telephone Module & Bracket Assembly
    GM649471Courtesy of GENERAL MOTORS CORP.
  5. Release the Cellular telephone module mounting bracket retaining tabs (2) and slide the Cellular telephone module (3) out of the mounting bracket (1).

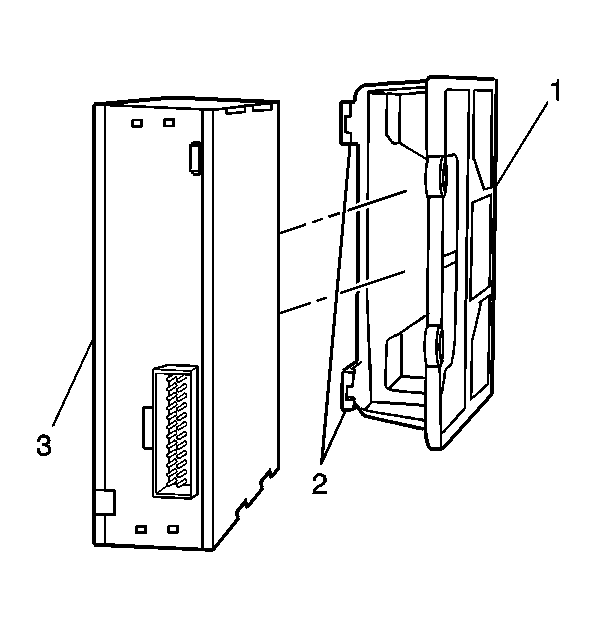

    6. Fig 2: View Of Cellular Telephone Module Mounting Bracket Retaining Tabs
    GM649480Courtesy of GENERAL MOTORS CORP.
