Body Control System Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

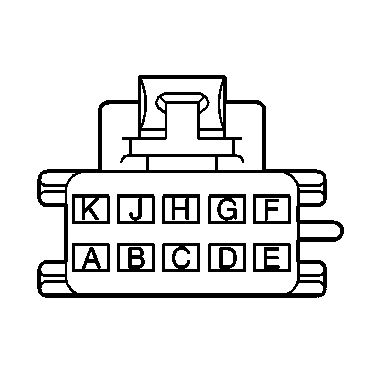

Dash Integration Module (DIM) Connector End View C1

GM283791Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064871
  • 10-Way F Metri-Pack 150 Series (DK BLU)
Pin Wire Color Circuit No. Function
A-D - - Not Used
E BLK/WHT 451 Ground
F - - Not Used
G ORN 540 Battery Positive Voltage
H YEL 32 Instrument Panel Lamp Fuse Supply Voltage - 1
J - - Not Used
K YEL 1491 Backlight Lamps Control
Dash Integration Module (DIM) Connector End View C2

GM130690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110206
  • 24-Way F Micro-Pack 100 Series (LT BLU)
Pin Wire Color Circuit No. Function
A1 DK BLU 1796 Steering Wheel Controls Signal
A2-A5 - - Not Used
A6 GRY 731 Low Reference
A7 BLK 470 A/C Refrigerant Low Temperature Sensor Signal
A8-A10 - - Not Used
A11 PPL 1807 Class 2 Serial Data
A12 PPL 1807 Class 2 Serial Data
B1 PNK/BLK 109 Hood Ajar Switch Signal (Export)
B2 WHT 103 Headlamp Switch Headlamps On Signal
B3 BRN/WHT 301 Park Lamp Switch On Signal
B4 WHT 1538 Windshield Wiper Switch On Signal
B5-B7 - - Not Used
B8 PNK/BLK 1484 Flash To Pass Switch Signal
B9-B12 - - Not Used
Dash Integration Module (DIM) Connector End View C3

GM130689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110244
  • 24-Way F Micro-Pack 100 Series (PNK)
Pin Wire Color Circuit No. Function
A1 WHT 1390 Off/Run/Crank Voltage
A2 BRN 4 Accessory Voltage
A3 PNK 3 Ignition 1 Voltage
A4 LT GRN/BLK 592 DRL Relay Control
A5 WHT 111 Hazard Switch Signal
A6 BLK 28 Horn Relay Control
A7 DK GRN/WHT 1317 Fog Lamp Relay Control (w/T96)
A8 TAN/WHT 816 A/T Shift Lock Solenoid Supply Voltage
A9 BLK 9999 Inside Air Temperature Sensor Assembly Control
A10- A11 - - Not Used
A12 ORN 3340 Battery Positive Voltage
B1 ORN 300 Ignition 3 Voltage
B2 WHT 103 Headlamp Switch Headlamps On Signal (Export)
B3 PPL 1375 Remote Radio Control Supply Voltage
B4 LT BLU 1485 Headlamp Control
B5 WHT 1080 Park Lamp Relay Control
B6 BRN/WHT 1429 Standing Lamp Relay Control (Export or w/V4U)
B7 BLK/WHT 1969 Headlamp High Beam Relay Control
B8 DK GRN 1483 Control Power
B9-B11 - - Not Used
B12 BLK 50 Ground
Instrument Panel Integration Module (IPM) Connector End View C1

GM130689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110244
  • 24-Way F Micro-Pack 100 Series (PNK)
Pin Wire Color Circuit No. Function
A1 LT BLU/BLK 1688 5-Volt Reference
A2 BLK 518 Lower Left Air Temperature Sensor Signal
A3 BLK 520 Lower Right Air Temperature Sensor Signal
A4 BLK 516 Upper Left Air Temperature Sensor Signal
A5 TAN 517 Upper Right Air Temperature Sensor Signal
A6 WHT 278 Ambient Light Sensor Signal
A7 DK GRN 734 Inside Air Temperature Sensor Signal
A8 LT GRN/BLK 735 Ambient Air Temperature Sensor Signal
A9 GRY 1548 Passenger Sunload Sensor Signal
A10 LT BLU/BLK 590 Driver Sunload Sensor Signal
A11 BRN 141 Ignition 3 Voltage
A12 TAN 2144 Hazard Switch Signal
B1 PNK/WHT 1447 Fuel Door Release Switch Signal
B2 ORN 1140 Battery Positive Voltage
B3 BLK 1576 Trunk Release Switch Signal
B4 BLK/WHT 451 Ground
B5 - - Not Used
B6 RED 2353 54 Volt VF Display Supply
B7 - - Not Used
B8 YEL 1491 Backlight Lamps Control
B9 LT GRN 80 Key In Ignition Switch Signal
B10 PPL 1807 Class 2 Serial Data
B11 PPL 1807 Class 2 Serial Data
B12 PNK/BLK 1597 Courtesy Lamps Switch On Signal
Instrument Panel Integration Module (IPM) Connector End View C2

GM130690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110206
  • 24-Way F Micro-Pack 100 Series (LT BLU)
Pin Wire Color Circuit No. Function
A1 DK GRN 44 Instrument Panel Lamps Dimmer Switch Signal
A2 PPL 1783 Twilight Sentinel Delay Signal
A3 BLK 450 Ground
A4-A7 - - Not Used
A8 GRY/BLK 754 Blower Motor Speed Control
A9 BRN 404 Auxiliary Air Temperature Sensor Signal
A10 ORN 192 Front Fog Lamp Switch Signal
A11 LT BLU 1788 Traction Control Switch Signal
A12 LT BLU 187 Rear Fog Lamp Switch Signal (Export)
B1 YEL 61 Low Reference
B2 DK BLU 1199 Left Air Temperature Door Control B
B3 YEL 1791 Left Air Temperature Door Control A
B4 WHT/BLK 1236 Right Air Temperature Door Control B
B5 GRY/BLK 2778 Right Air Temperature Door Control A
B6 ORN 2775 Auxiliary Air Temperature Door Control B
B7 TAN 2776 Auxiliary Air Temperature Door Control A
B8 YEL 1318 Mode Door Control
B9 YEL/BLK 1814 Mode Door Control A
B10 DK GRN 1614 Recirculation Door Control B
B11 PPL 1838 Recirculation Door Control A
B12 ORN 2352 HUD Active Signal
Rear Integration Module (RIM) Connector End View C1

GM73152Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092629
  • 16-Way F Micro-Pack 100 Series (BLU)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 LT BLU 2380 Rear Parking Assist Chime Signal
A3 GRY 1148 Transmission Shift Inhibit Signal
A4 PNK 1039 Ignition 1 Voltage
A5 DK BLU/WHT 149 Courtesy Lamp Supply Voltage
A6 GRY 2165 5-Volt Reference (w/o F45)
A7 - - Not Used
A8 BLK 1051 Ground
B1- B2 - - Not Used
B3 RED/BLK 744 Rear Compartment Lid Ajar Switch (w/o B9Q)
B3 DK BLU 49 Driver Door Open Switch Signal (w/B9Q)
B4 BLK 305 Rear Compartment Cylinder Switch Signal
B5 - - Not Used
B6 PPL 2185 Automatic Level Control Position Sensor Low Reference (w/o F45)
B7 - - Not Used
B8 BLK 1051 Ground
Rear Integration Module (RIM) Connector End View C2

GM130689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146243
  • 24-Way F Micro-Pack 100 Series (DK GRY)
Pin Wire Color Circuit No. Function
A1 BLK 755 RAP Relay Coil Control
A2 PNK 1607 Park Brake Relay Coil A Control
A3 YEL 1977 Rear Fog Lamp Relay Control (Export)
A4 LT GRN/BLK 1605 Park Brake Relay Coil B Control
A5 PNK/BLK 1615 Park Brake Relay Control
A6 DK GRN 1399 RAP Relay Coil Supply Voltage
A7 YEL 321 Automatic Level Control Relay Coil Supply Voltage (w/o F45)
A8 - - Not Used
A9 BRN 2184 Automatic Level Control Position Sensor Signal (w/o F45)
A10 GRY/BLK 690 Front Interior Lamp Control
A11 ORN 540 Battery Positive Voltage
A12 PPL 1807 Class 2 Serial Data
B1 WHT 193 Rear Defog Relay Control
B2 DK GRN 646 Reverse Relay Control
B3 WHT 93 Fuel Door Release Relay Control
B4 LT BLU 1344 Trunk Release Relay Control
B5 GRY 1599 Interior Lamps Relay Control
B6 DK GRN/WHT 9512 Ignition Key Lock Cylinder Relay Control (DTS)
B7 - - Not Used
B8 WHT 320 Automatic Level Control Exhaust Solenoid Control (w/o F45)
B9 - - Not Used
B10 DK BLU 1393 Rear Interior Lamp Control
B11-B12 - - Not Used
