Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Passenger Compartment, Center of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Sensor Assembly
2	Speaker - Front I/P Midrange
3	Hazard Switch
4	Instrument Panel Integration Module (IPM)
5	Radio (w/o U3R, U3S, U3Q)
6	Driver Information Center (DIC) Switch - Right

Fig 2: Center Front of the Passenger Compartment, Front of the Center Console, in the Ashtray Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ashtray Lamp
2	Cigar Lighter Front

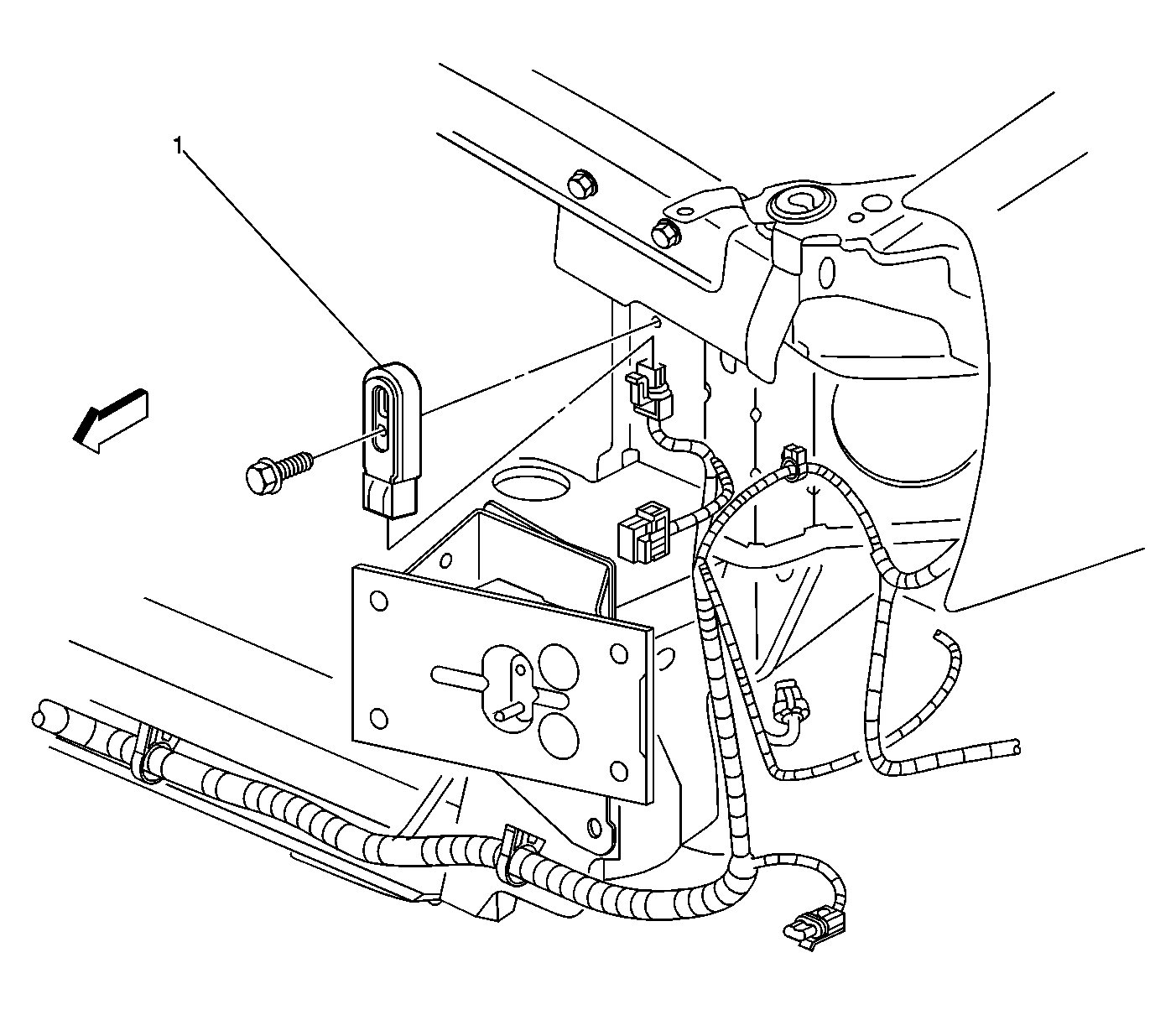

Fig 3: Left Front Corner of the Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Running Lamp (DRL) Resistor

Fig 4: Passenger Compartment, Below the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp/AT Shift Lock Control Switch
2	Stop Lamp Switch

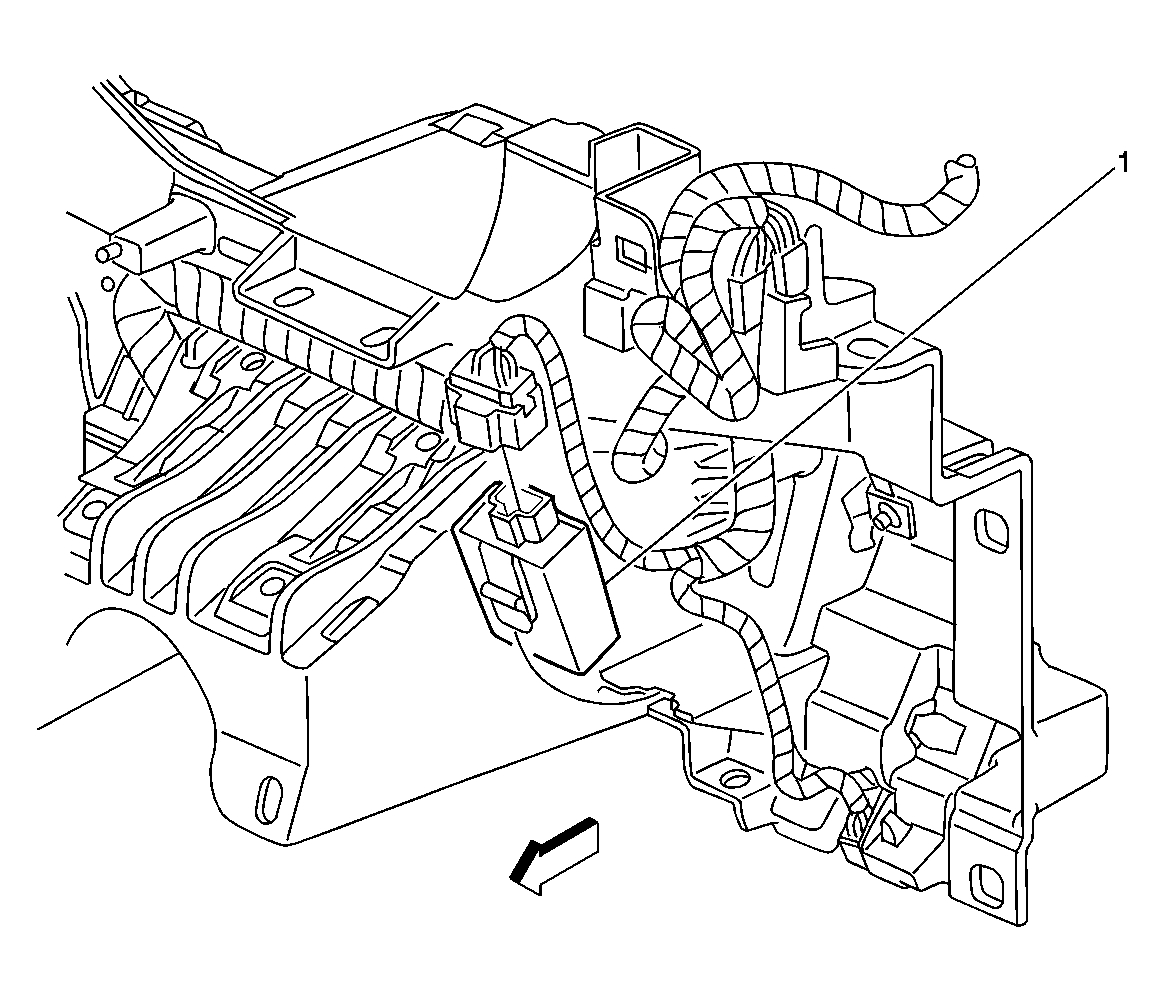

Fig 5: Left Side of Instrument Panel, above the Knee Bolster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/ Hazard Flasher Module

Fig 6: Under the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Lever
2	Tilt/Telescope Switch
3	Horn Switch (Hidden)
4	Tilt Actuator
5	Telescope Actuator
6	Steering Column Module

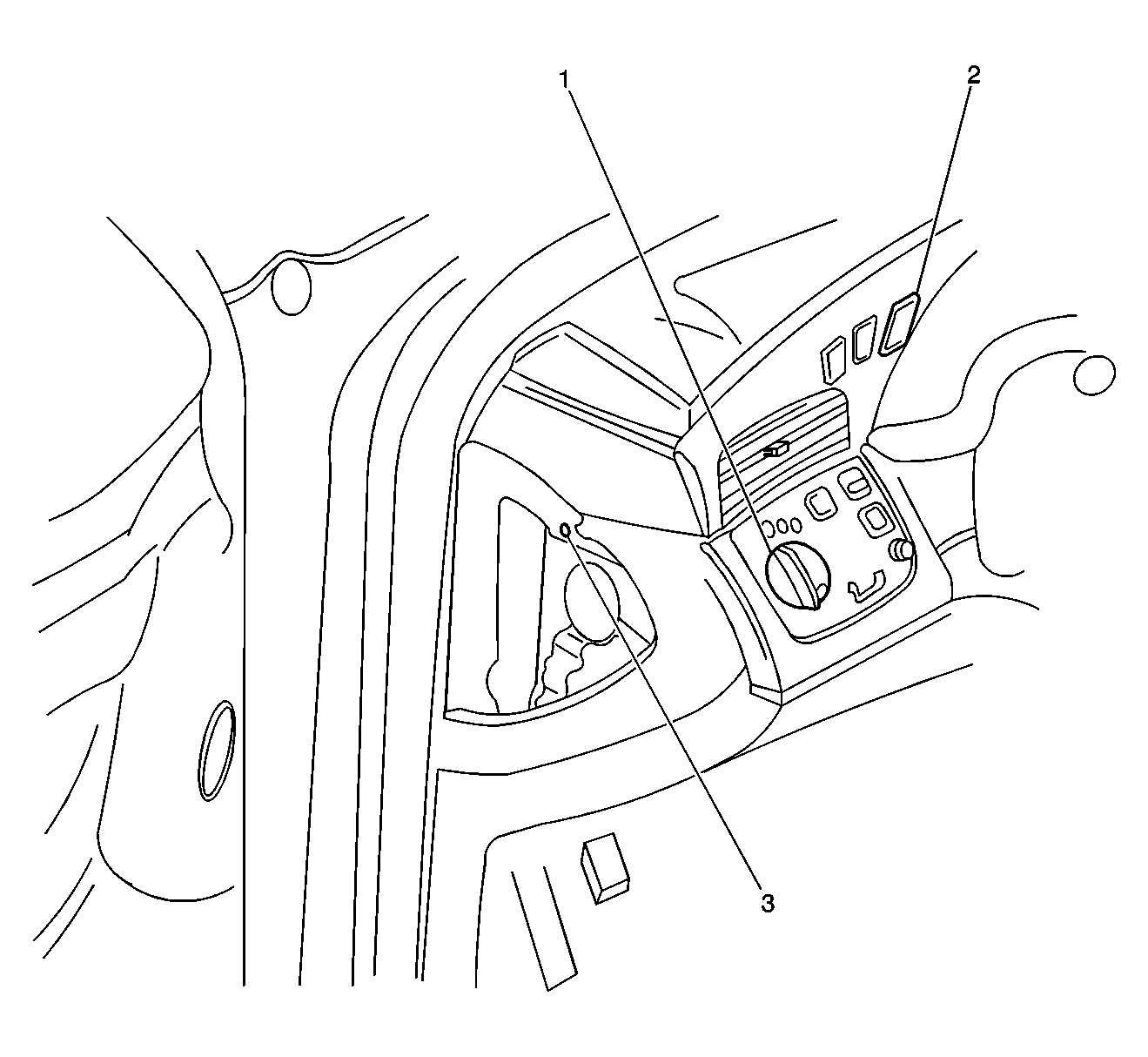

Fig 7: Left Side of the Instrument Panel, Near the Instrument Cluster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Driver Information Center (DIC) Switch - Left
3	Air Temperature Sensor - Upper Left, Upper Right Similar

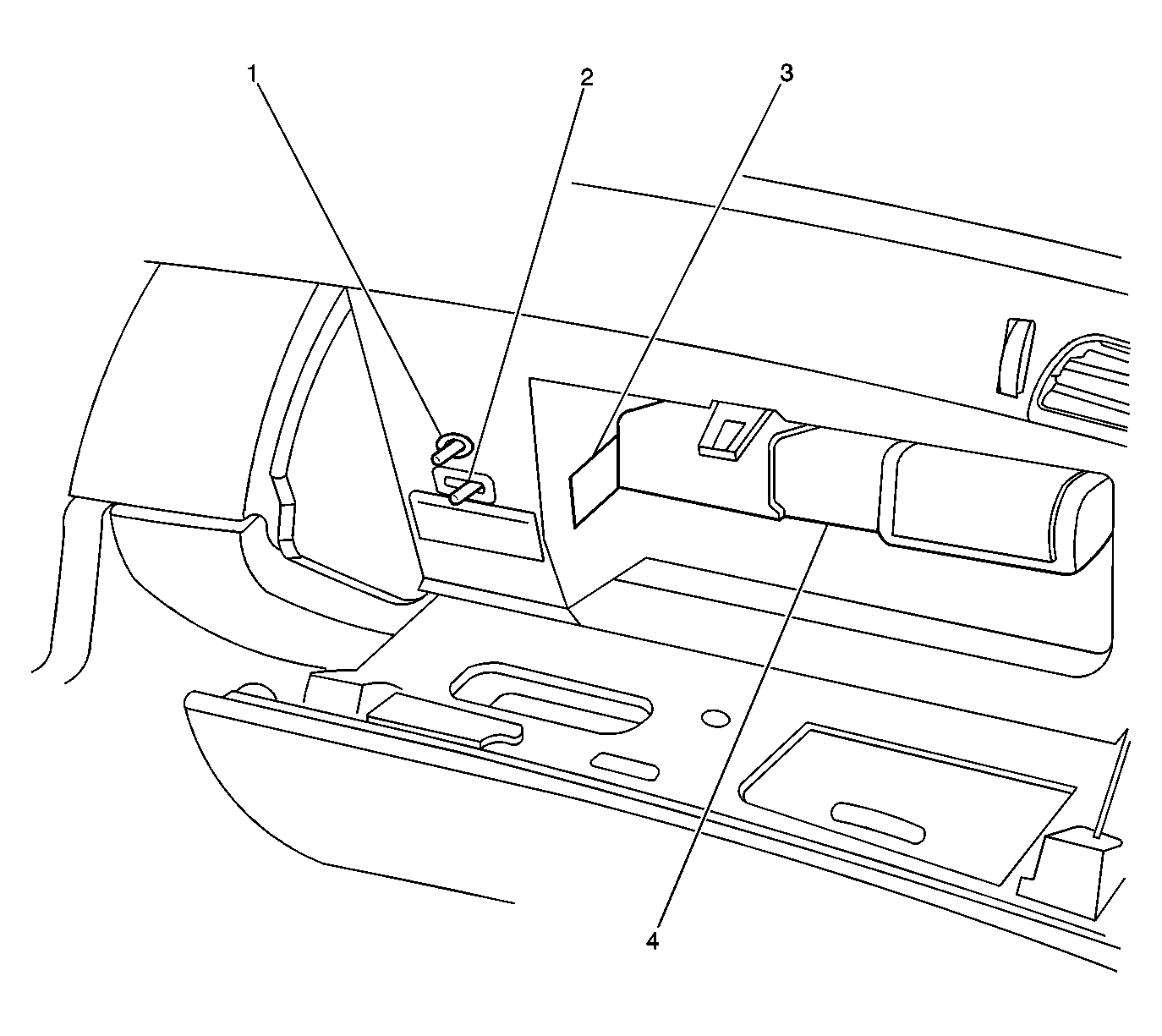

Fig 8: Right Side of the Instrument Panel, in the Instrument Panel Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp Switch
2	Valet Switch
3	I/P Compartment Lamp
4	Remote Playback Device - CD Changer

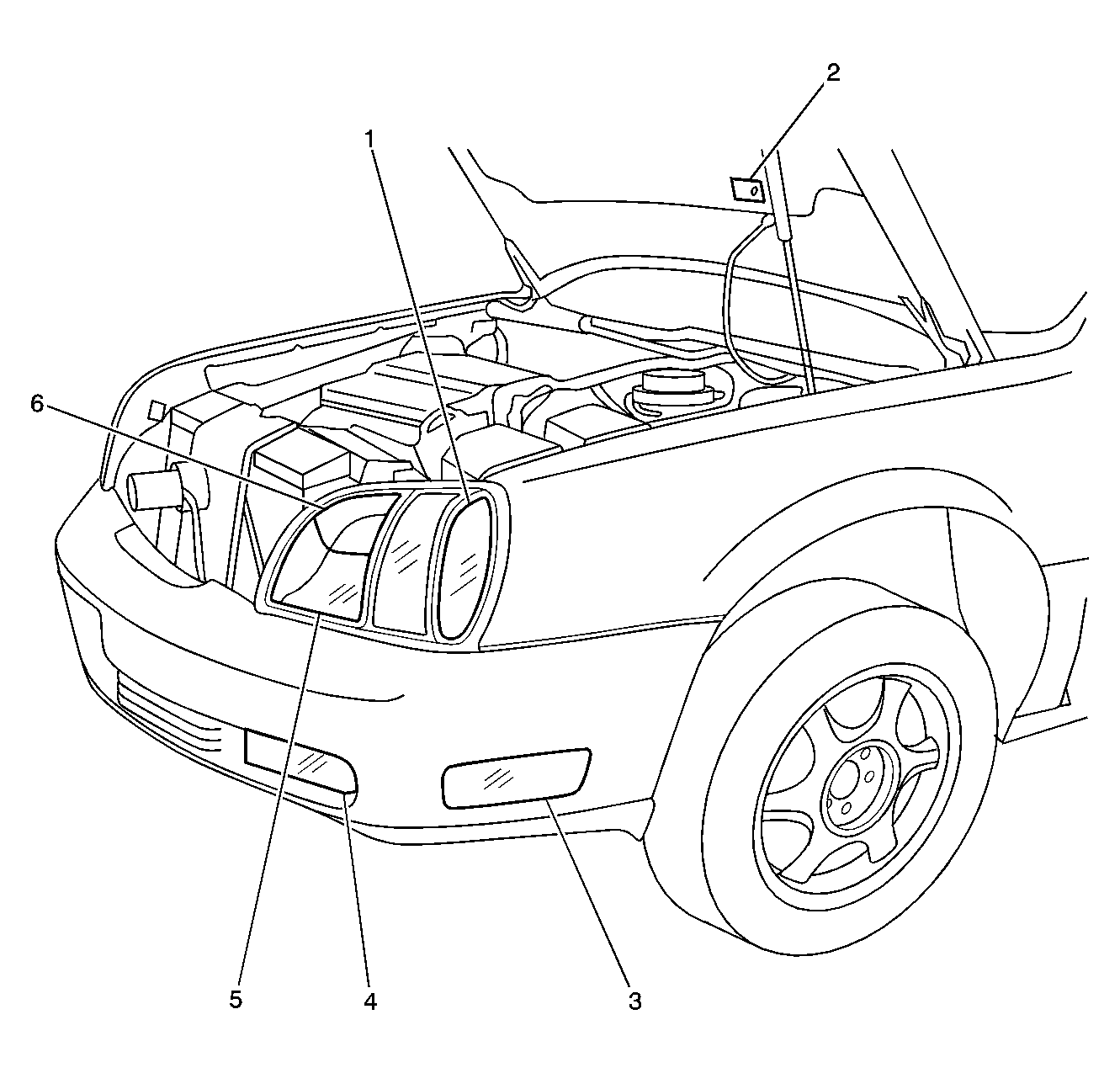

Fig 9: Left Front Corner of the Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF (RF Similar)
2	Underhood Lamp
3	Cornering Lamp - LF (RF Similar)
4	Fog Lamp - LF (RF Similar)
5	Headlamp - High Beam - LF (RF Similar)
6	Headlamp - Low Beam - LF (RF Similar)

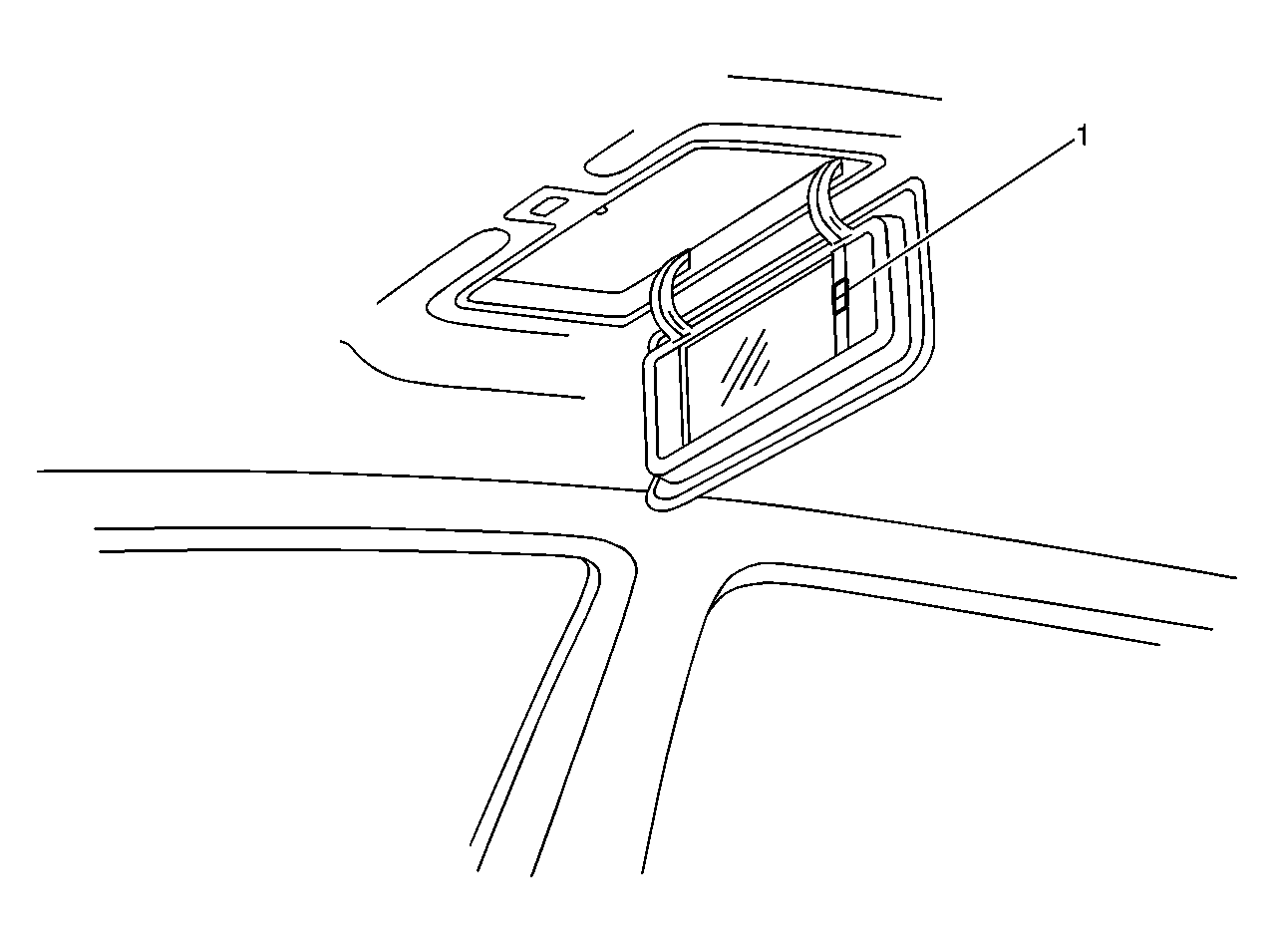

Fig 10: Rear of Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp- LR (RR Similar)

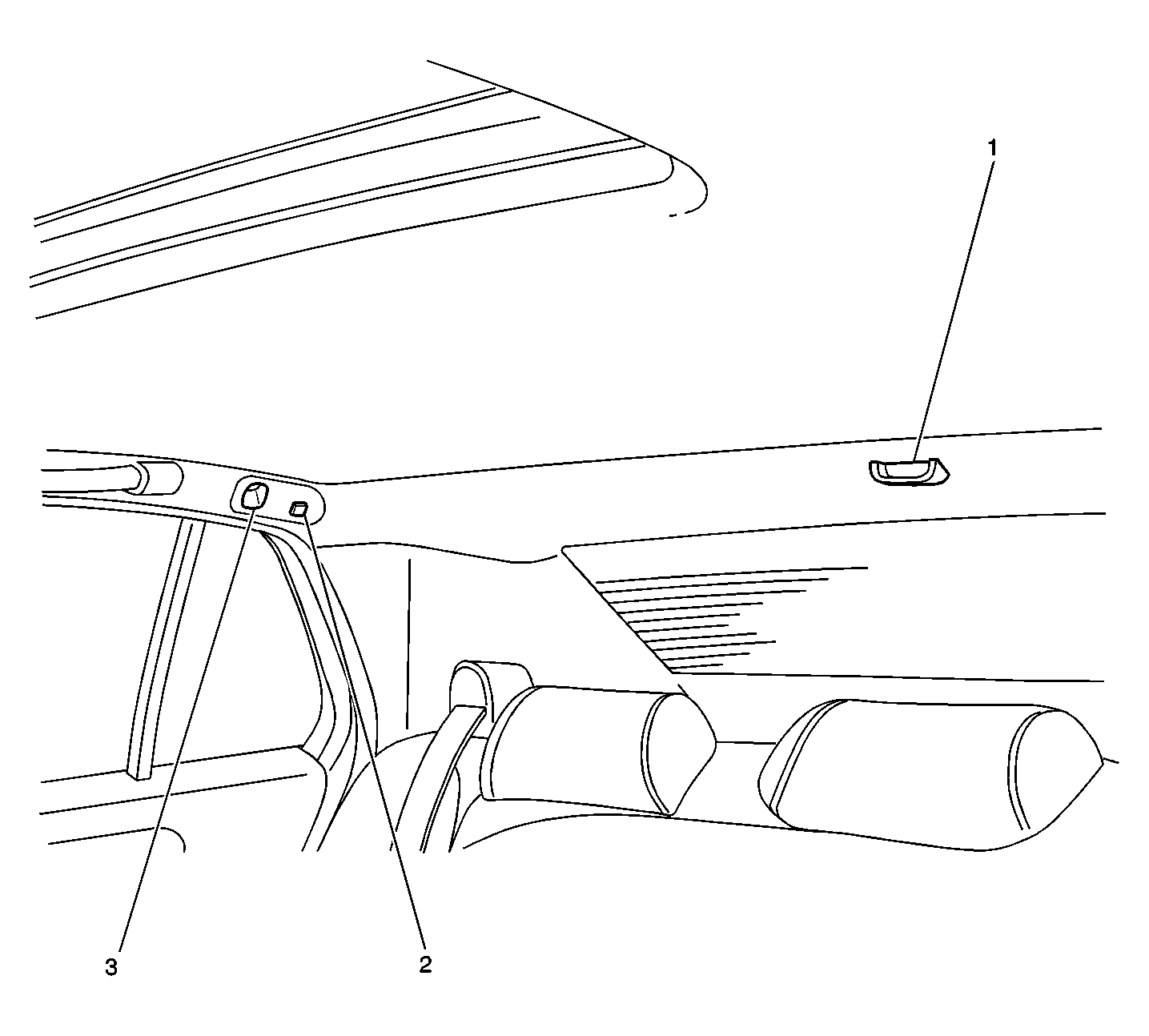

Fig 11: Passenger Compartment, to the Rear of the Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Display
2	Courtesy Lamp Switch - Right, Left Similar
3	Courtesy Lamp - Right, Left Similar

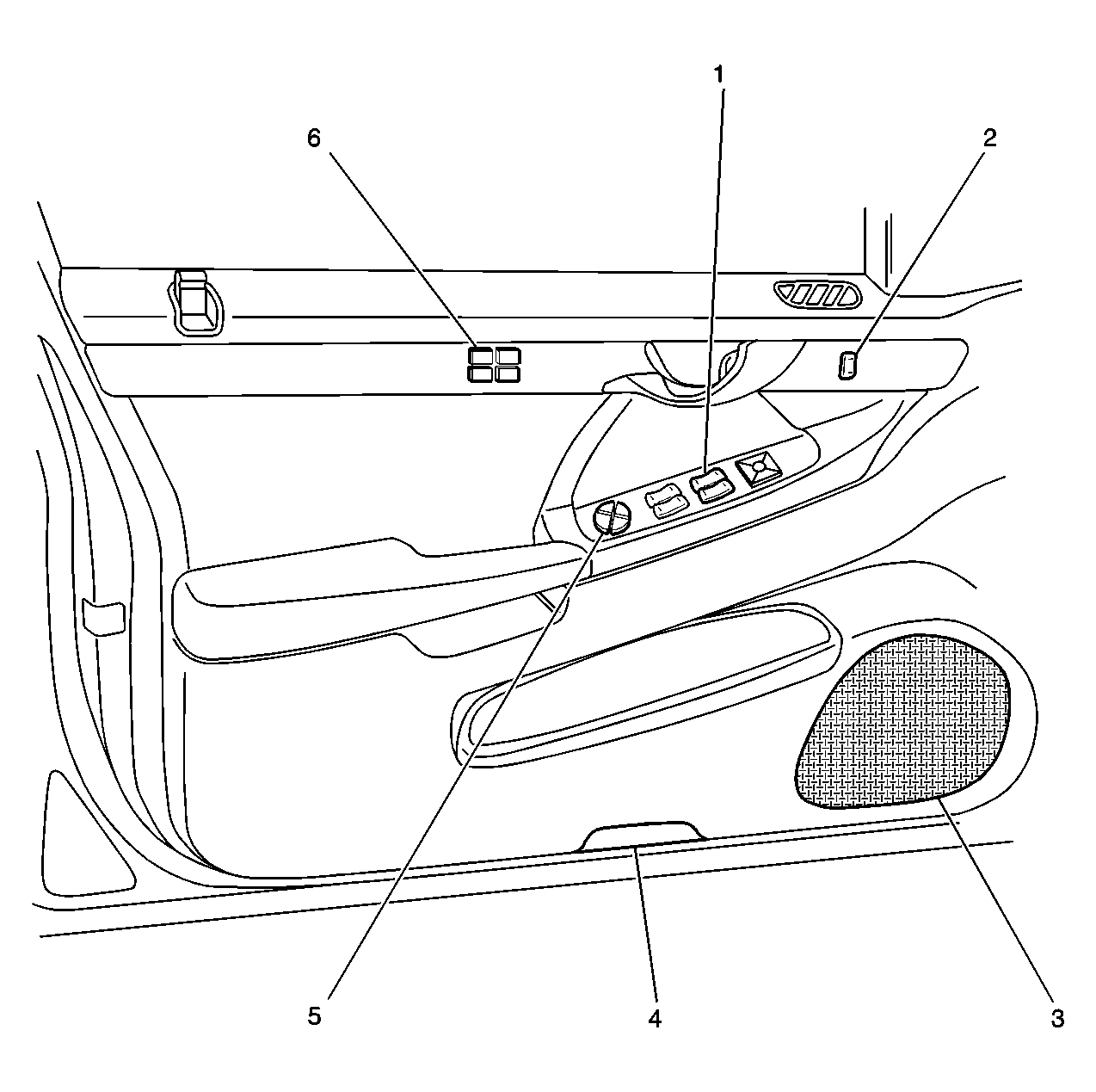

Fig 12: Left Front Door, on the Door Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Switch Assembly (DDSA), Right Similar
2	Door Lock Switch - Driver, Passenger Similar
3	Speaker - LF Door, RF Door Similar
4	Door Courtesy Lamp - LF, RF Similar
5	Heated Seat Switch - Driver, Passenger Similar
6	Memory/Personalization Function Switch

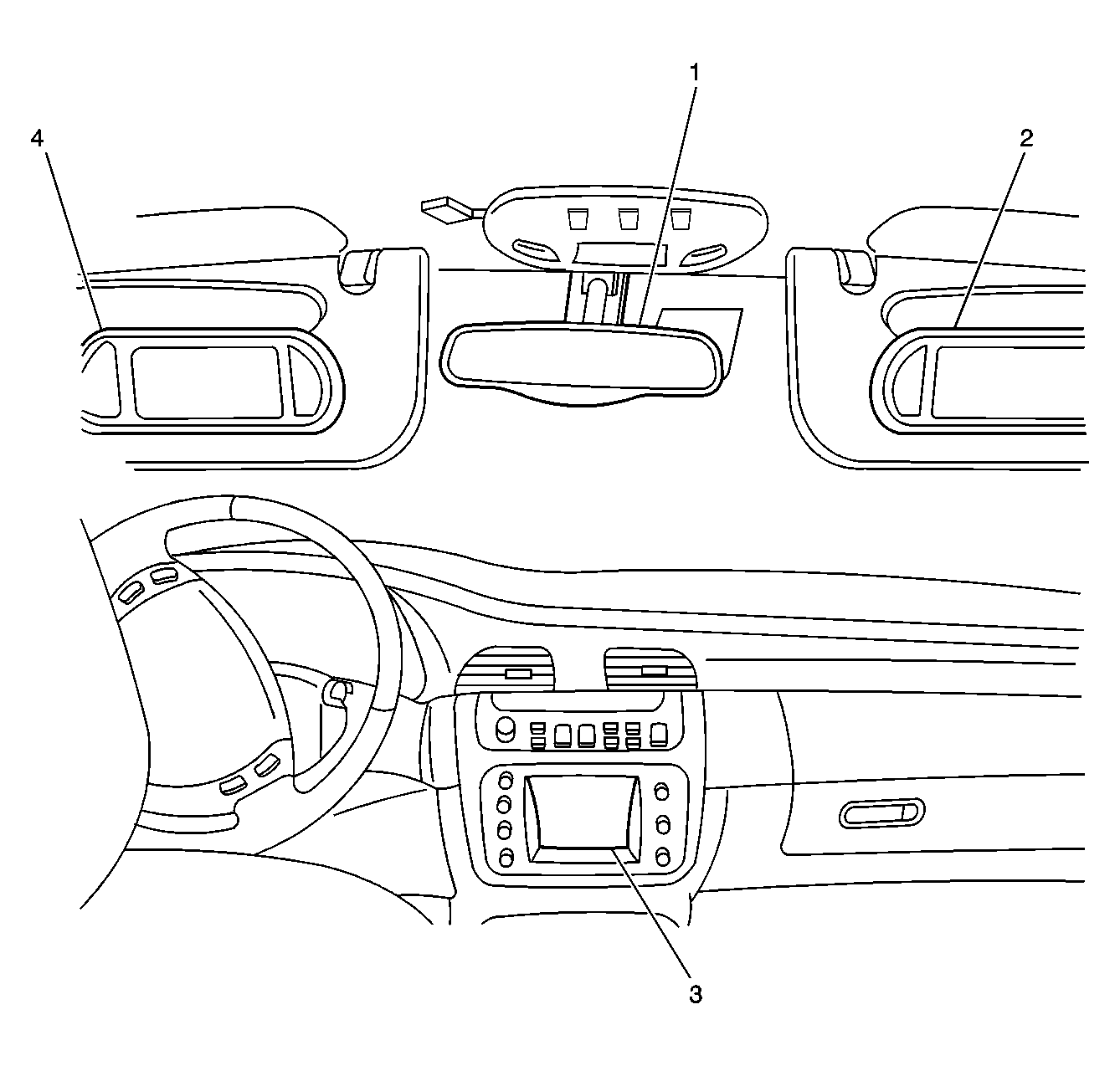

Fig 13: Front of the Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror
2	Vanity Mirror Lamp - Right
3	Navigation / Radio (w /UY4)
4	Vanity Mirror Lamp - Left

Fig 14: Front of the Left Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - LR, RR Similar
2	Cigar Lighter - LR, RR Similar
3	Speaker - LR Door, RR Similar
4	Door Courtesy Lamp - LR Door, RR Similar
5	Seat Lumbar Switch - LR, RR Similar
6	Heated Seat Switch - LR, RR Similar
7	Window Switch - LR, RR Similar

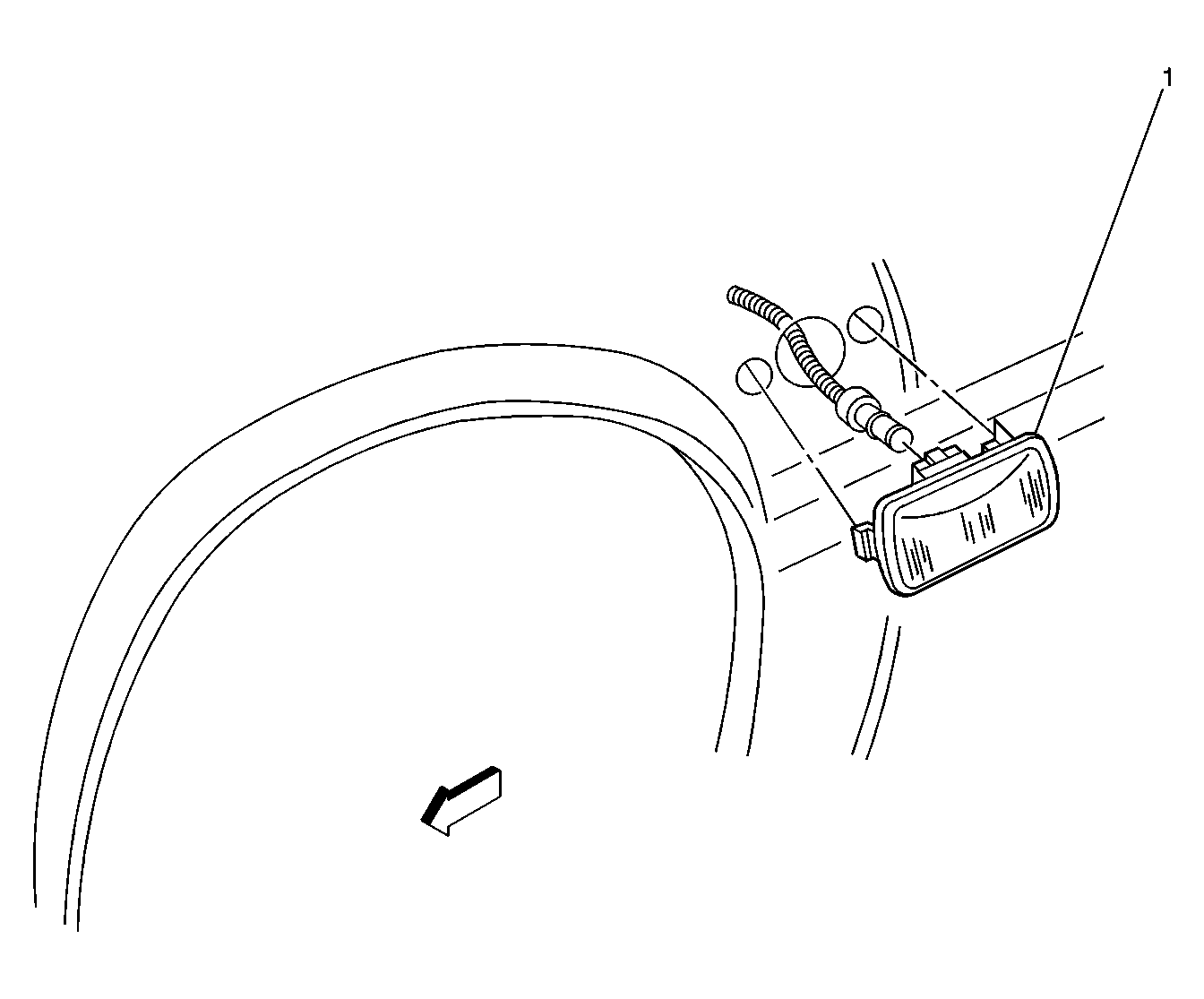

Fig 15: Front Left Corner of the Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Repeater Lamp - Left, Right Similar

Fig 16: Passenger Compartment, Center Front of the Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Slide Switch (Part of the Power Sunroof Switch Assembly)
2	Rear Window Sunshade Switch
3	Overhead Console Courtesy Lamp
4	Noise Compensation Microphone
5	Outside Moisture Sensor
6	Inside Rearview Mirror
7	Overhead Console Courtesy Lamp
8	Cellular Telephone Microphone
9	Garage Door Opener
10	Sunroof Vent Switch (Part of the Power Sunroof Switch Assembly)
11	Overhead Console

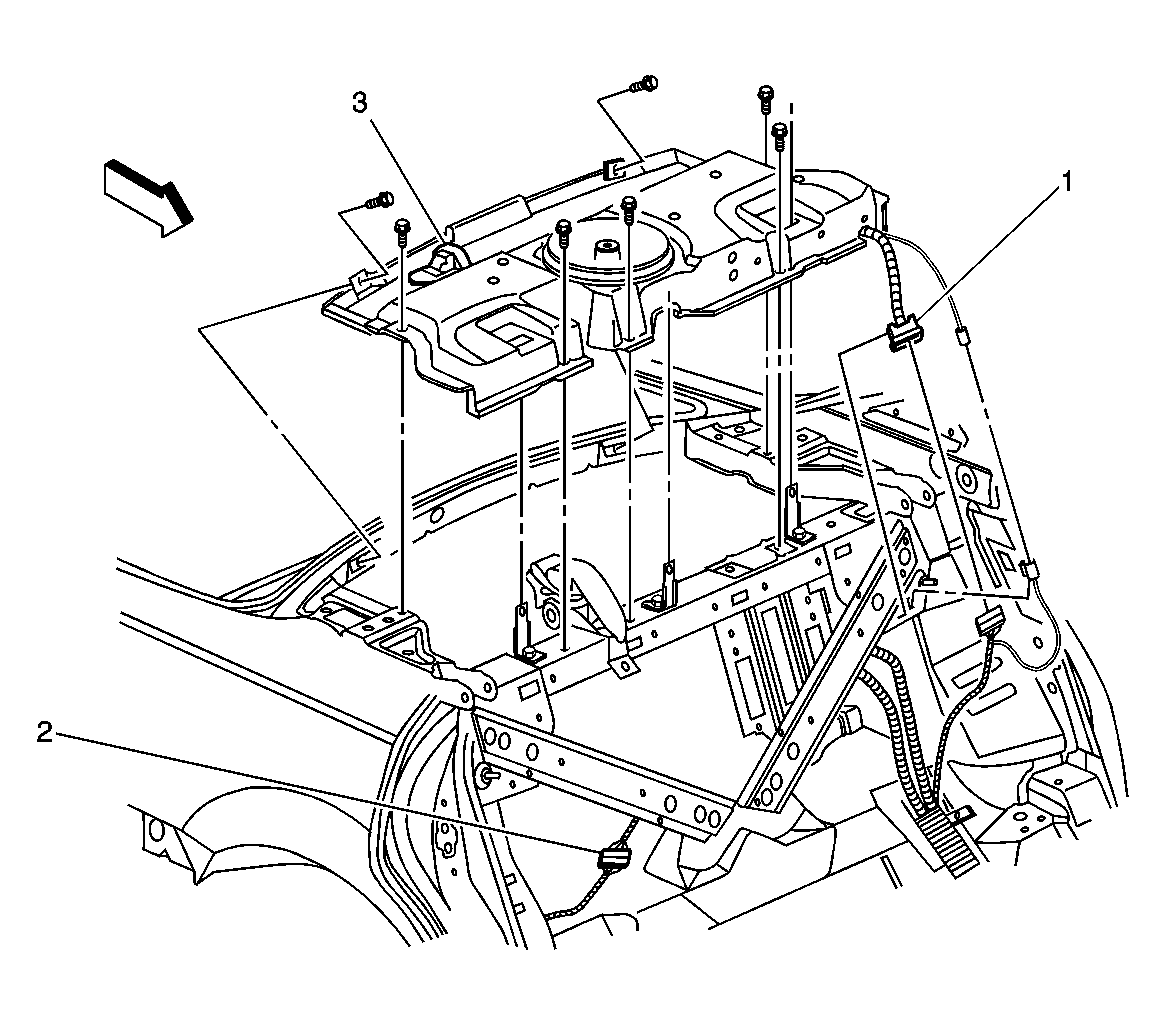

Fig 17: Passenger Compartment, Behind the Rear Seat Back Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C322
2	C345
3	Rear Compartment Lamp

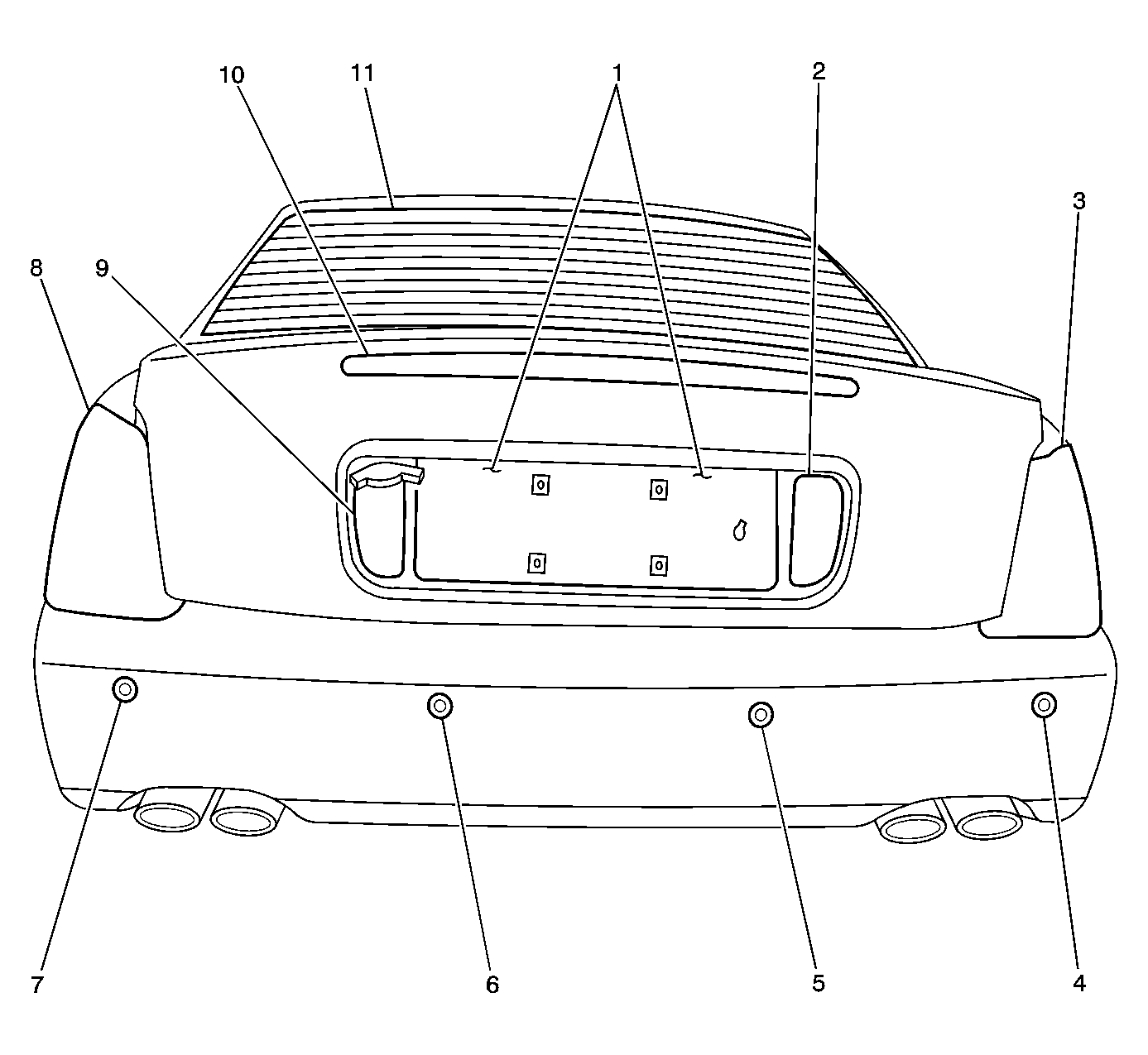

Fig 18: Rear of the Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	License Lamps
2	Backup Lamp - Right
3	Tail Lamp - Right
4	Object Sensor - RR Corner
5	Object Sensor - RR Middle
6	Object Sensor - LR Middle
7	Object Sensor - LR Corner
8	Tail Lamp - Left
9	Backup Lamp - Left
10	Center High Mount Stop Lamp (CHMSL)
11	Rear Window Defogger Grid
