Home >> Cadillac >> 2004 >> XLR V8-4.6L VIN A >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Thread Repair Specifications >> Engine Front Cover - Second Design

April 5, 2026: LEMON Manuals is launched! Read the announcement.

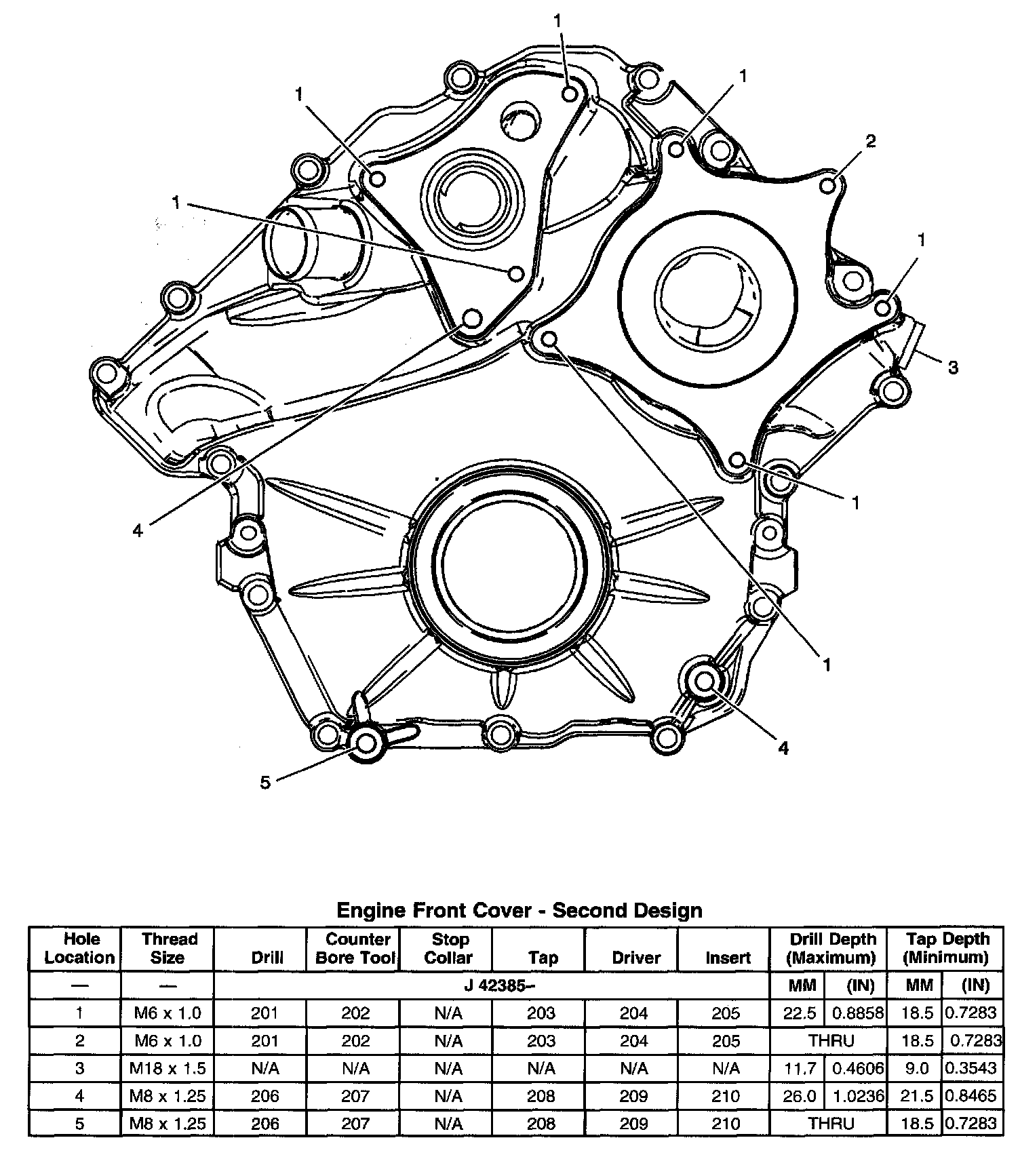

Engine Front Cover - Second Design
