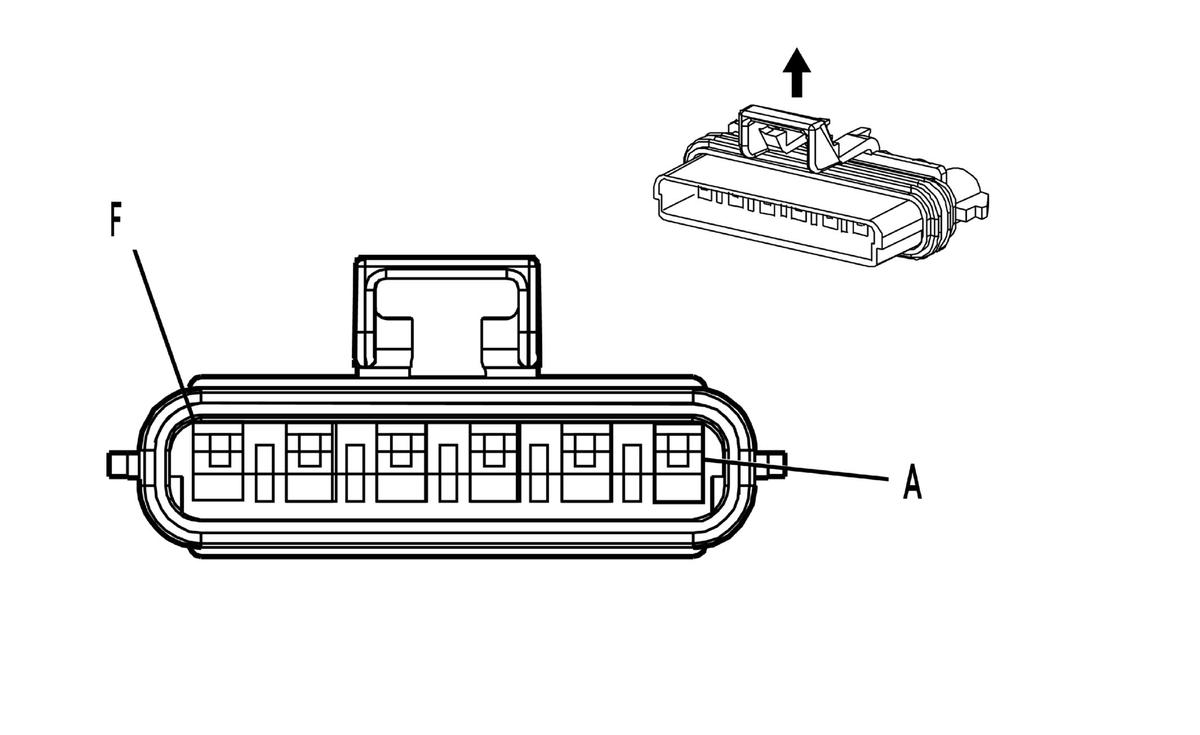

Fuel Pump Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12160746 Service: 12160746 6-Way F Metri-Pack 280 Series Flexlock Sealed (L-GY)
Pin	Wire Color	Circuit No.	Function
A	PK	239	Ignition 1 Voltage
B	GY	120	Fuel Pump Speed Output Circuit
C	D-GN/WH	465	Fuel Pump Relay Control
D	BN	5546	Fuel Pump Speed Control Feedback Signal
E	PK	1580	Fuel Pump Motor Low Reference
F	BK	850	Ground
