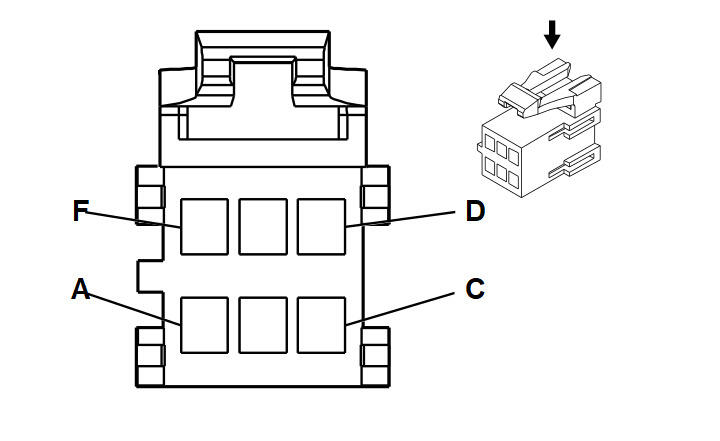

Inflatable Restraint I/P Module Disable Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 15305286 Service: 6-Way Metri-Pack 150 Series (YE)
Pin	Wire Color	Circuit No.	Function
A	TN/BK	371	I/P Module Disable Switch - Signal
B	PK	739	Ignition 1 Voltage
C	BN	9	Park Lamp Supply Voltage
D	-	-	Not Used
E	L-BU	1803	Passenger I/P Module Suppression Indicator Supply Voltage
F	BK/WH	1751	Ground
