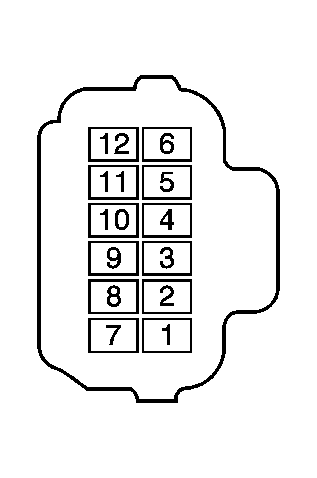

Distance Sensing Cruise Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 15419270 Service: 88953398 12-Way F (BK)
Pin	Wire Color	Circuit No.	Function
1	RD/WH	340	Battery Positive Voltage
2	BK	1250	Ground
3	-	-	Not Used
4	TN	2501	ACC High Speed GMLAN Serial Data Bus -
5	TN	2501	ACC High Speed GMLAN Serial Data Bus -
6	-	-	Not Used
7	PK	1239	Ignition 1 Voltage
8-9	-	-	Not Used
10	TN/BK	2500	ACC High Speed GMLAN Serial Data Bus +
11	TN/BK	2500	ACC High Speed GMLAN Serial Data Bus +
12	-	-	Not Used
