Body Control System Schematics

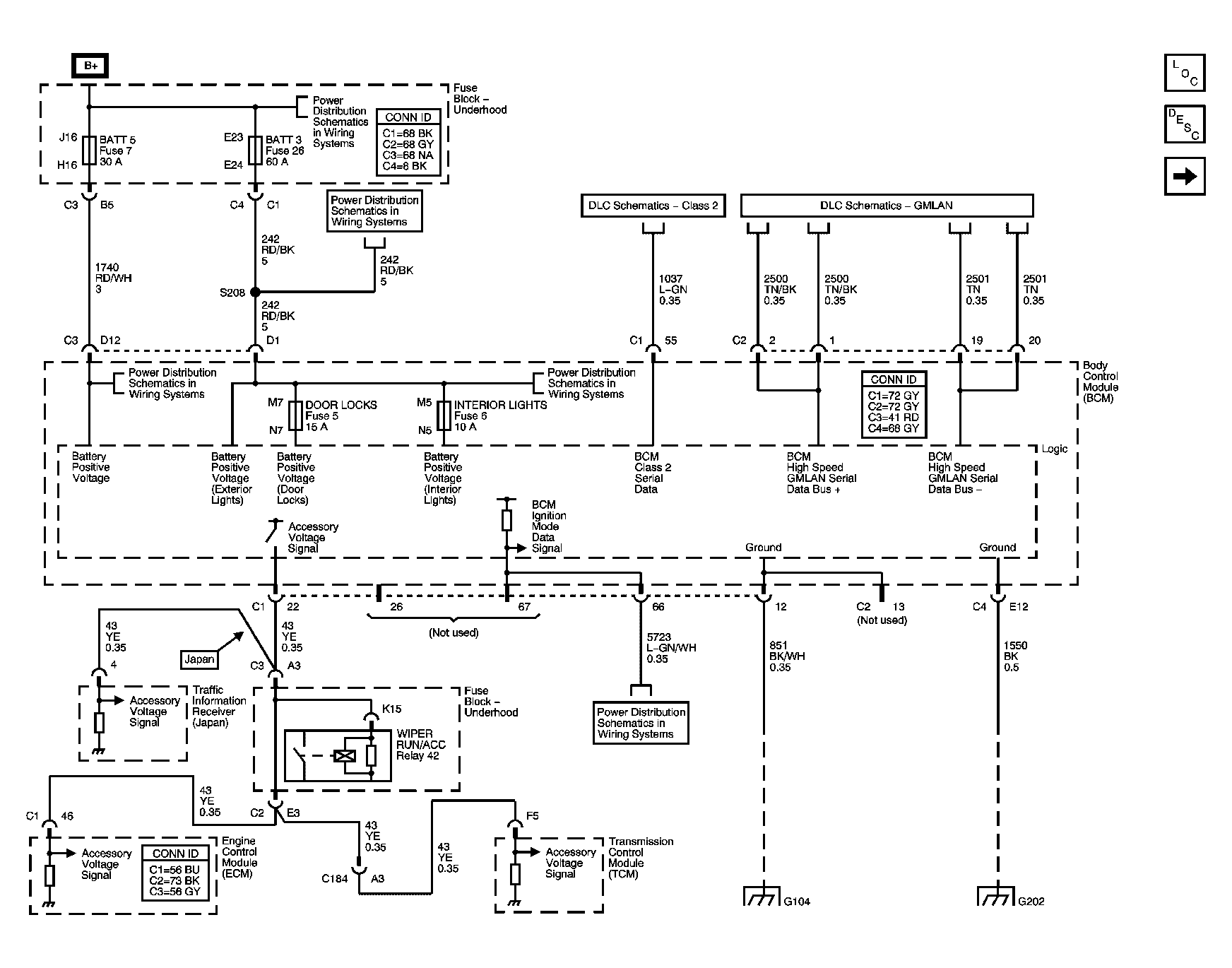

Fig 1: DLC, Ground and Power Schematic

GM1249539

Courtesy of GENERAL MOTORS CORP.

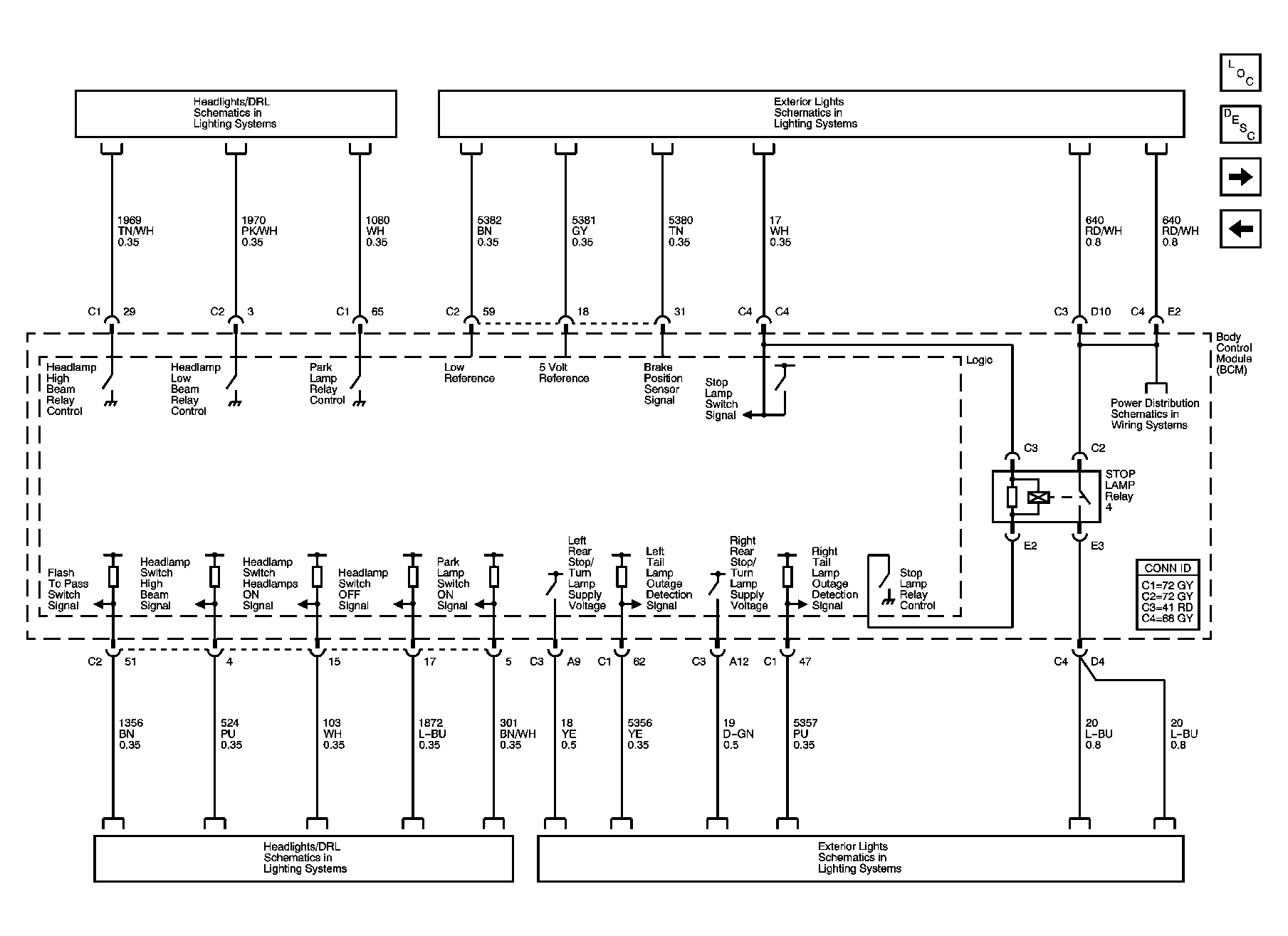

Fig 2: Lighting References Schematic - 1 of 2

GM1388804

Courtesy of GENERAL MOTORS CORP.

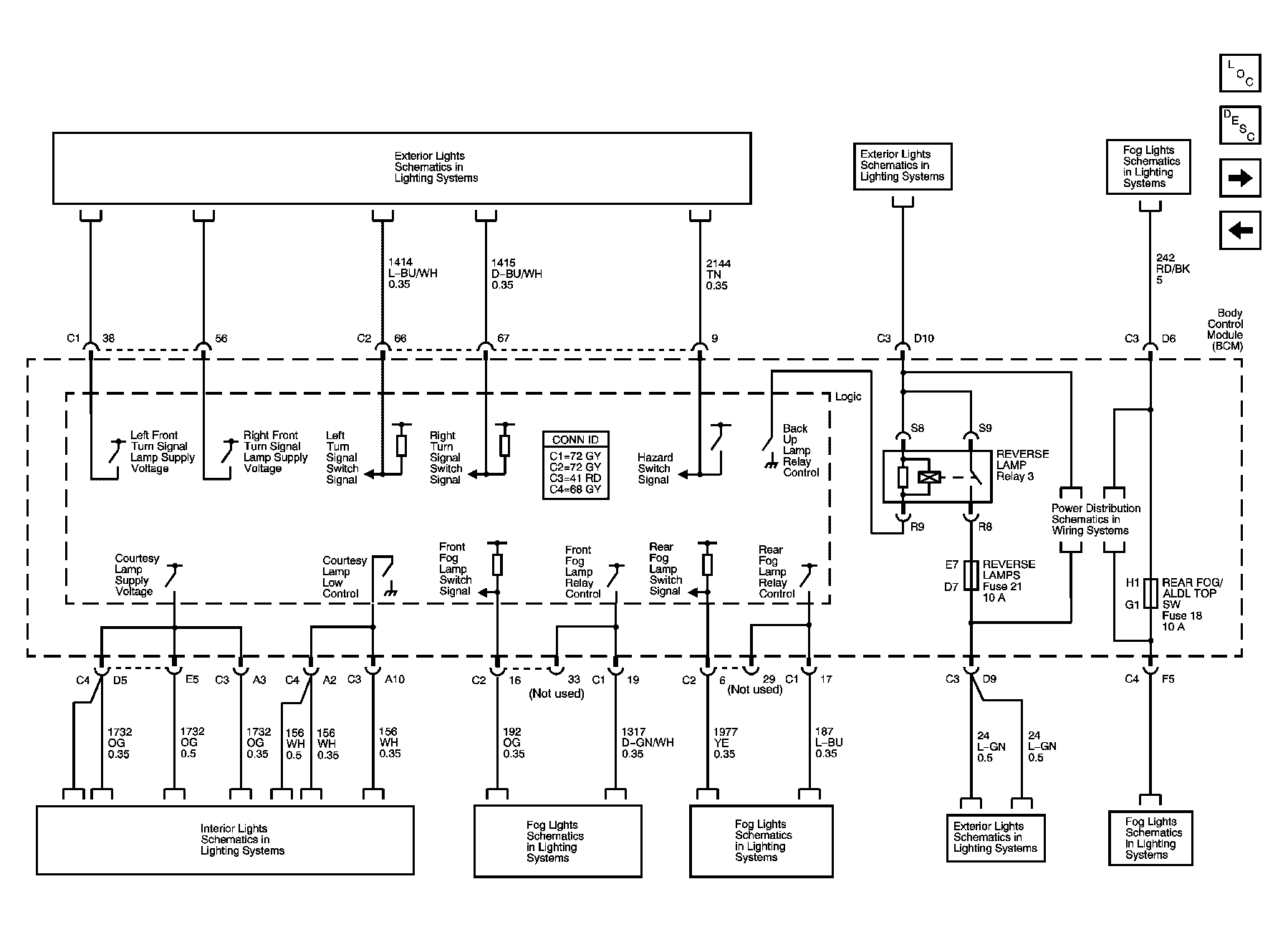

Fig 3: Lighting References Schematic - 2 of 2

GM1388807

Courtesy of GENERAL MOTORS CORP.

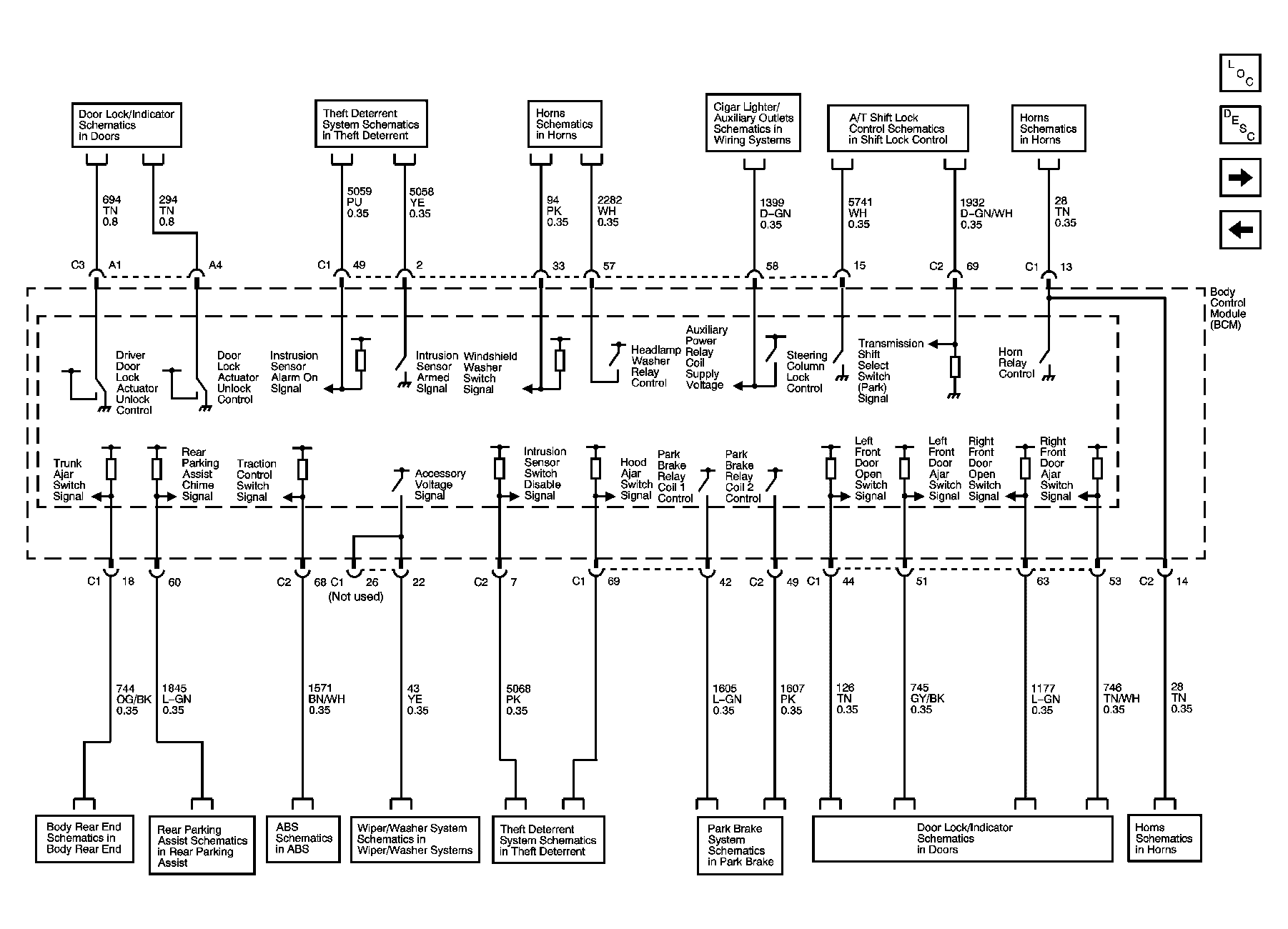

Fig 4: Subsystems References Schematic

GM1388812

Courtesy of GENERAL MOTORS CORP.

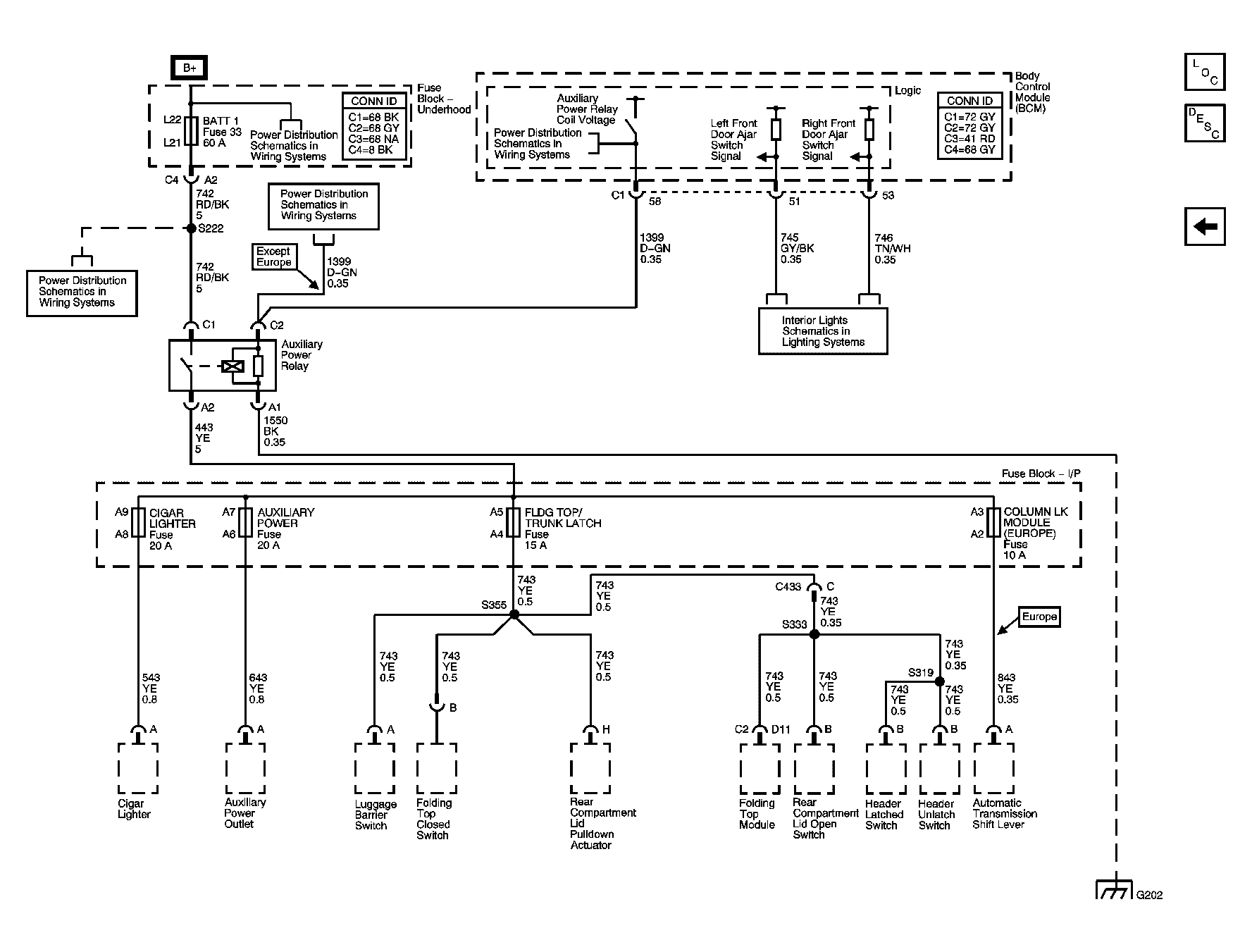

Fig 5: Auxiliary Power Schematic

GM1199351

Courtesy of GENERAL MOTORS CORP.
