Installation Procedure

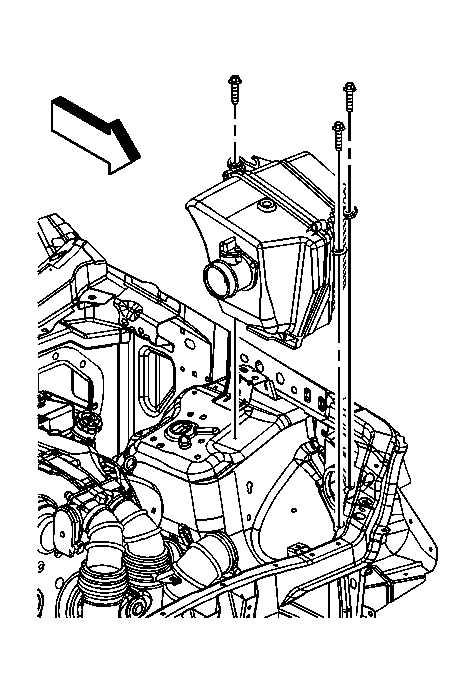

    Fig 1: View Of Air Cleaner
    GM1469647Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air cleaner bolts.

    Tighten:  Tighten the air cleaner bolts to 9 N.m (78 lb in).

  3. Connect the MAF electrical connector.
  4. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
