Wiper/Washer System Connector End Views

Outside Moisture Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324252 4-Way F Micro-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
1	LT GRN	482	Outside Moisture Sensor Signal 2
2	BLK	481	Outside Moisture Sensor Signal 1
3	BLK/WHT	851	Ground
4	YEL	43	Accessory Voltage

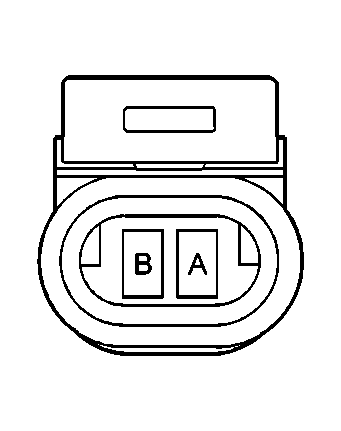

Windshield Washer Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162195 2-Way F Metri-Pack 150.2 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	250	Ground
B	BLK/WHT	99	Windshield Washer Fluid Level Signal

Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	250	Ground

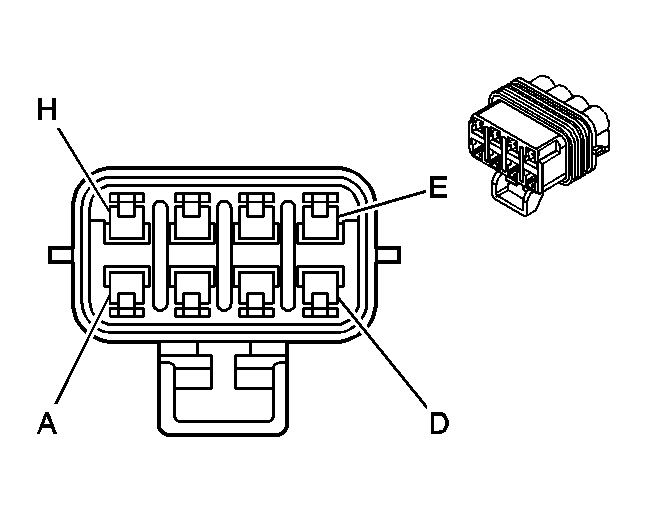

Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176335 8-Way F Metri-Pack 280 Series (NAT)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	YEL	143	Accessory Voltage
C	BLK	150	Ground
D	BLK	481	Outside Moisture Sensor Signal 1
E	GRY	478	Windshield Wiper Switch Signal 2
F	LT GRN	482	Outside Moisture Sensor Signal 2
G	DK BLU	477	Windshield Wiper Switch Signal 1
H	PPL	92	Windshield Wiper Motor High Speed

Windshield Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15339058 7-Way F Metri-Pack 150 Series (GRY)
Pin	Wire Color	Circuit No.	Function
G	-	-	Not Used
H	YEL	43	Accessory Voltage
J	-	-	Not Used
K	PPL	92	Windshield Wiper Motor High Speed
L	BRN	477	Windshield Wiper Switch Signal 1
M	DK GRN	478	Windshield Wiper Switch Signal 2
N	PNK/BLK	1538	Windshield Wiper Switch On Signal
