Door Control Module Schematics

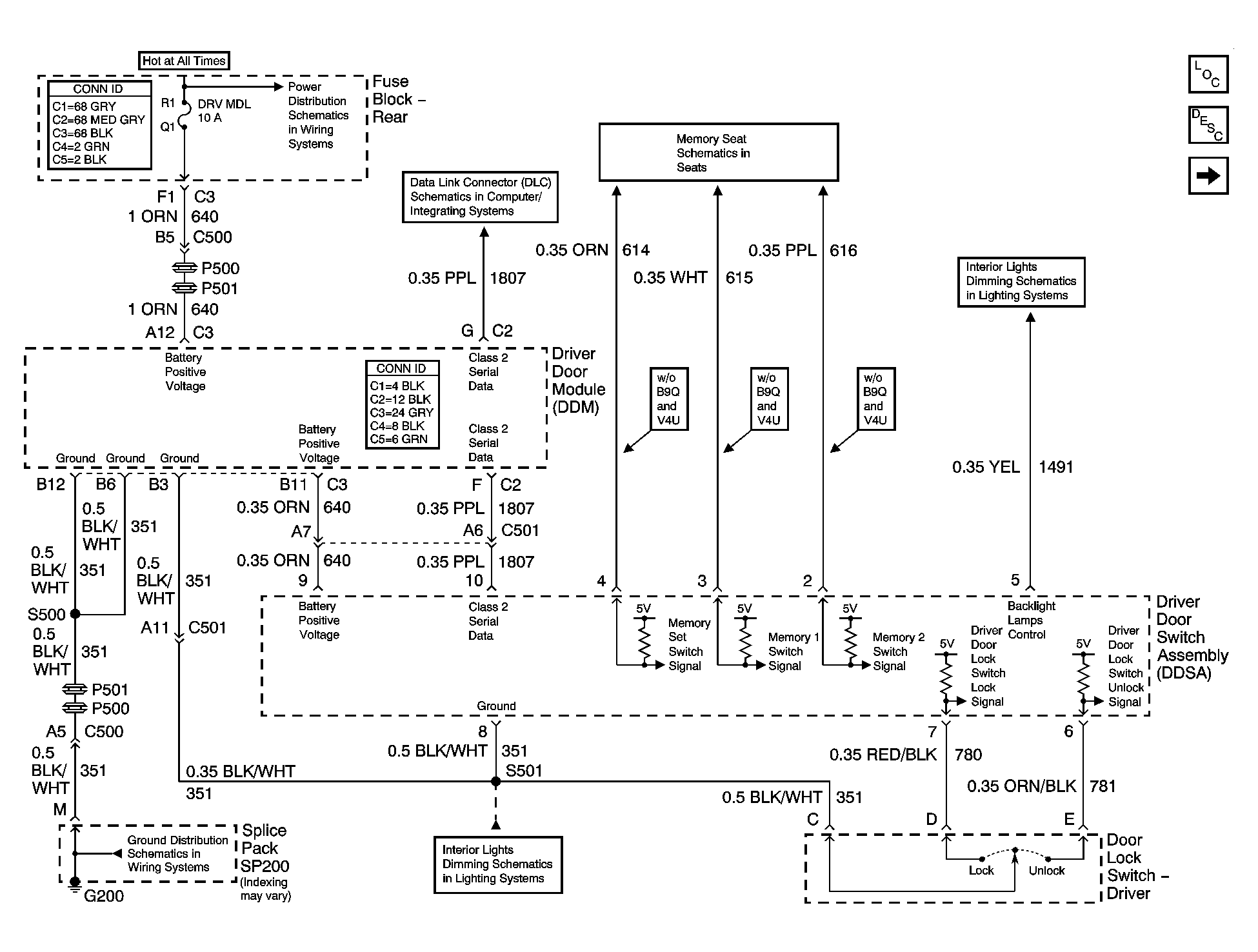

Fig 1: Driver Door Switch Assembly (DDSA) Power, Ground Inputs and Outputs

Courtesy of GENERAL MOTORS CORP.

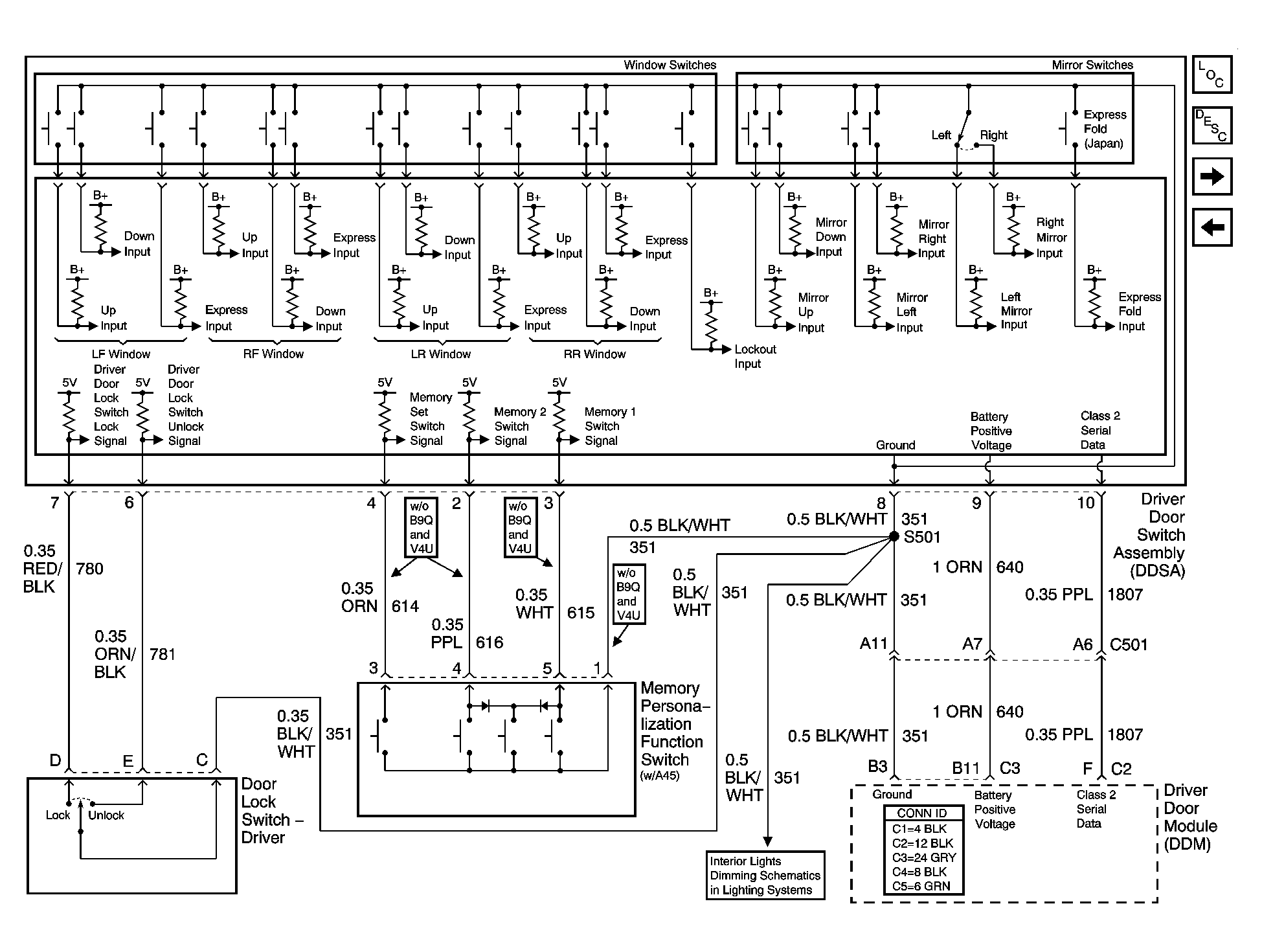

Fig 2: Driver Door Switch Assembly (DDSA) Internal Details w/Memory (A45)

Courtesy of GENERAL MOTORS CORP.

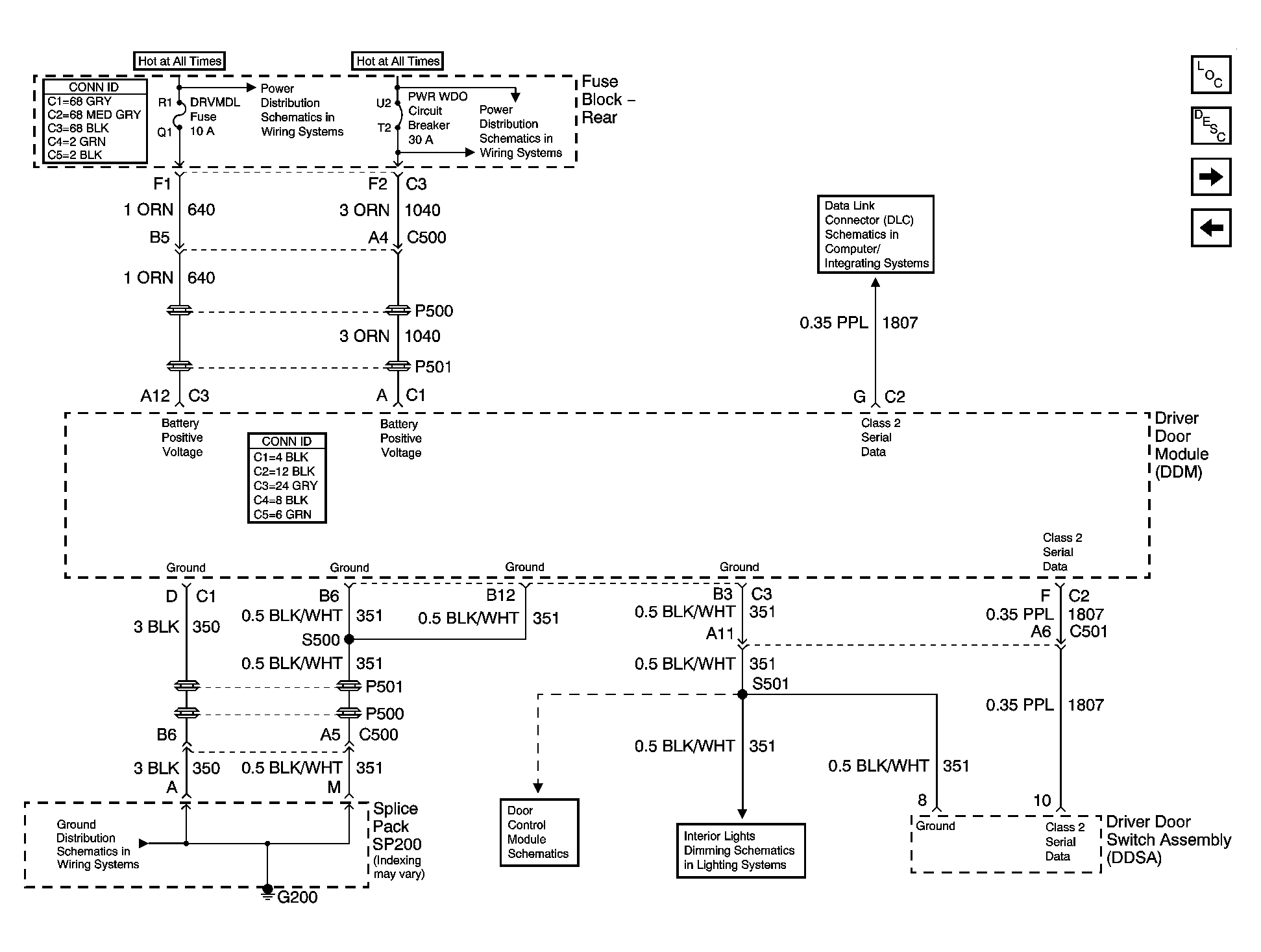

Fig 3: Driver Door Module (DDM) Power and Ground Input and Outputs - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

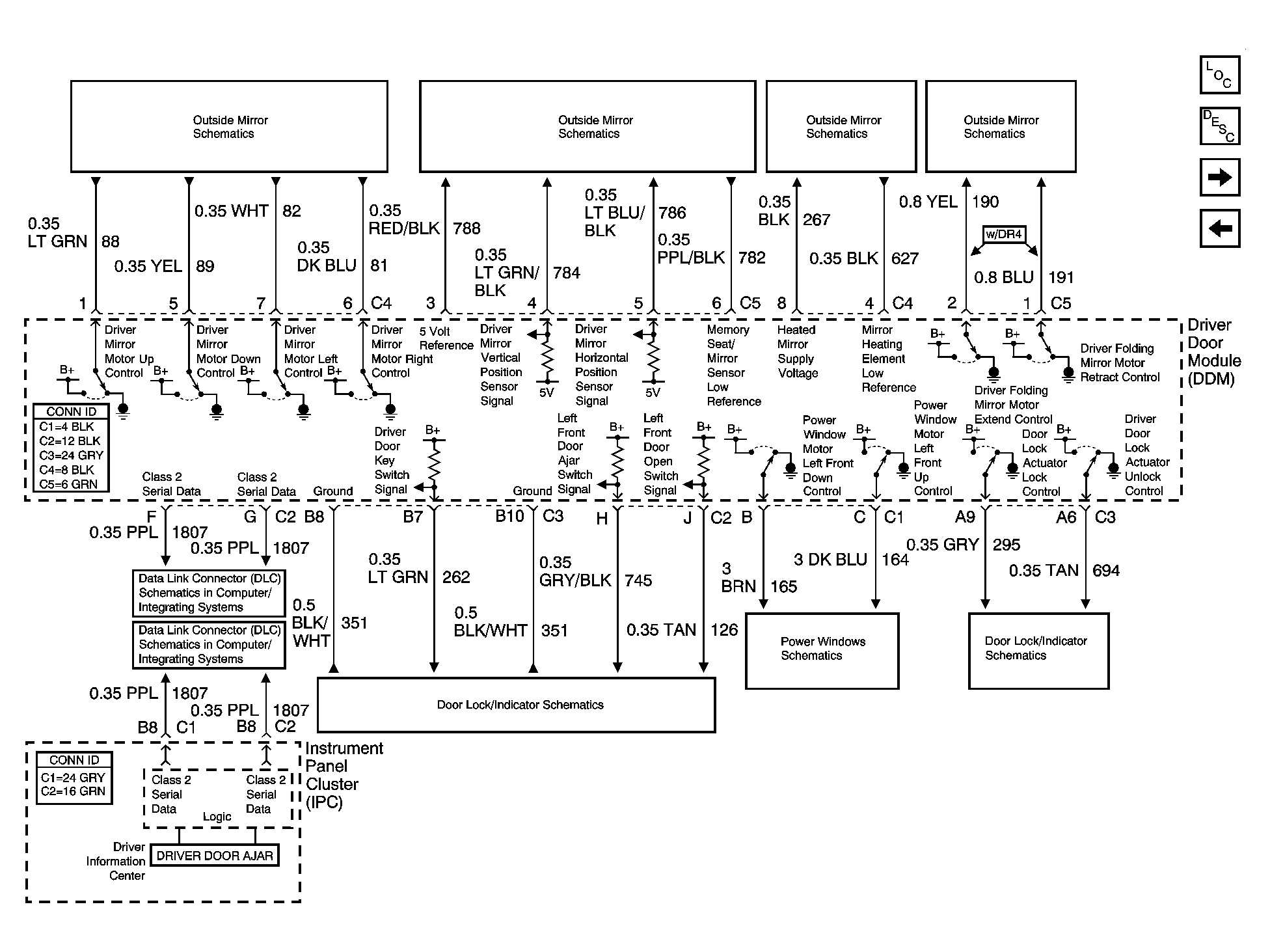

Fig 4: Driver Door Module (DDM) Power, Ground Inputs and Outputs - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

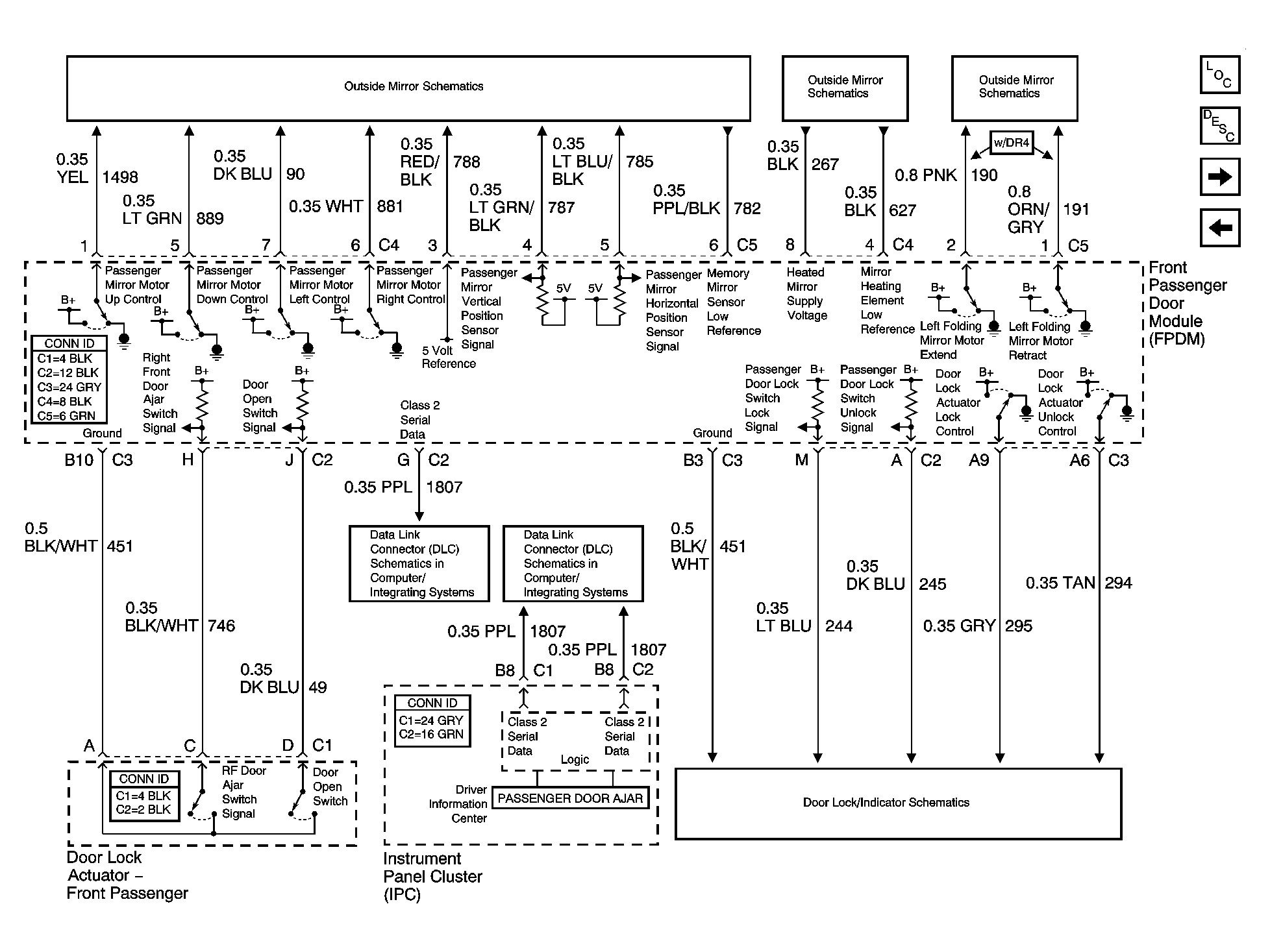

Fig 5: Front Passenger Door Module (FPDM) Power, Ground Inputs and Outputs - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

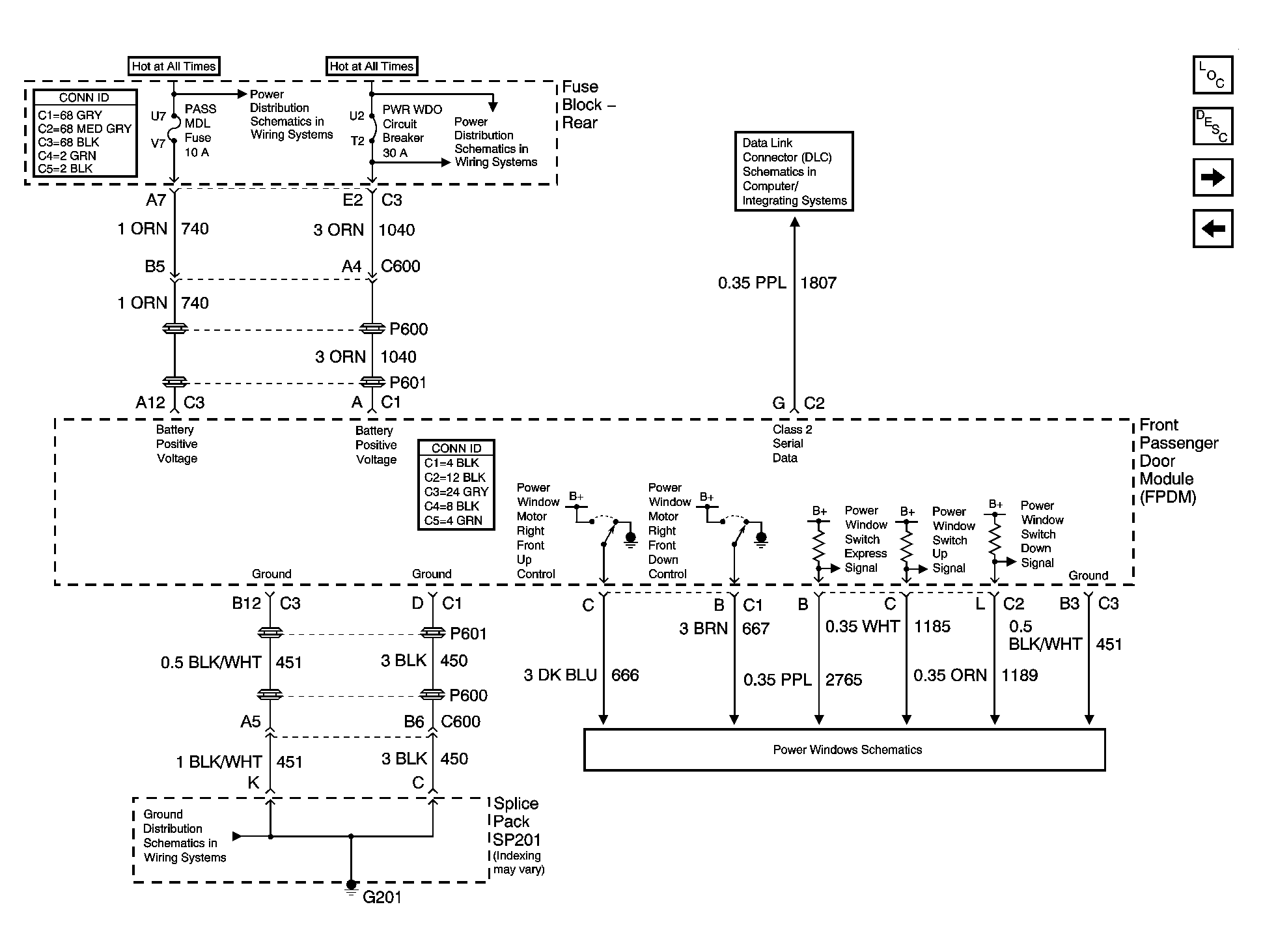

Fig 6: Front Passenger Door Module (FPDM) Power, Ground Inputs and Outputs - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

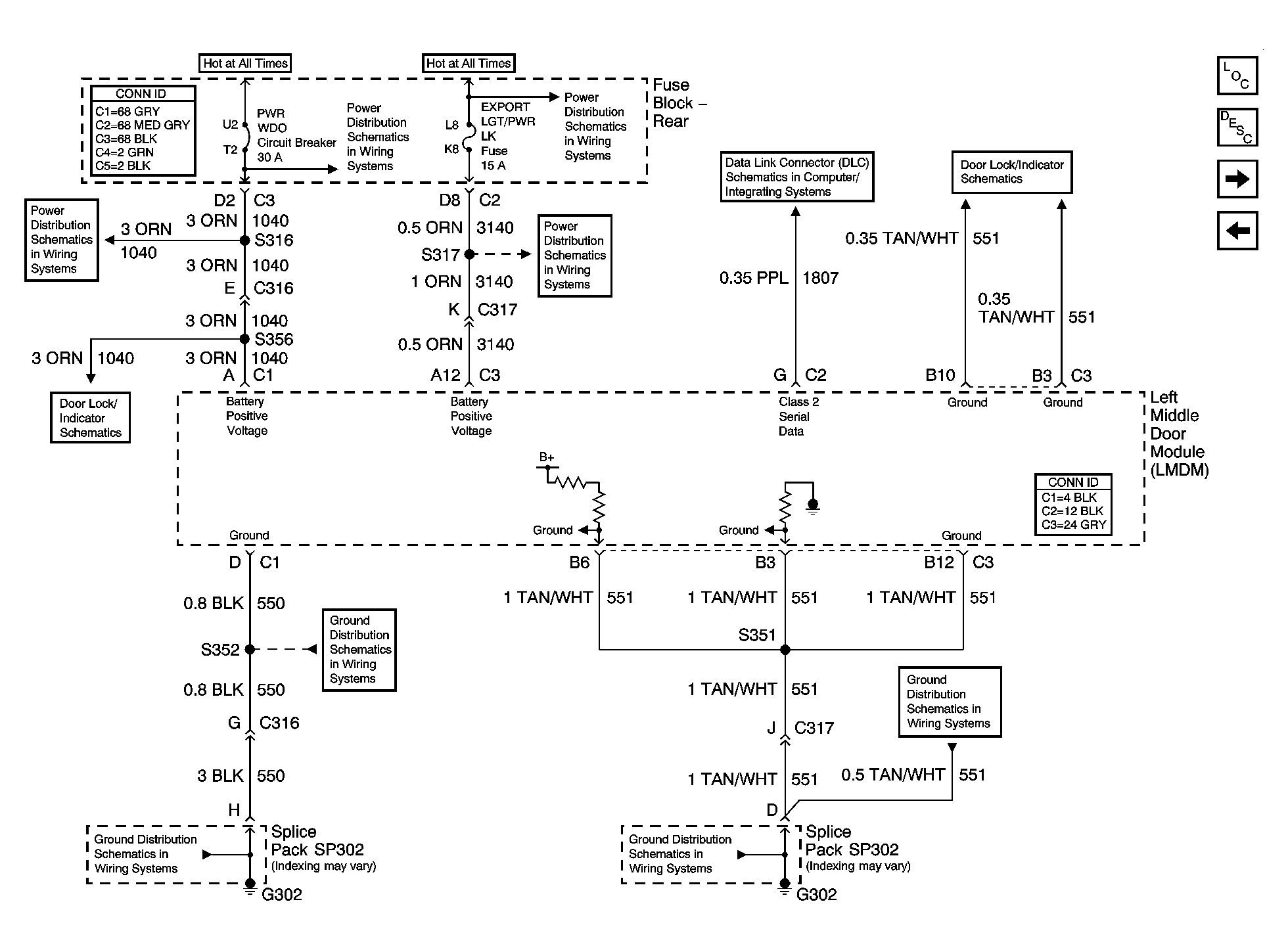

Fig 7: Left Middle Door Module (LMDM) Power and Ground Inputs and Outputs (V4U)

Courtesy of GENERAL MOTORS CORP.

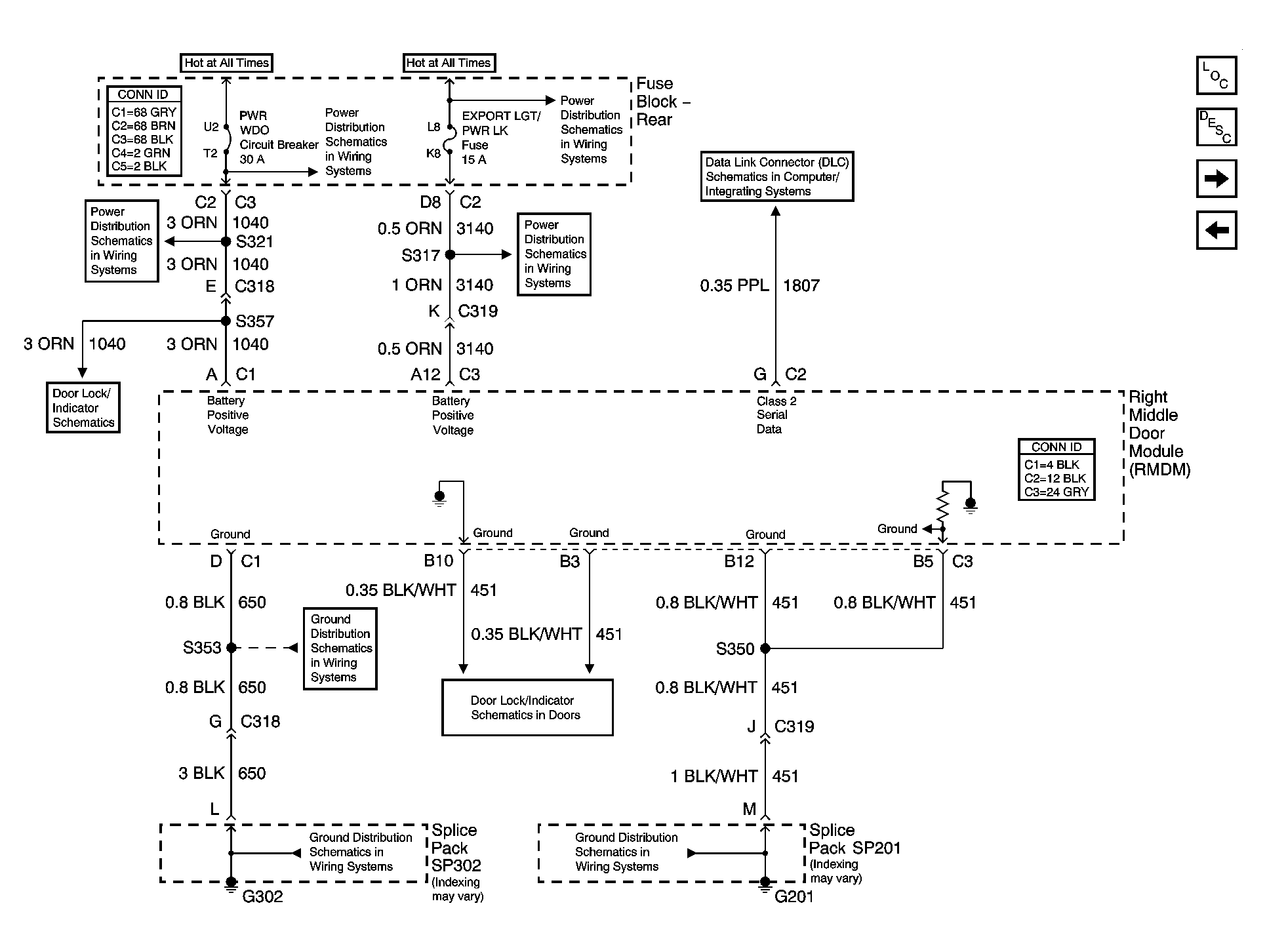

Fig 8: Right Middle Door Module (RMDM) Power, Ground Inputs and Outputs (V4U)

Courtesy of GENERAL MOTORS CORP.

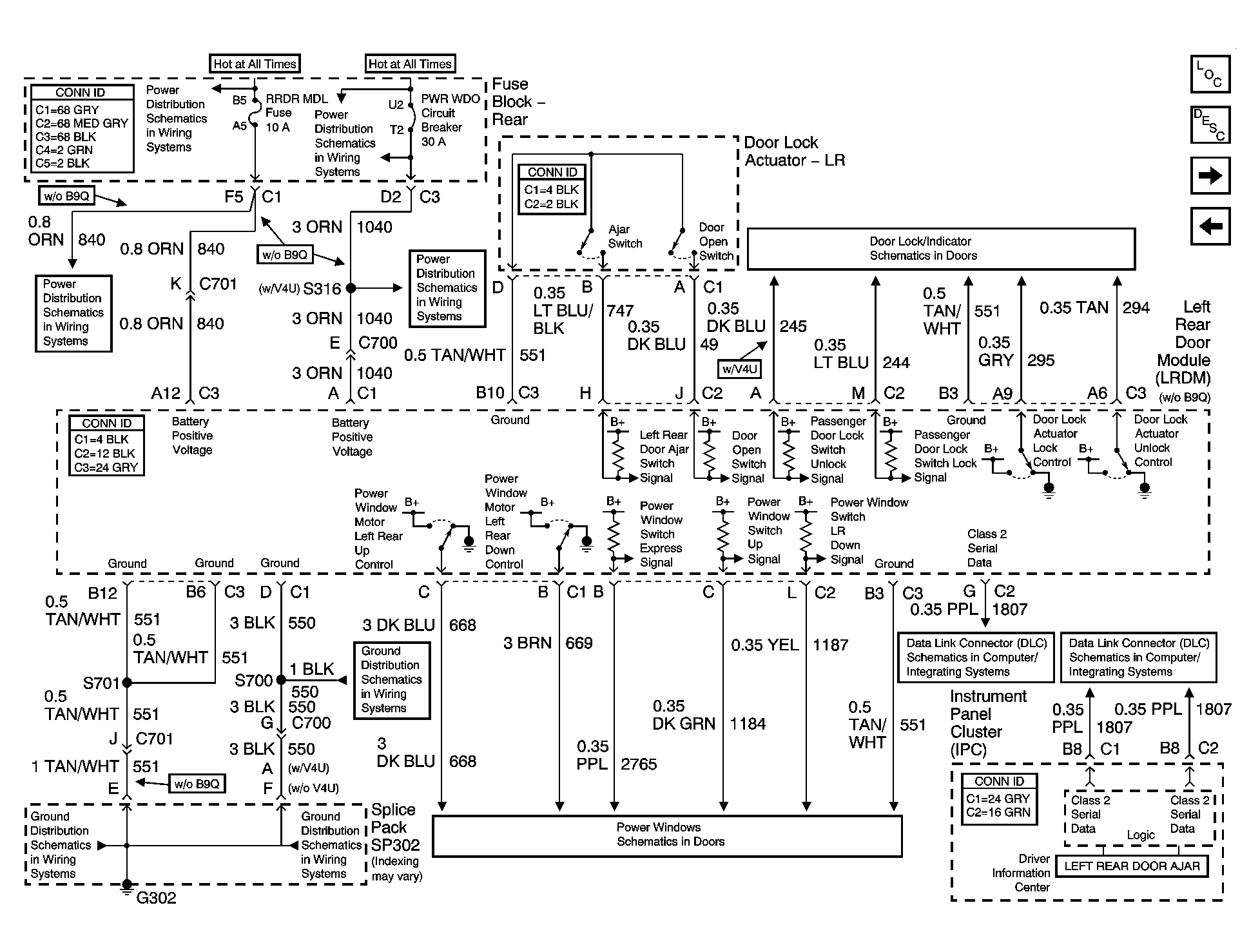

Fig 9: Left Rear Door Module (LRDM) Power, Ground Inputs and Outputs

Courtesy of GENERAL MOTORS CORP.

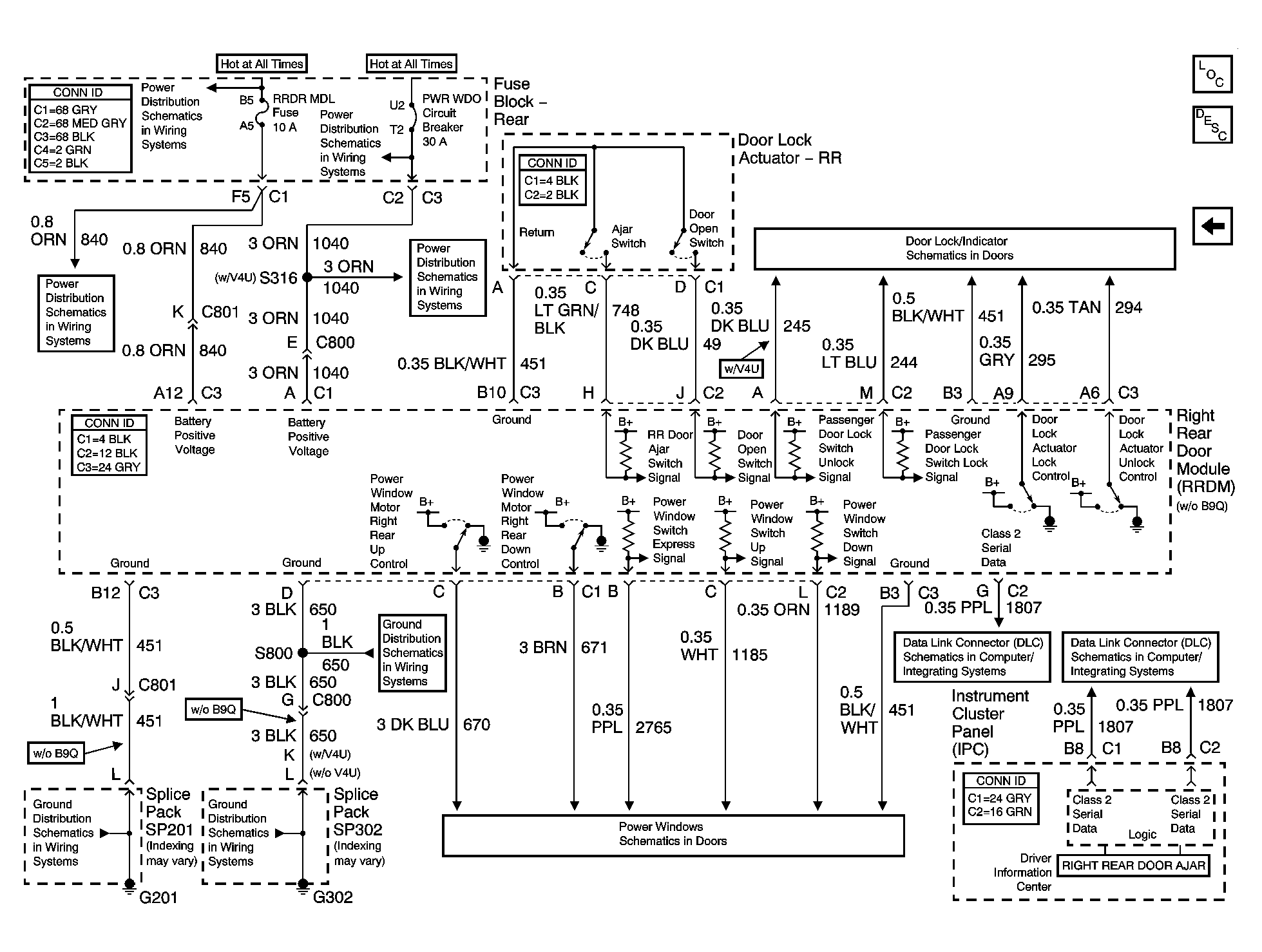

Fig 10: Right Rear Door Module (RRDM) Power, Ground Inputs and Outputs
