ABS Schematics

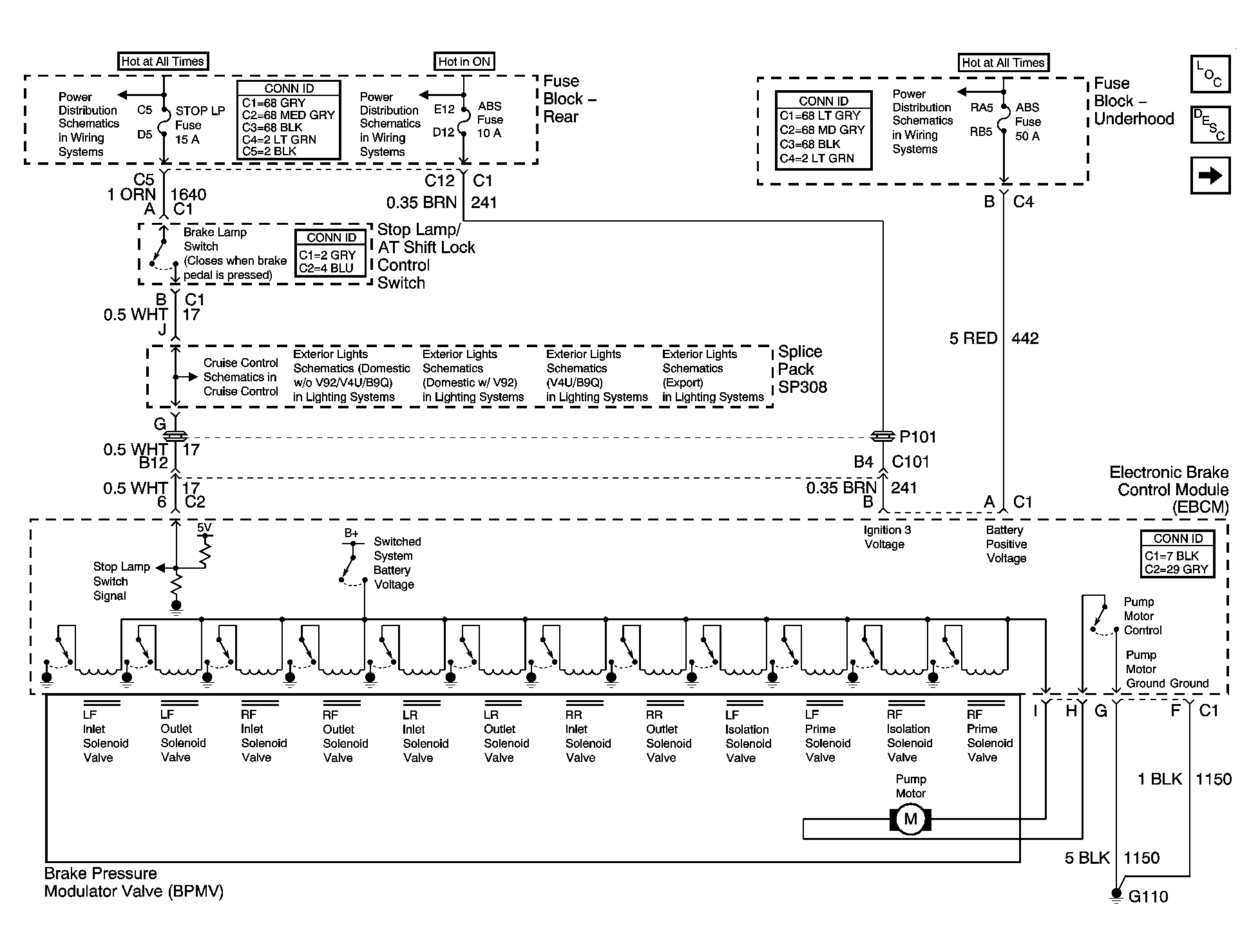

Fig 1: Power, Ground, Stop Lamp Switch, Solenoid Valves & Pump Motor

Courtesy of GENERAL MOTORS CORP.

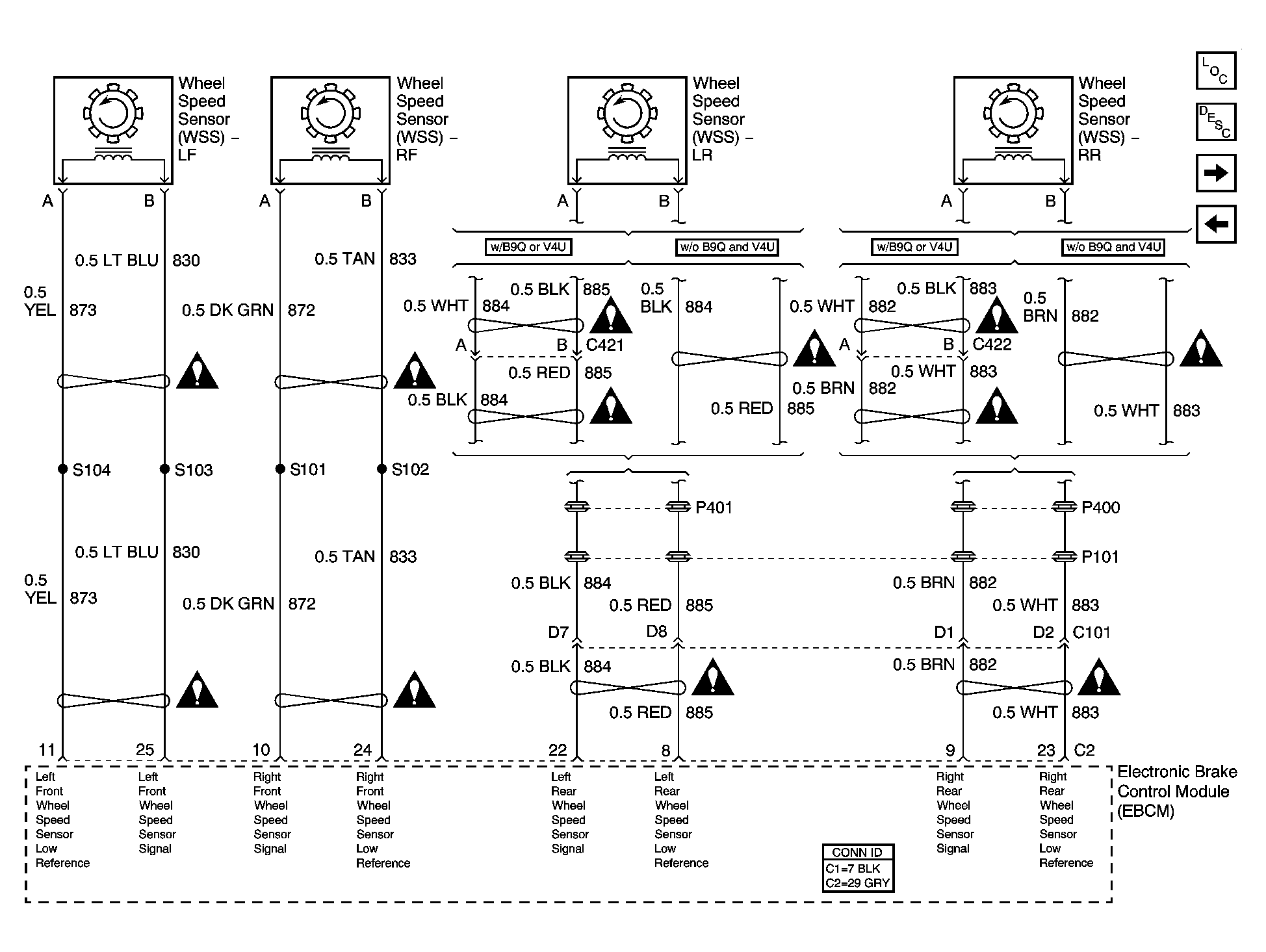

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

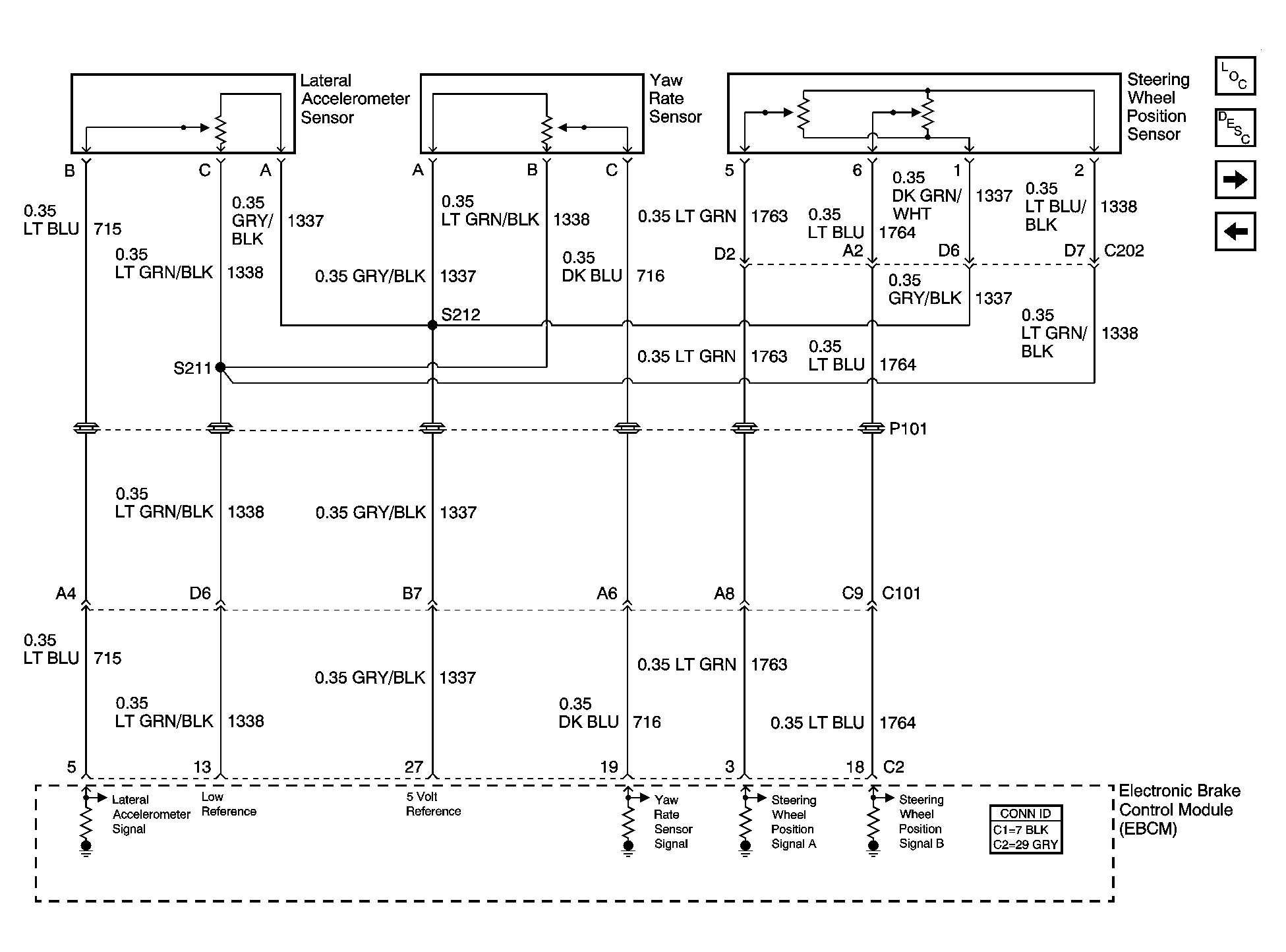

Fig 3: Vehicle Stability Enhancement System (JL4)

Courtesy of GENERAL MOTORS CORP.

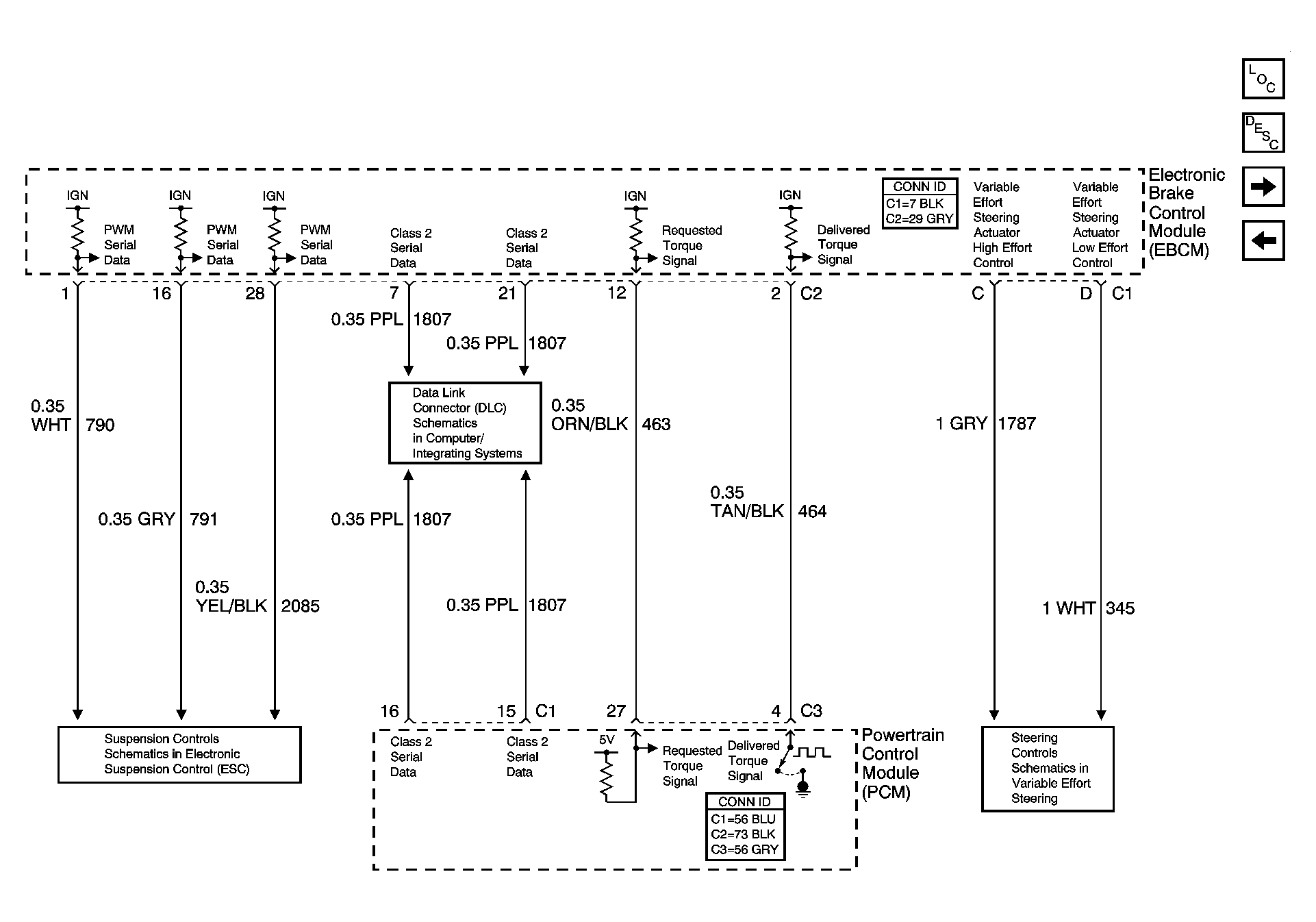

Fig 4: Suspension Inputs, Class 2, Traction Control, Variable Effort Steering

Courtesy of GENERAL MOTORS CORP.

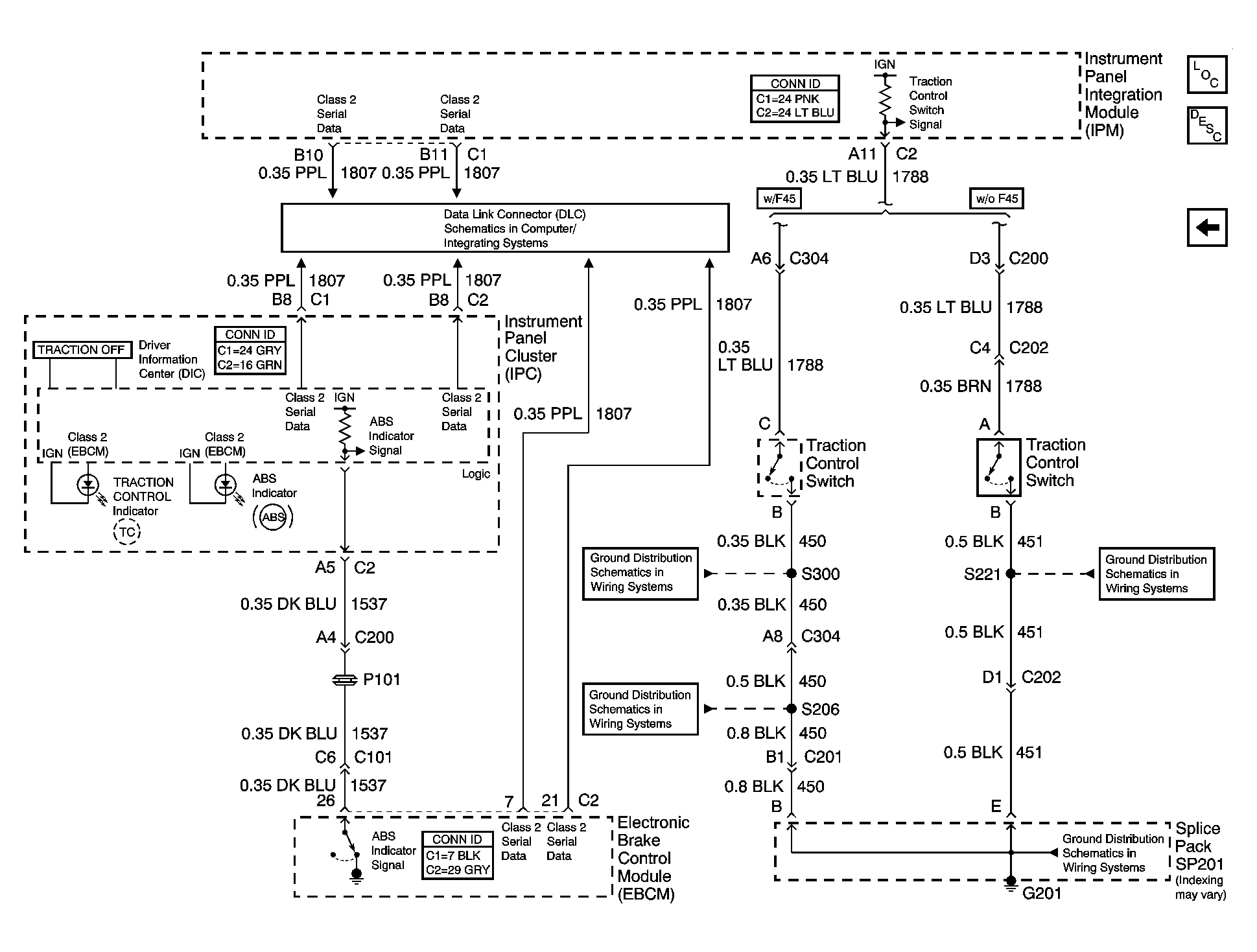

Fig 5: Indicators & Traction Control Switch

Courtesy of GENERAL MOTORS CORP.
