Keyless Entry Schematic

WARNING: This page is about a different car, the 2005 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

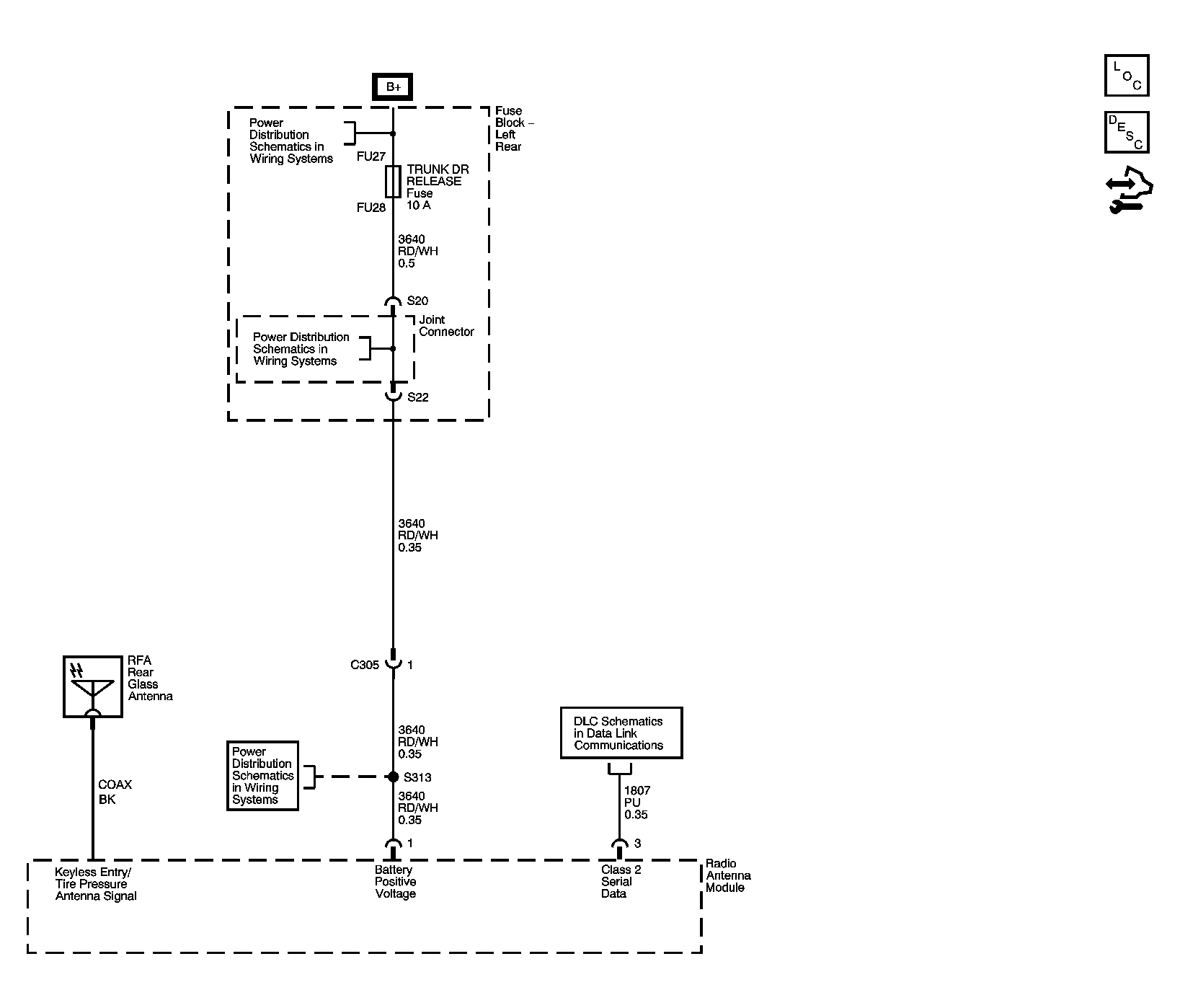

Fig 1: Keyless Entry Schematic
GM1471097Courtesy of GENERAL MOTORS CORP.
