Cruise Control Connector End Views
WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

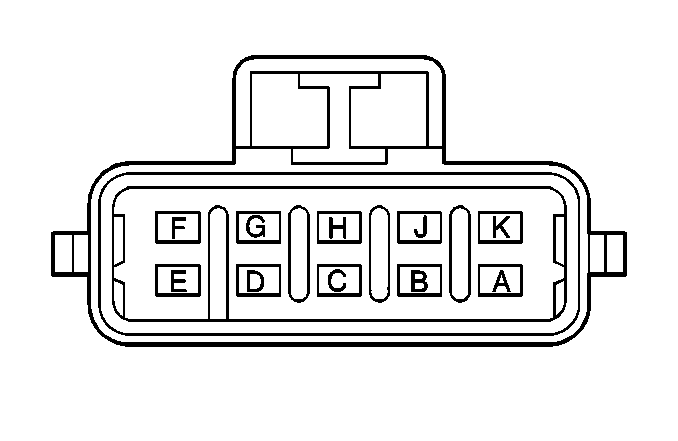

Cruise Control Module (CCM) Component View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GRY | 397 | Cruise Control On Switch Signal |
| B | DK BLU | 84 | Cruise Control Set/Coast Switch Signal |
| C | GRY/BLK | 87 | Cruise Control Resume/Accel Switch Signal |
| D | PPL | 420 | TCC Brake Switch/Cruise Control Release Signal |
| E | BLK | 150 | Ground |
| F | PNK | 639 | Ignition 1 Voltage |
| G | WHT | 17 | Stop Lamp Switch Signal |
| H | DK GRN | 83 | Cruise Control Inhibit Signal |
| J | LT BLU/BLK | 396 | Cruise Control Engaged Signal |
| K | DK GRN/WHT | 817 | Vehicle Speed Signal |
