ABS Schematics

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

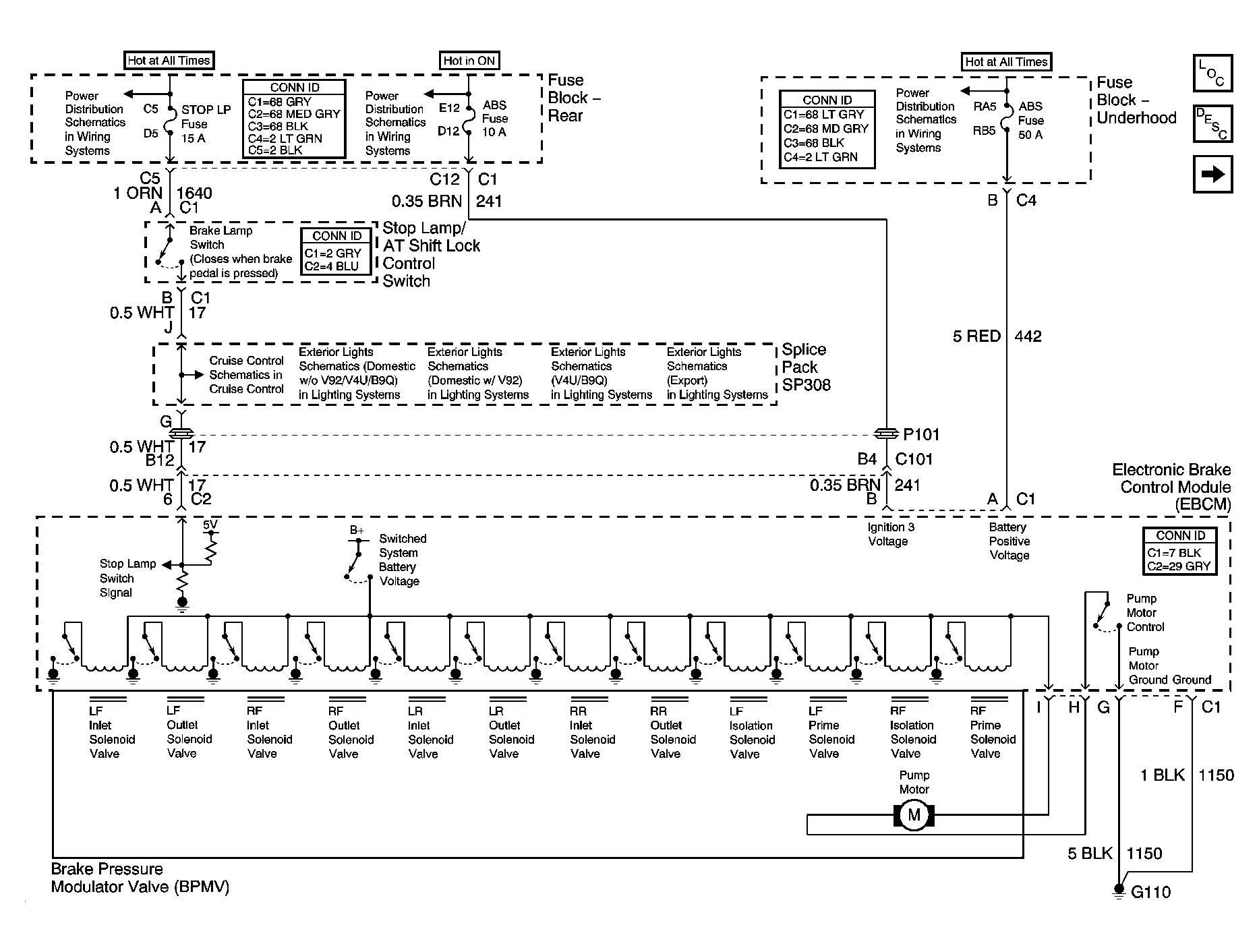

Fig 1: Power, Ground, Stop Lamp Switch, Solenoid Valves and Pump Motor Schematic

Courtesy of GENERAL MOTORS CORP.

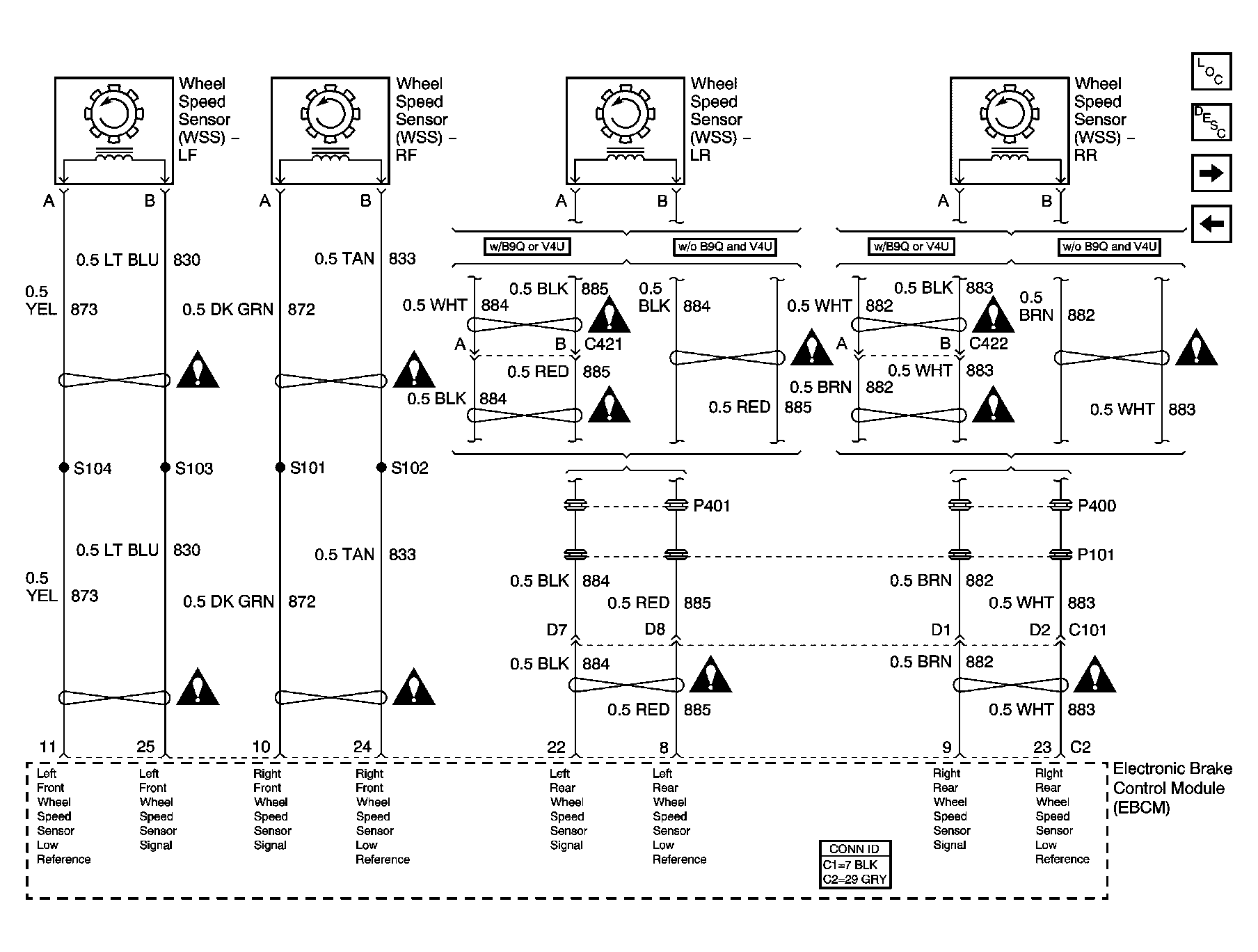

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

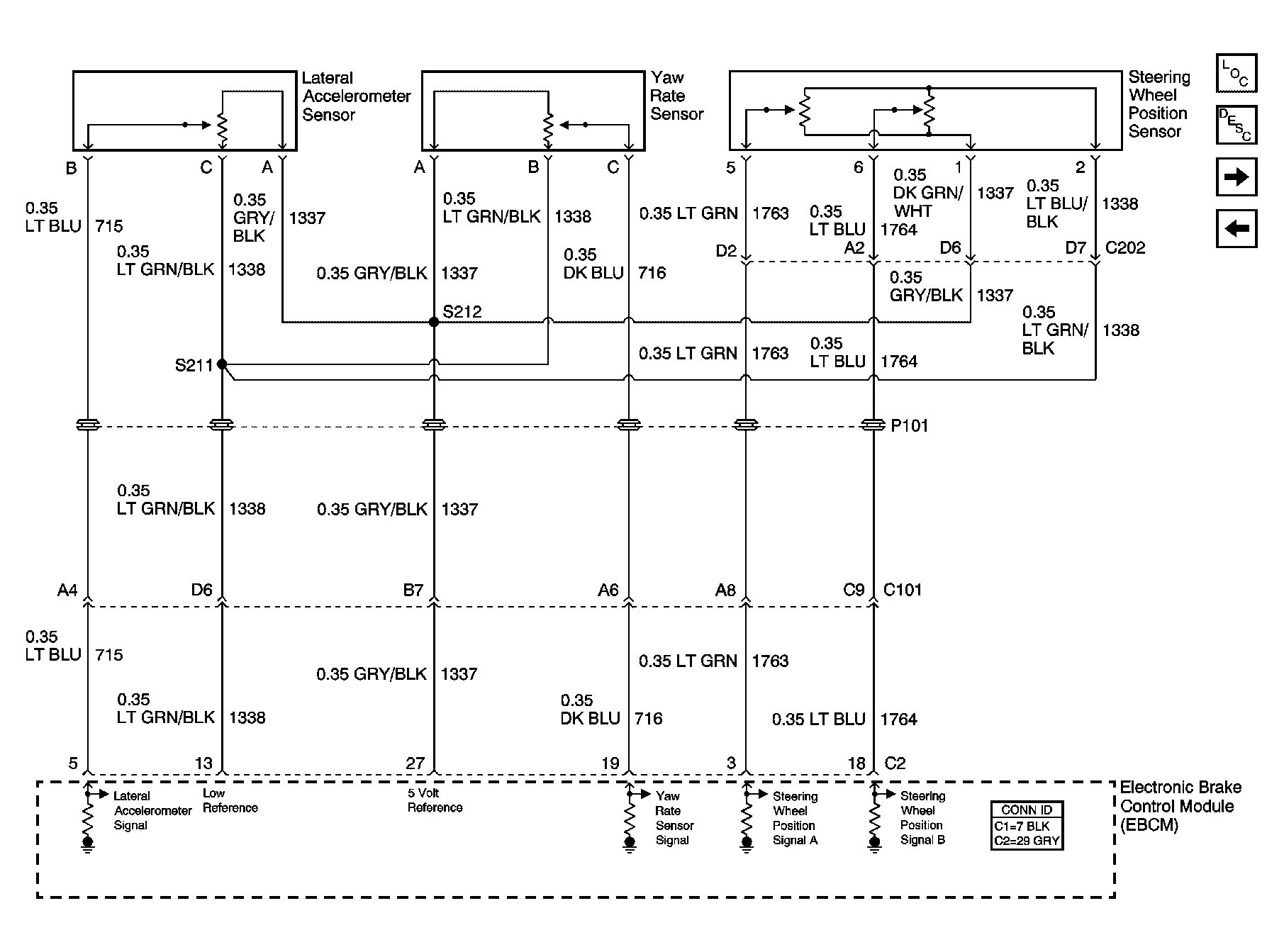

Fig 3: Vehicle Stability Enhancement System Schematic (w/JL4)

Courtesy of GENERAL MOTORS CORP.

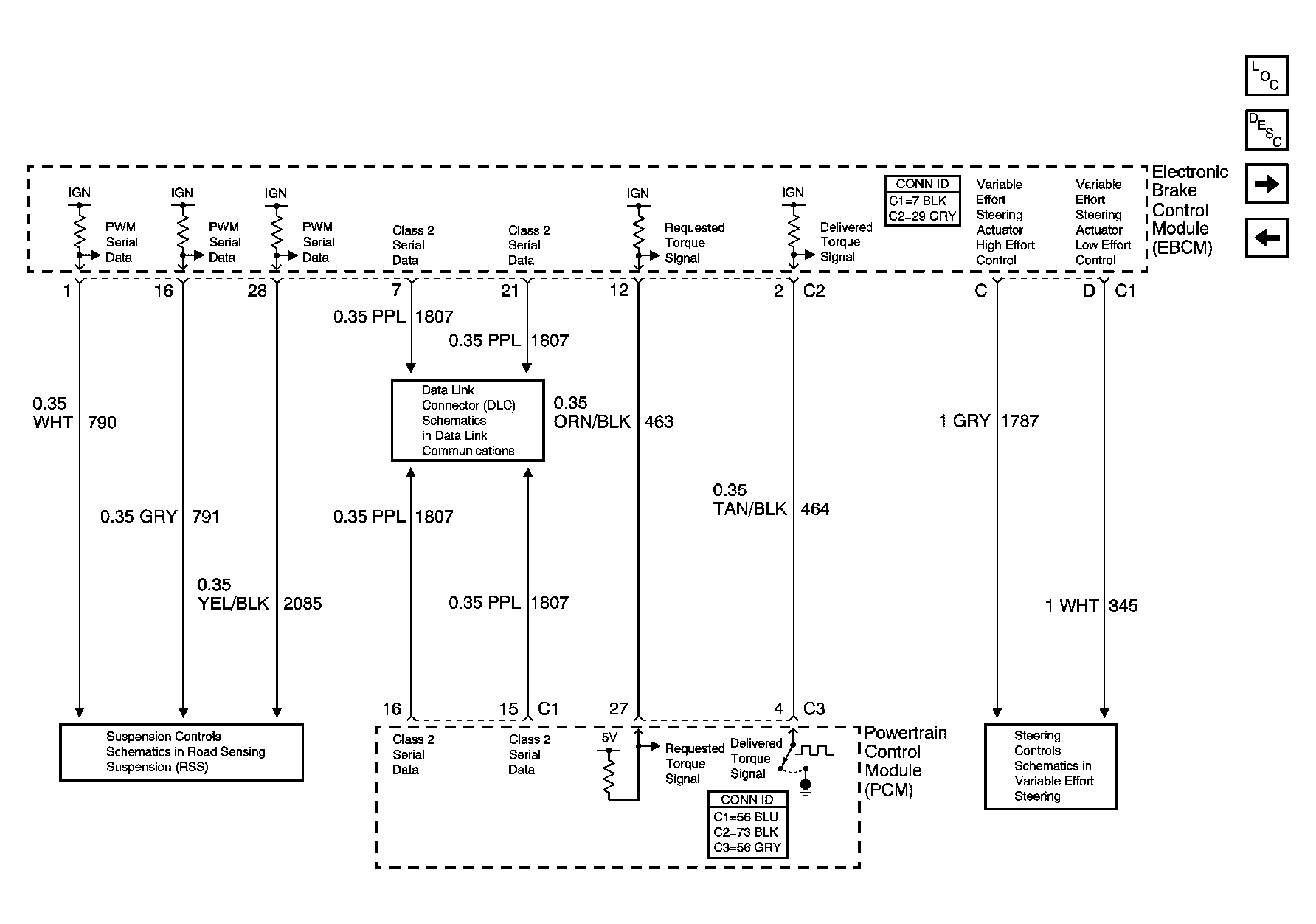

Fig 4: Suspension Inputs, Class 2, Traction Control, Variable Effort Steering Schematic

Courtesy of GENERAL MOTORS CORP.

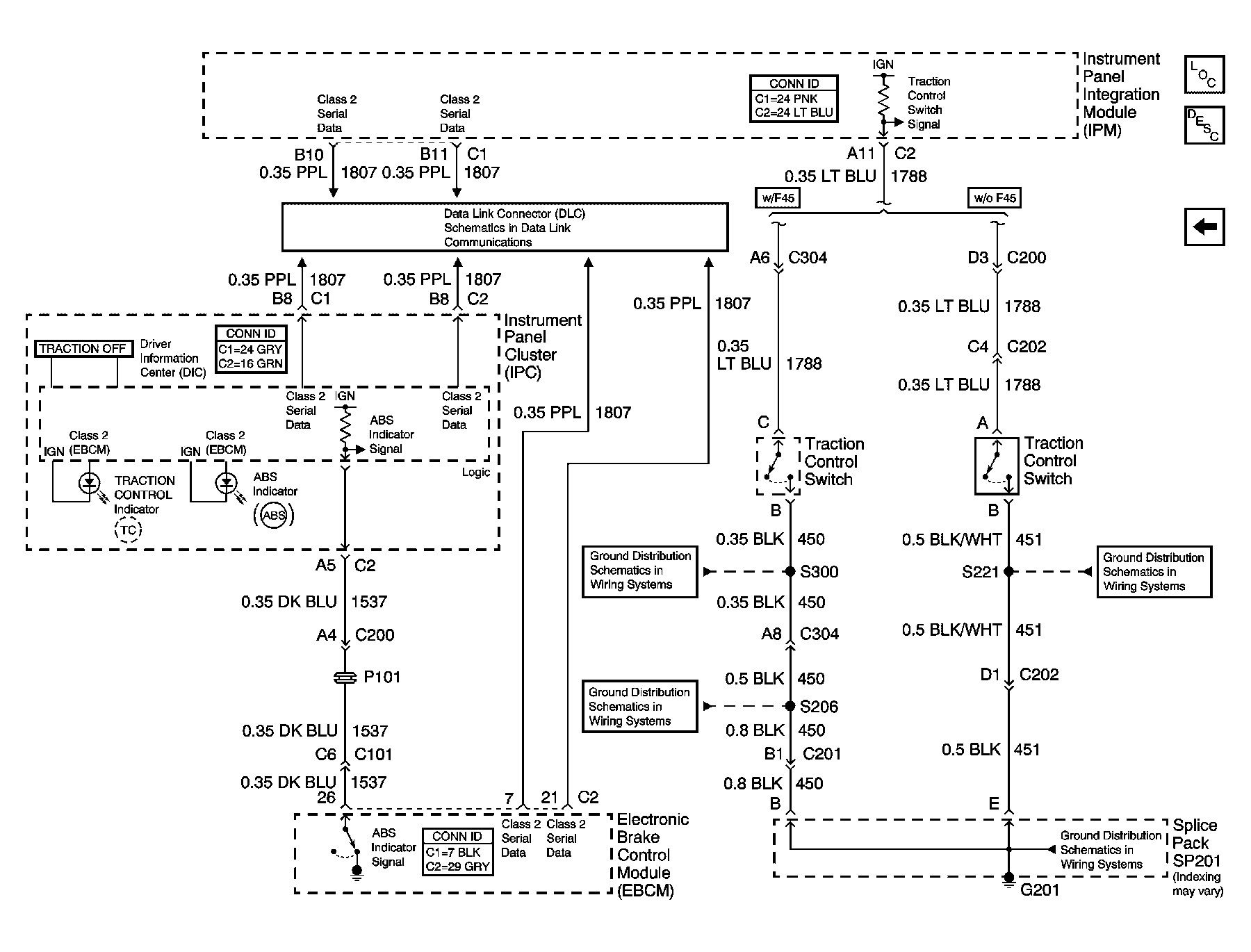

Fig 5: Indicators and Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.
