Automatic Transmission Electronic Component Views

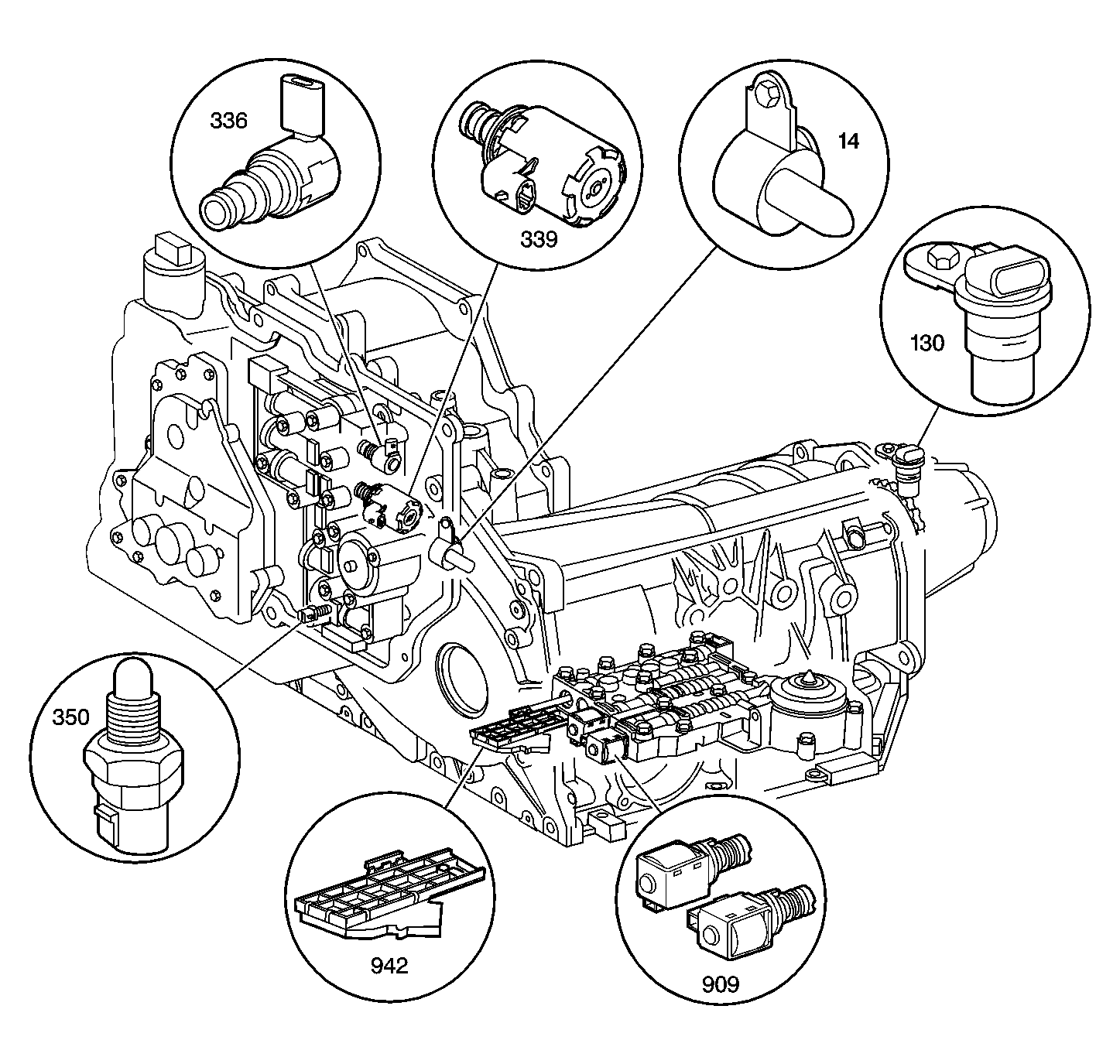

Fig 1: Electronic Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
14	Automatic Transmission Input (Shaft) Speed Sensor (ISS)
130	Vehicle Speed Sensor (VSS)
336	Torque Converter Clutch (TCC) Solenoid Valve
339	Pressure Control Solenoid (PCS) Valve
350	Automatic Transmission Fluid Temperature (TFT) Sensor
909	1-2 and 2-3 Shift Solenoid (1-2 SS) (2-3 SS) Valves
942	Internal Mode Switch (IMS)
