Computer/Integrating Systems Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Fuse Block - I/P |
| 2 |
Instrument Panel |
| 3 |
Body Control Module (BCM) |
| 4 |
Body Harness to Body Control Module (BCM) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Splice Pack SP207 |
| 2 |
Splice Pack SP205 |
| 3 |
Fuse Block - I/P C1 |

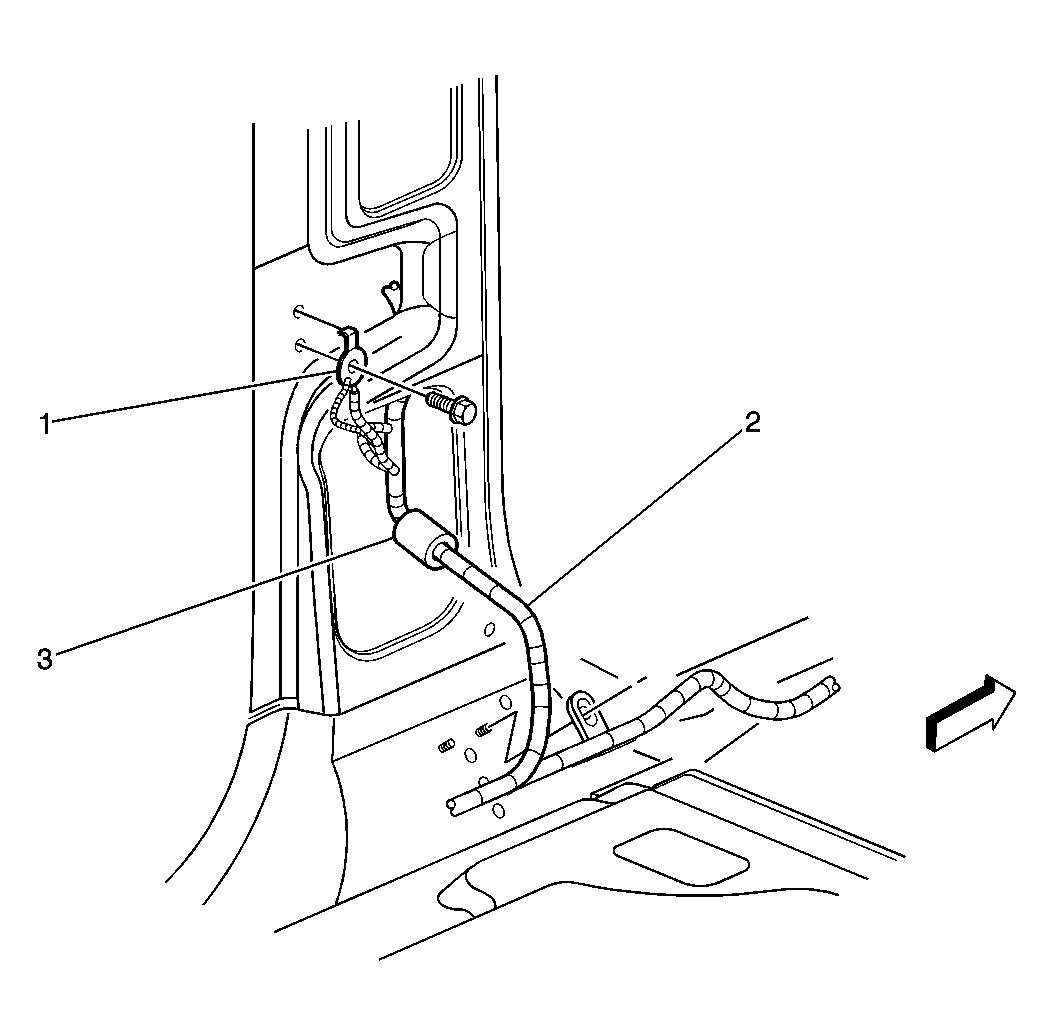

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
G305 |
| 2 |
Body Harness |
| 3 |
Splice Pack - SP206 |

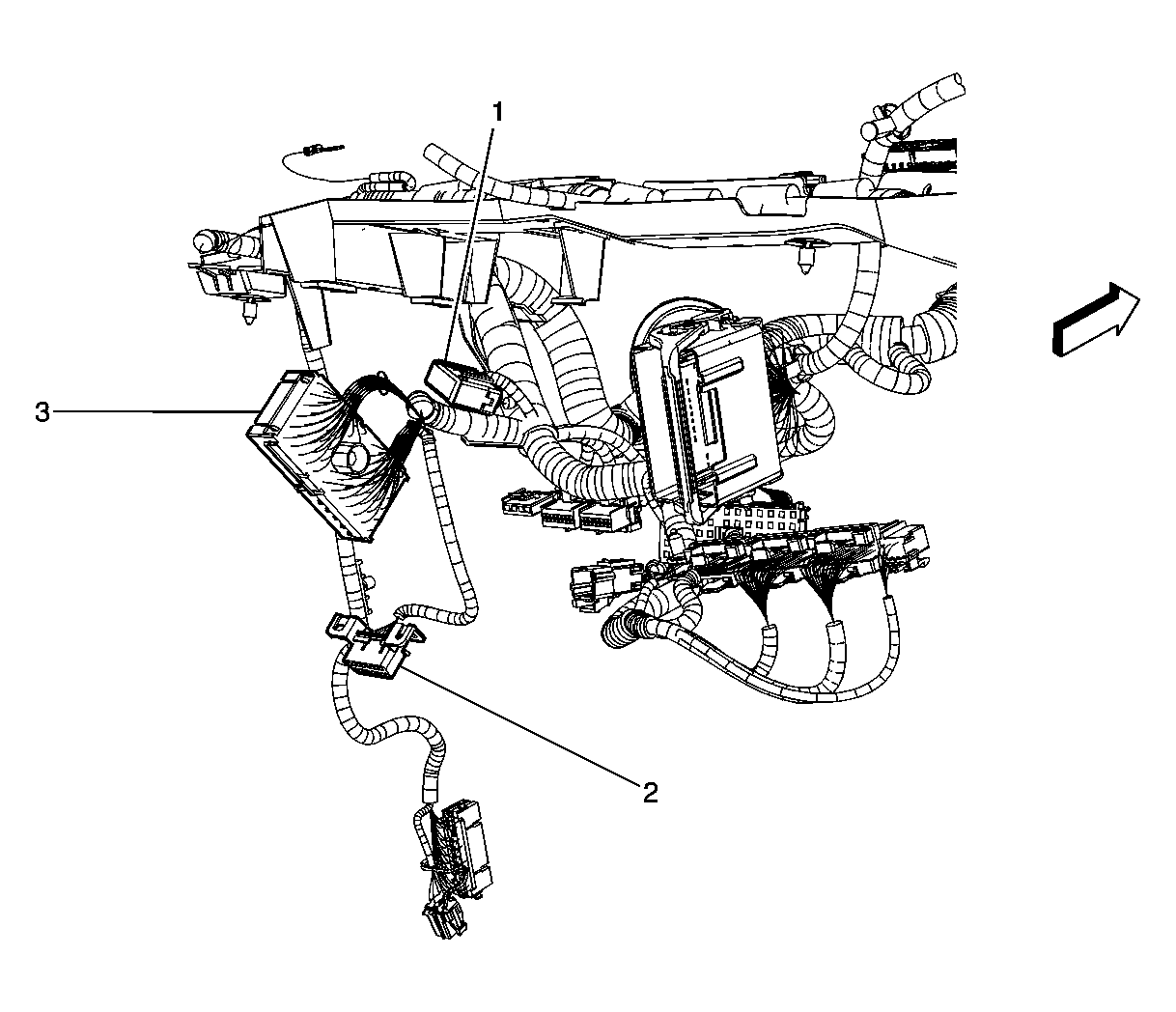

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Splice Pack - SP207 |
| 2 |
Relay Block - I/P |
| 3 |
I/P Extension Harness |
