Installation Procedure

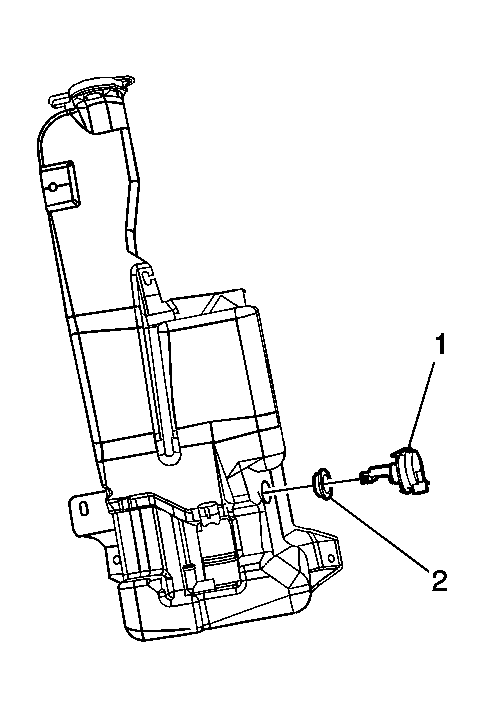

    Fig 1: Washer Solvent Container Level Sensor & Seal
    GM1328316Courtesy of GENERAL MOTORS CORP.
  1. Position the washer solvent container level sensor (1) and the seal (2) to the container by pressing in until fully seated.
  2. Install the washer solvent container. Refer to Washer Pump/Reservoir Replacement .
