Wiper/Washer System Schematics

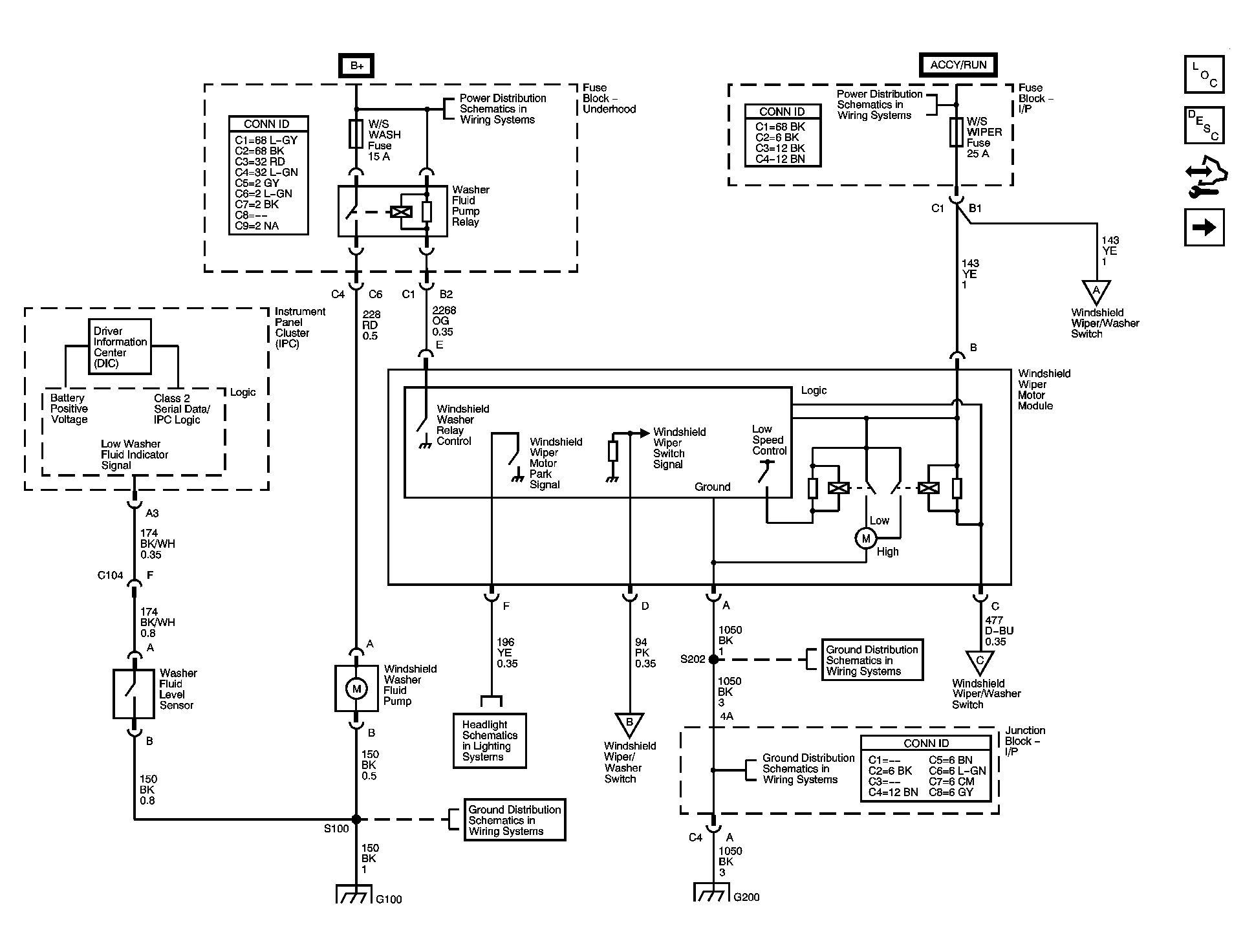

Fig 1: Front Wiper/Washer Control Schematics - 1 of 2
GM1464600Courtesy of GENERAL MOTORS CORP.

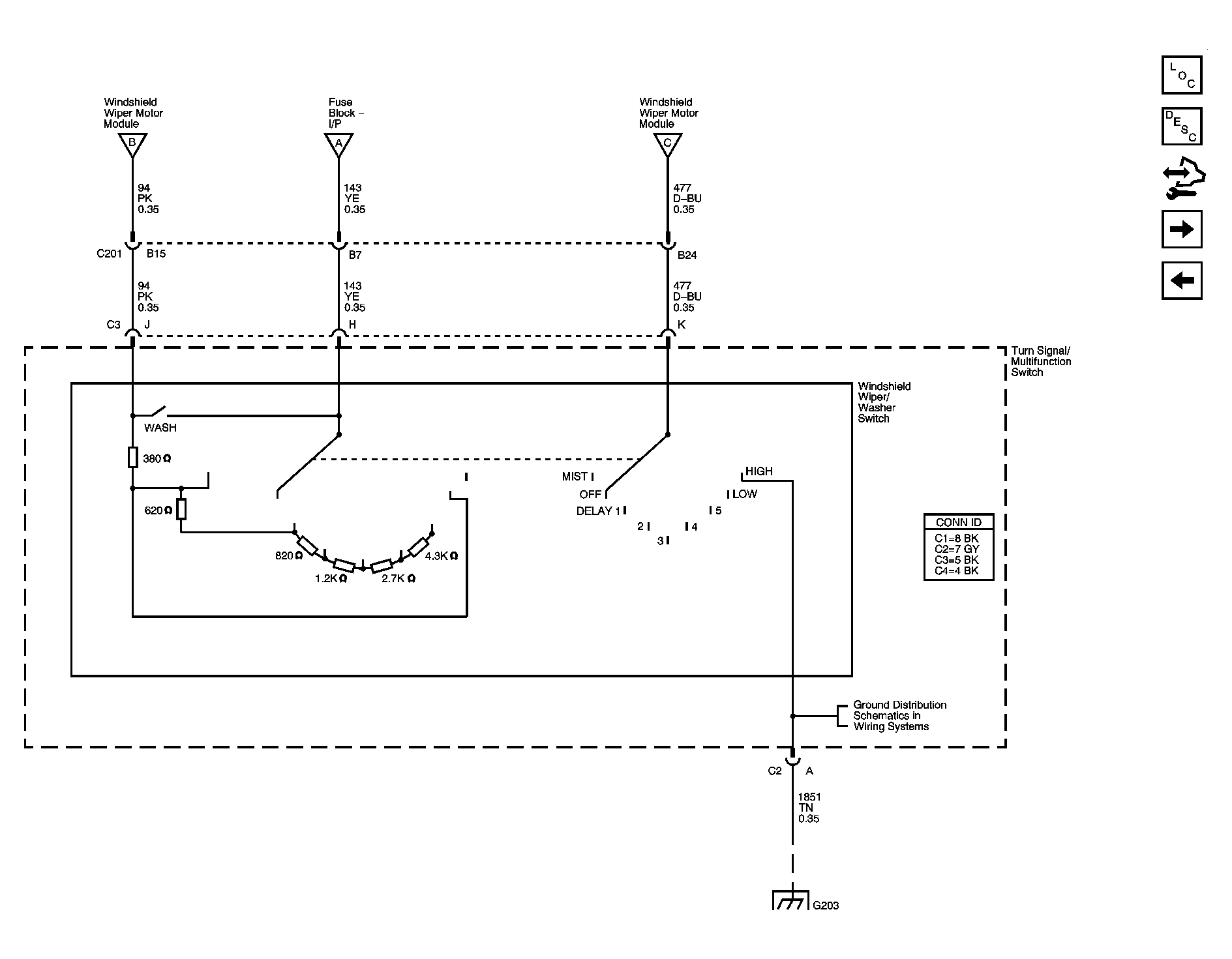

Fig 2: Front Wiper/Washer Control Schematics - 2 of 2
GM1464602Courtesy of GENERAL MOTORS CORP.

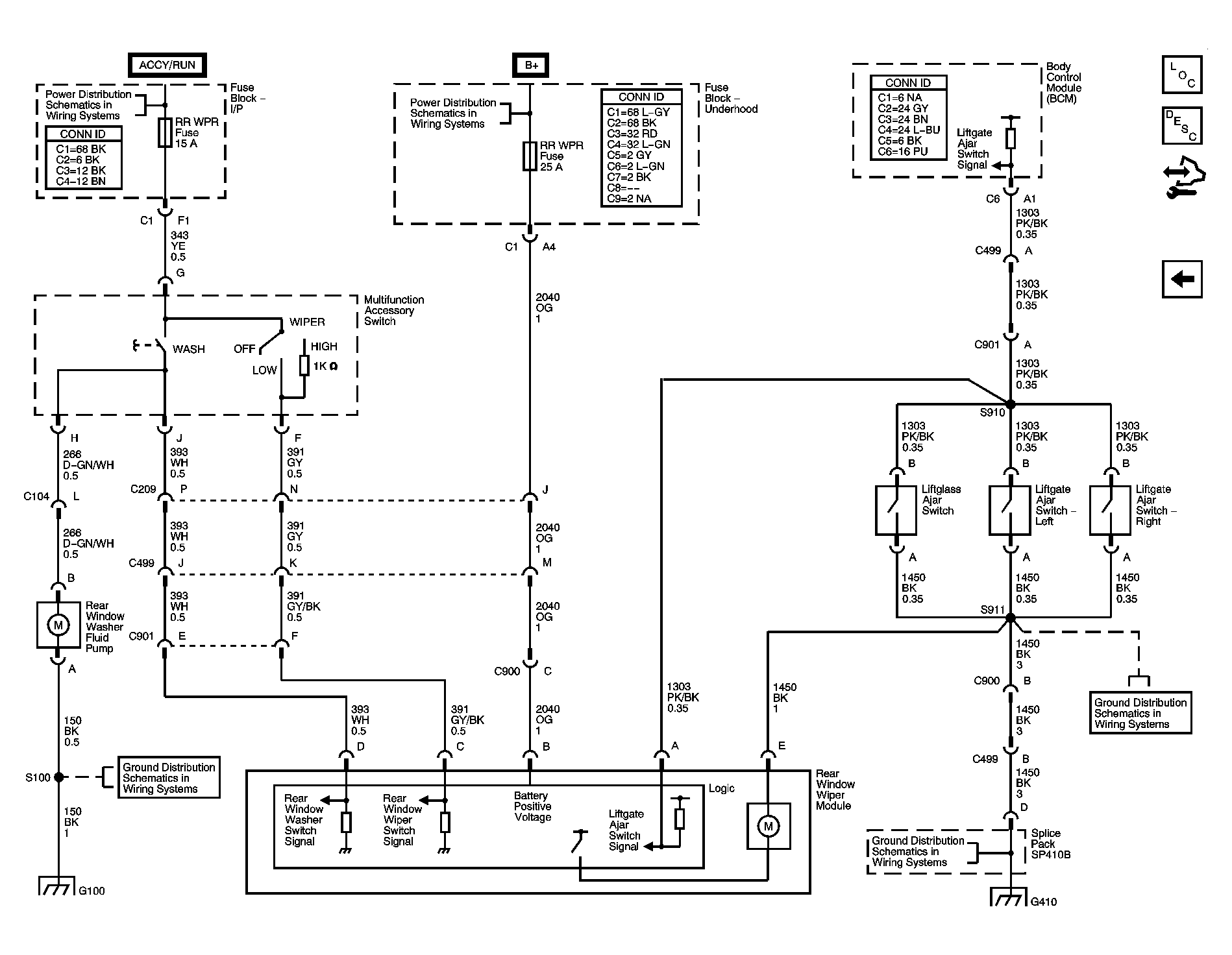

Fig 3: Rear Wiper/Washer Control Schematics
GM1464603Courtesy of GENERAL MOTORS CORP.
