Liftgate Lock Relay Connector End View

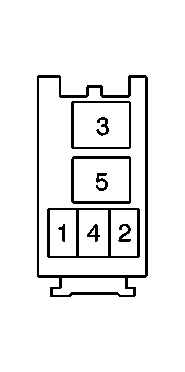

Liftgate Lock Relay
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
12065978
5-Way F Metri-Pack 480/630 Series (GY)
Pin
Wire Color
Circuit No.
Function
1
WH
1304
Liftgate Lock Relay Control
2
OG
3140
Battery Positive Voltage
3
GY
295
Door Lock Actuator Lock Control
4
BK
1450
Ground
5
OG
3140
Battery Positive Voltage
