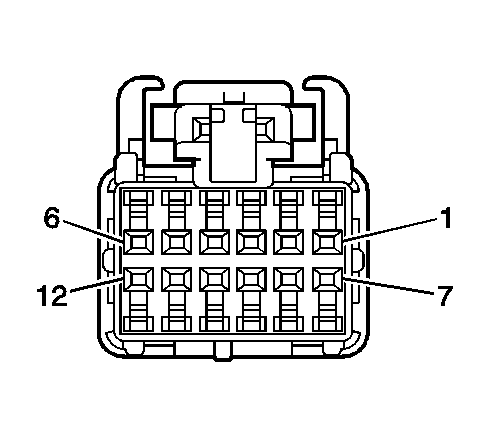

Front Passenger Door Module (FPDM) Connector End View - C5 (Heated Seat Switch - Front Passenger)

Front Passenger Door Module (FPDM) - C5 (Heated Seat Switch - Front Passenger)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		6383393-4 12-Way F Amp 0.64 mm Unsealed (GN)
Pin	Wire Color	Circuit No.	Function
1	YE	-	Low Heat Indicator Control
2	GN	-	High Heat Indicator Control
3	D BU	-	Back and Cushion Select
4	GY	-	Back Only Select
5	-	-	Not Used
6	BN	-	Memory/Heated Seat Switch Supply Voltage
7	BK	-	Back Only Indicator Control
8	WH/BK	-	Medium Heat Indicator Control
9-11	-	-	Not Used
12	L BU	-	Heated Seat Switch Backlight
