Heated Seat Control Module Connector End Views

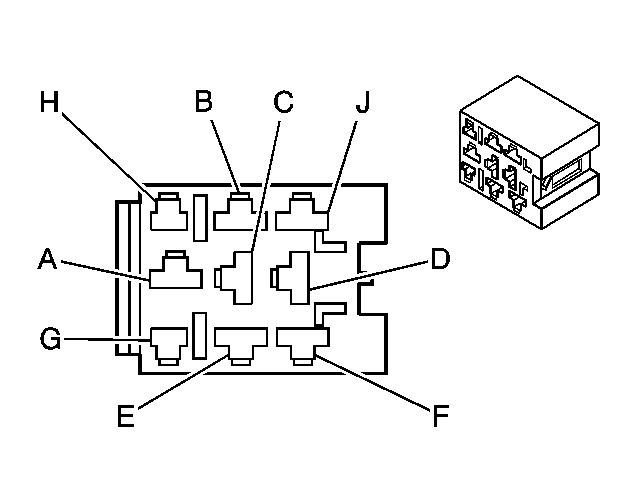

Heated Seat Control Module - LR

GM887125Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15339007
  • 9-Way F Metri-Pack 280 630 Series (BN)
Pin Wire Color Circuit No. Function
A RD/WH 2075 Heated Seat Cushion Element Control
B BN/WH 1637 Left Rear Heated Seat Switch Signal
C BN 541 Ignition 3 Voltage
D OG 4540 Battery Positive Voltage
E YE 2079 Heated Seat Cushion Temperature Sensor Signal
F BK 1150 Ground
G BK/WH 1638 Left Rear Heated Seat High Temperature Indicator Control
H PK 1631 Left Rear Heated Seat Low Temperature Indicator Control
J BK 2080 Low Reference
Heated Seat Control Module - RR

GM887125Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15339007
  • 9-Way F Metri-Pack 280 630 Series (BN)
Pin Wire Color Circuit No. Function
A RD/WH 2075 Heated Seat Cushion Element Control
B BN/WH 1634 Right Rear Heated Seat Switch Signal
C BN 541 Ignition 3 Voltage
D OG 4540 Battery Positive Voltage
E YE 2079 Heated Seat Cushion Temperature Sensor Signal
F BK 1250 Ground
G BK/WH 1635 Right Rear Heated Seat High Temperature Indicator Control
H PK 1636 Right Rear Heated Seat Low Temperature Indicator Control
J BK 2080 Low Reference
