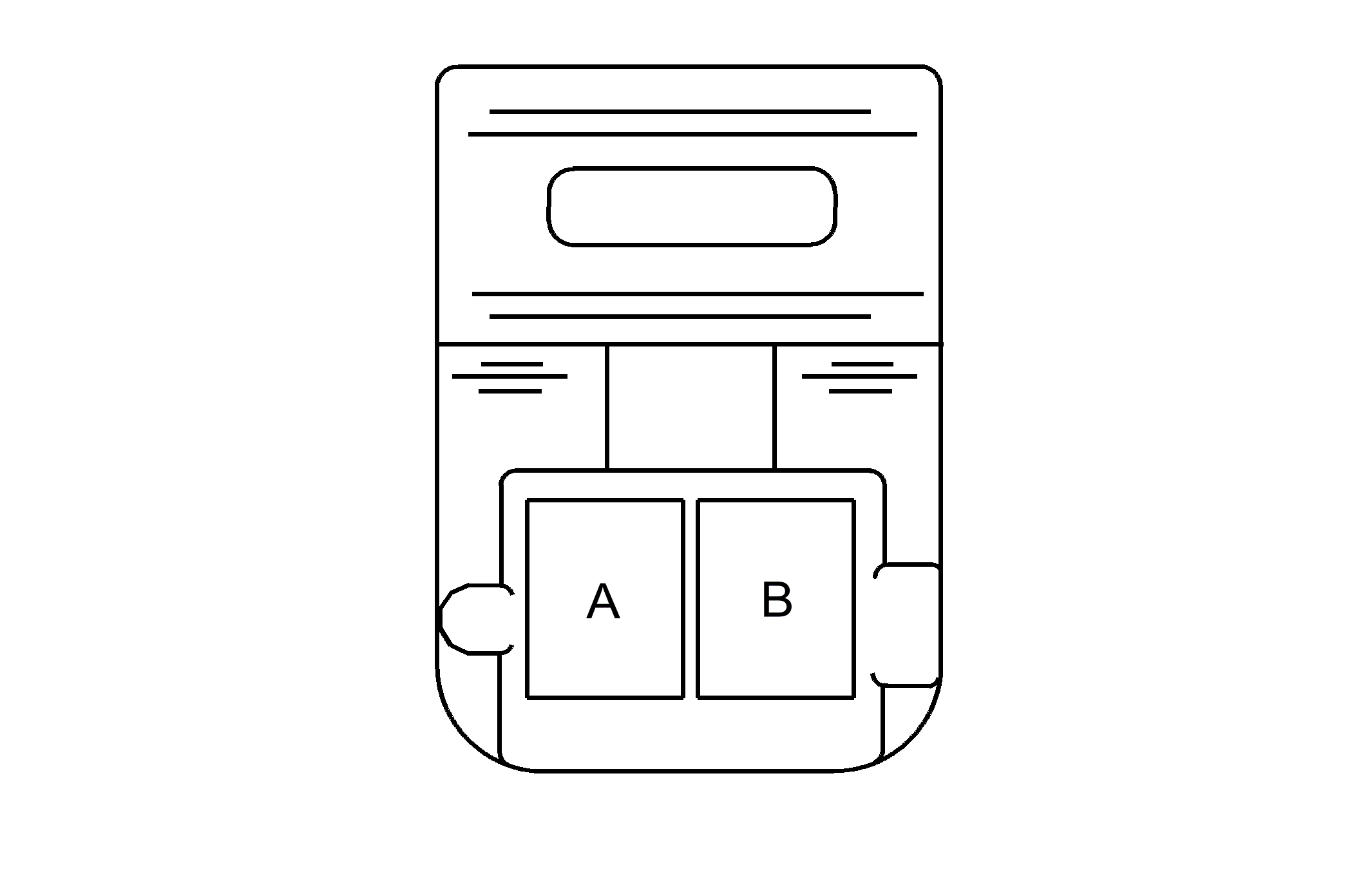

3-2 Shift Solenoid (SS) Valve Assembly Connector End View, Wiring Harness Side
3-2 Shift Solenoid (SS) Valve Assembly Connector End View, Wiring Harness Side
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12146094
- 2-Way F Metri-Pack 150.2 P2 Series (GY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
WH |
687 |
3-2 Shift Solenoid Valve Control |
| B |
RD |
839 |
Ignition 1 Voltage |
