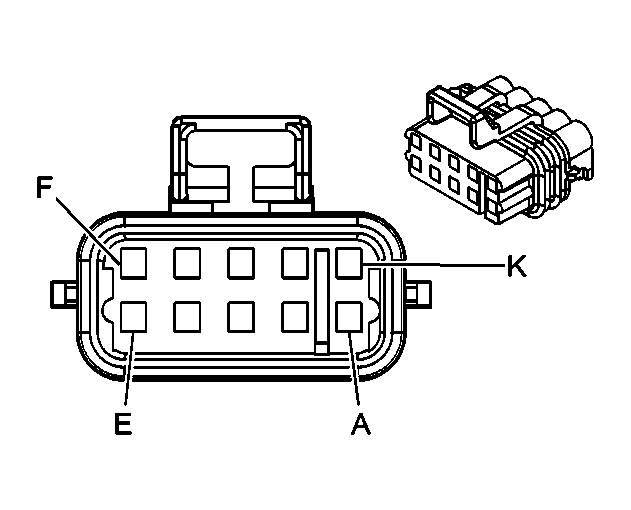

Accelerator Pedal Position (APP) Sensor Connector End View

Accelerator Pedal Position (APP) Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15318071 10-Way F Metri-Pack 150 Series (GY)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	PU	1272	5-Volt Reference
C	L-BU	1162	APP Sensor 2 Signal
D	TN	1274	Low Reference
E	BN	1271	Low Reference
F	D-BU	1161	APP Sensor 1 Signal
G	WH/BK	1164	5-Volt Reference
H-K	-	-	Not Used
