Coolant Level Switch Connector End Views

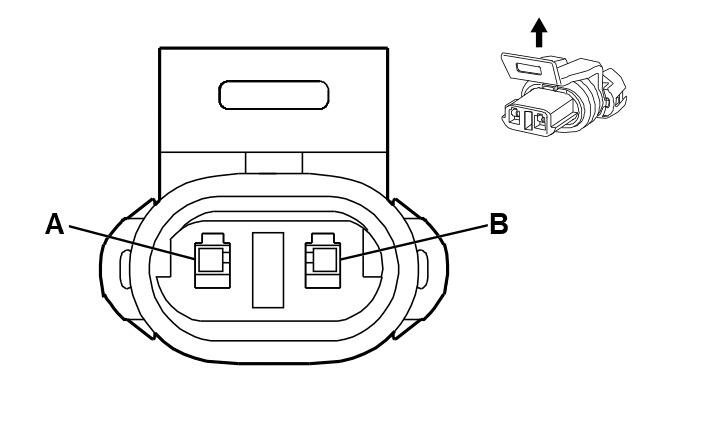

Coolant Level Switch - 8.1L

GM655783Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324243
  • 2-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A L GN 1478 Coolant Level Switch Signal
B BK 550 Ground
Coolant Level Switch - Except 8.1L

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A L GN 1478 Coolant Level Switch Signal
B BK 550 Ground
