Headlamp Leveling Actuator Connector End Views

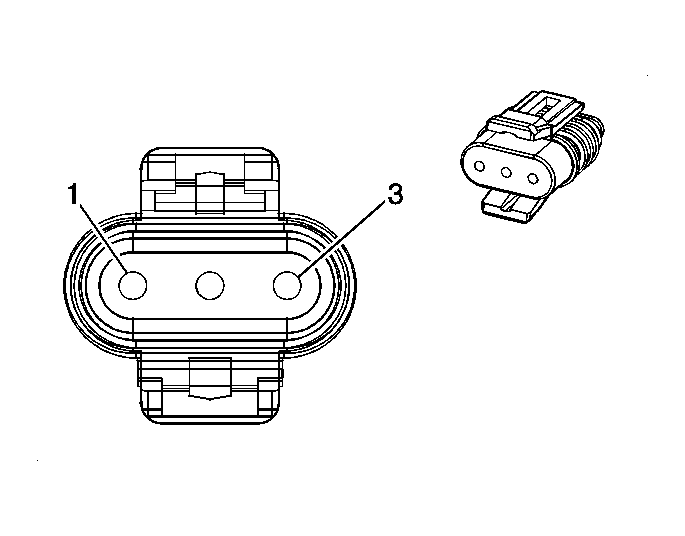

Headlamp Leveling Actuator - Left (Export)

GM655688Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124971
  • 3-Way F Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 150 Ground
2 D GN 189 Headlamp Leveling Motor Supply Voltage
3 PK 639 Ignition 1 Voltage
Headlamp Leveling Actuator - Right (Export)

GM655688Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124971
  • 3-Way F Sealed (BK)
Pin Wire Color Circuit No. Function
1 BK 150 Ground
2 D GN 189 Headlamp Leveling Motor Supply Voltage
3 PK 639 Ignition 1 Voltage
