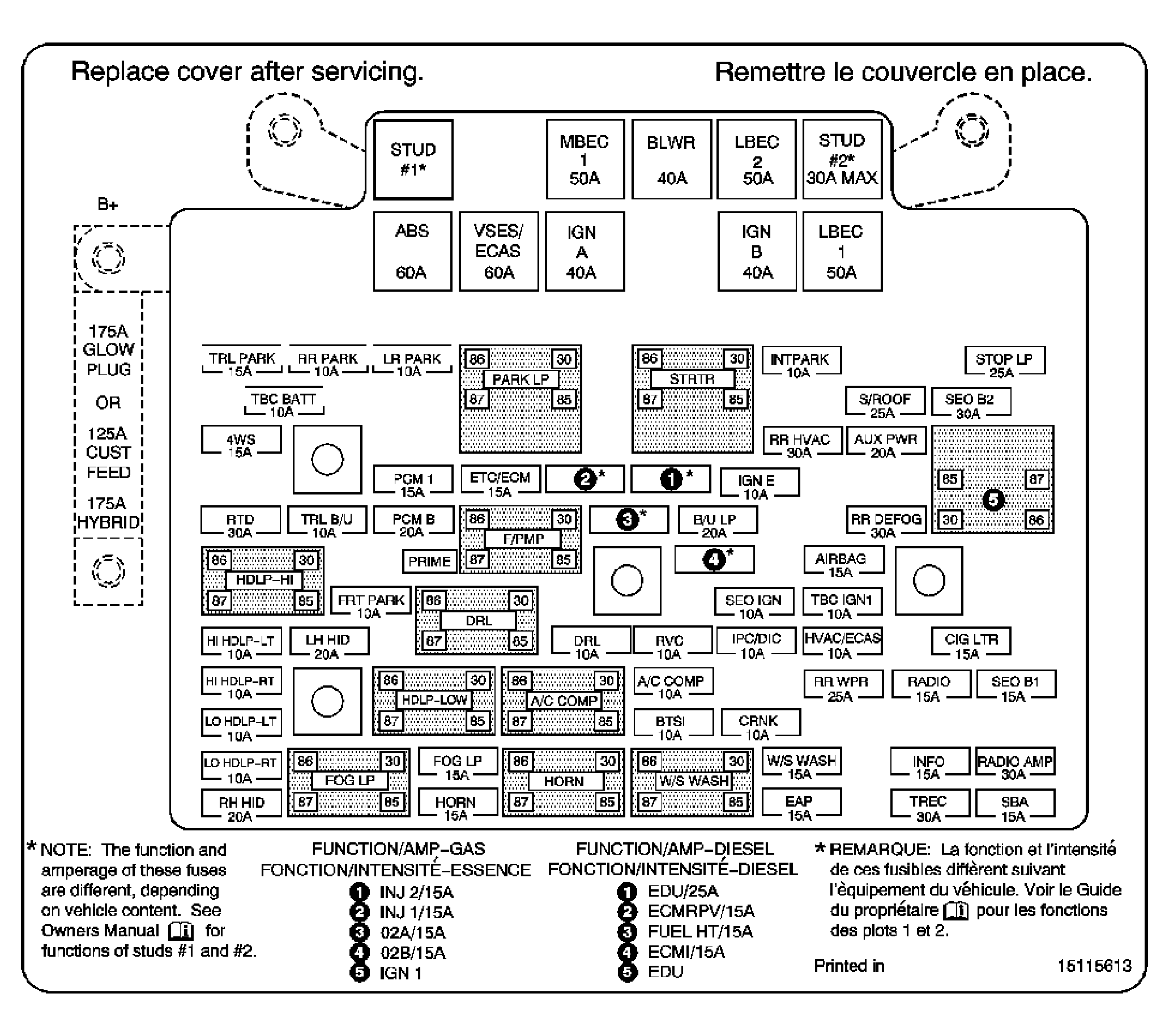

Fuse Block - Underhood Label
Fuse Block - Underhood Label Usage
| Device | Rating | Description |
|---|---|---|
| STUD # 1 Fuse | 40A | Trailer Wiring, Automatic Level Control (ALC) Compressor Relay |
| MBEC 1 Fuse | 50A | SEAT CB, RT DOOR CB |
| BLWR Fuse | 40A | Blower Motor |
| LBEC 2 Fuse | 50A | LOCKS Fuse, DDM Fuse, PDM Fuse, ECC Fuse, AUX PWR 2 Fuse |
| STUD # 2 Fuse | 30A | Trailer Wiring |
| ABS Fuse | 60A | Electronic Brake Control Module (EBCM) |
| VSES/ECAS Fuse | 60A | Electronic Brake Control Module (EBCM) |
| IGN A Fuse | 40A | Ignition Switch RUN, START, RUN/START/ACCY |
| IGN B Fuse | 40A | Ignition Switch RUN/ACC, RUN/START |
| LBEC 1 Fuse | 50A | FLASH Fuse, TBC 2A Fuse, TBC 2B Fuse, TBC 2C Fuse, LT DOORS Fuse |
| TRL PARK Fuse | 15A | Trailer Wiring |
| RR PARK Fuse | 10A | Exterior Lamps - Right Rear, Clearance Lamps - Right |
| LR PARK Fuse | 10A | Exterior Lamps - Left Rear, Clearance Lamps - Left |
| PARK LP Relay | - | TRLR PARK Fuse, LR PARK Fuse, RR PARK Fuse, FRT PARK, INT PARK Fuse, DRL Relay (Export) |
| STARTER Relay | - | Starter |
| INTPARK Fuse | 10A | ID Lamp |
| STOP LP Fuse | 25A | Stop Lamp Switch |
| TBC BATT Fuse | 10A | Body Control Module (BCM), PASS-Key Module |
| S/ROOF Fuse | 25A | Sunroof Relay |
| SEO B2 Fuse | 30A | Roof Beacon Relay |
| 4WS Fuse | 15A | Rear Wheel Steering Control Module, Evaporative Emission (EVAP) Canister Vent Solenoid |
| RR HVAC Fuse | 30A | HVAC Control Assembly - Rear Auxiliary |
| AUX PWR Fuse | 20A | Accessory Power Outlets, Auxiliary Power Outlets |
| IGN 1 Relay | - | SBA Fuse, ETC/ECM Fuse, PCM 1 Fuse, INJ 1 Fuse, INJ 2 Fuse |
| PCM 1 Fuse | 15A | Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid, Fuel Composition Sensor, Secondary Fuel Pump Relay |
| ETC/ECM Fuse | 15A | Throttle Actuator Control (TAC) |
| INJ 1 Fuse | 15A | Fuel Injectors - Odd-Numbered, Ignition Coils - Odd-Numbered |
| INJ 2 Fuse | 15A | Fuel Injectors - Even-Numbered, Ignition Coils - Even-Numbered |
| IGN E Fuse | 10A | A/C COMP Relay, Park/Neutral Position (PNP) Switch, Turn Signal/Multifunction Switch, Headlamp Leveling Components |
| RTD Fuse | 30A | Automatic Level Control (ALC) Compressor, Electronic Suspension Control (ESC) Module |
| TRL B/U Fuse | 10A | Body Control Module (BCM), Trailer Wiring, Back-up Alarm |
| PCM B Fuse | 20A | Powertrain Control Module (PCM) |
| PRIME F/PMP Relay | - | Fuel Pump |
| O2A Fuse | 15A | Heated Oxygen Sensors - Before the Catalytic Converter |
| B/U LP Fuse | 20A | Park/Neutral Position (PNP) Switch |
| RR DEFOG Fuse | 30A | DEFOG Relay |
| HDLP - HI Relay | - | HI HDLP - LT Fuse, HI HDLP - RT Fuse |
| O2B Fuse | 15A | Heated Oxygen Sensors - After the Catalytic Converter |
| AIRBAG Fuse | 15A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Memory Seat Module - Passenger, Inside Rearview Mirror |
| FRT PARK Fuse | 10A | Park/Turn Signal Lamps - Front, Marker Lamps - Front |
| DRL Relay | - | DRL Fuse |
| SEO IGN Fuse | 10A | DEFOG Relay, Instrument Panel Cluster (IPC), Rear Object Sensor Control Module |
| TBC IGN 1 Fuse | 10A | Body Control Module (BCM) |
| HI HDLP - LT Fuse | 10A | Headlamp - High Beam - Left |
| LH HID Fuse | 20A | Headlamp Ballast - Left |
| DRL Fuse | 10A | DRL Relay (Domestic), Daytime Running Lamps (Export) |
| RVC Fuse | 10A | Generator Battery Control Module |
| IPC/DIC Fuse | 10A | Instrument Panel Cluster (IPC) |
| HVAC/ECAS Fuse | 10A | HVAC Control Module |
| CIG LTR Fuse | 15A | Cigar Lighter, Data Link Connector (DLC) |
| HI HDLP - RT Fuse | 10A | Headlamp - High Beam - Right |
| HDLP - LOW Relay | - | LO HDLP - LT Fuse |
| A/C COMP Relay | - | A/C Compressor Clutch Assembly |
| A/C COMP Fuse | 10A | A/C COMP Relay |
| RR WPR Fuse | 25A | Window Wiper Module - Rear |
| RADIO Fuse | 15A | Entertainment System Components |
| SEO B1 Fuse | 15A | Instrument Panel Cluster (IPC), Rear Fog Lamp Relay, Overhead Console, Roof Beacon Switch |
| LO HDLP - LT Fuse | 10A | Headlamp - Low Beam - Left, Headlamp Ballast - Left |
| BTSI Fuse | 10A | Stop Lamp Switch |
| CRNK Fuse | 10A | Powertrain Control Module (PCM) |
| LO HDLP - RT Fuse | 10A | Headlamp - Low Beam - Right, Headlamp Ballast - Right |
| FOG LP Relay | - | FOG LP Fuse |
| FOG LP Fuse | 15A | FOG LP Relay |
| HORN Relay | - | HORN Fuse |
| W/S WASH Relay | - | W/S WASH Fuse |
| W/S WASH Fuse | 15A | W/S WASH Relay |
| INFO Fuse | 15A | Vehicle Communication Interface Module (VCIM), Rear Seat Entertainment (RSE) Assembly, Remote Playback Device - CD Player |
| RADIO AMP Fuse | 30A | Audio Amplifier |
| RH HID Fuse | 20A | Headlamp Ballast - Right |
| HORN Fuse | 15A | Horn - Left, Horn - Right |
| EAP Fuse | 15A | Electronic Adjustable Pedals (EAP) Relay |
| TREC Fuse | 30A | Transfer Case Encoder Motor, Transfer Case Shift Control Module |
| SBA Fuse | 15A | Supplemental Brake Assist Pump Motor |
