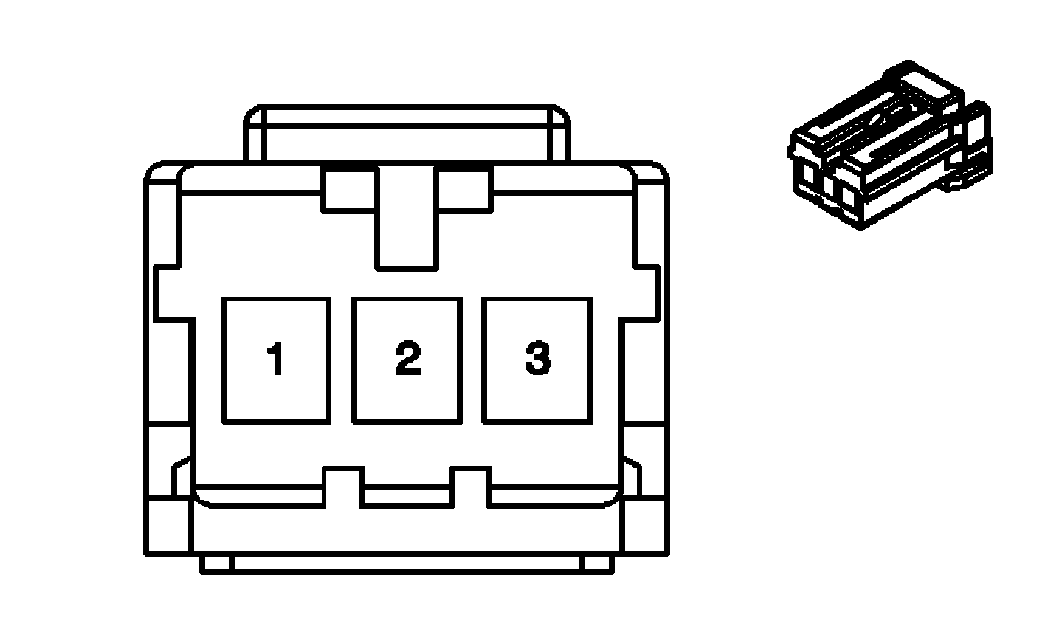

Analog Clock Connector End View

Analog Clock - w/Z75

GM697021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15368694
  • 3-Way F
Pin Wire Color Circuit No. Function
1 OG 340 Battery Positive Voltage
2 BK 1050 Ground
3 BN/WH 230 Instrument Panel Lamps Dimming Control
