License Lamp Connector End Views

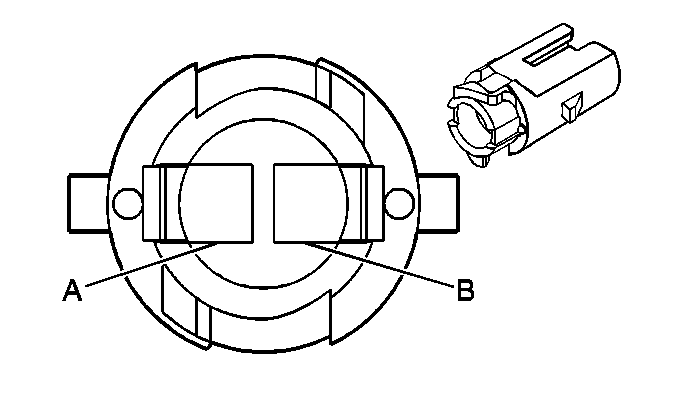

License Lamp - Left

GM309447Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • Bulb Type W-2, Axial (GY)
Pin Wire Color Circuit No. Function
A BN 2509 Left Rear Park Lamps Supply Voltage
B BK 1750 Ground
License Lamp - Right

GM309447Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • Bulb Type W-2, Axial (GY)
Pin Wire Color Circuit No. Function
A BN 2609 Right Rear Park Lamps Supply Voltage (w/o NYS)
BN/WH 2509 Left Rear Park Lamps Supply Voltage (w/NYS)
B BK 1750 Ground
