Mini Wedge (Door Jamb Switch) Connector End Views

Mini Wedge (Door Jamb Switch) - Driver - C1

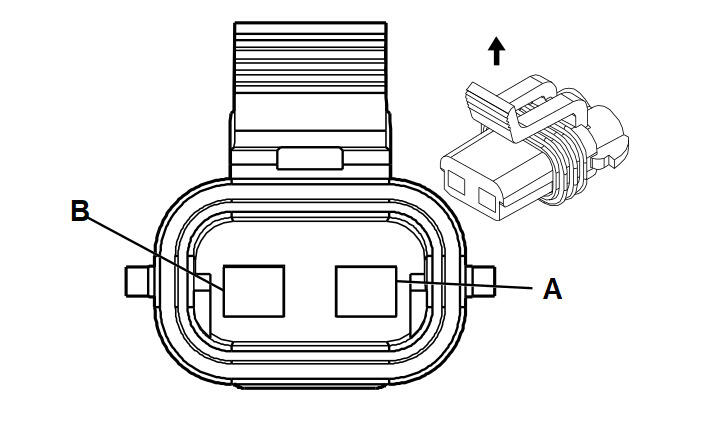

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
694 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Mini Wedge (Door Jamb Switch) - Driver - C2

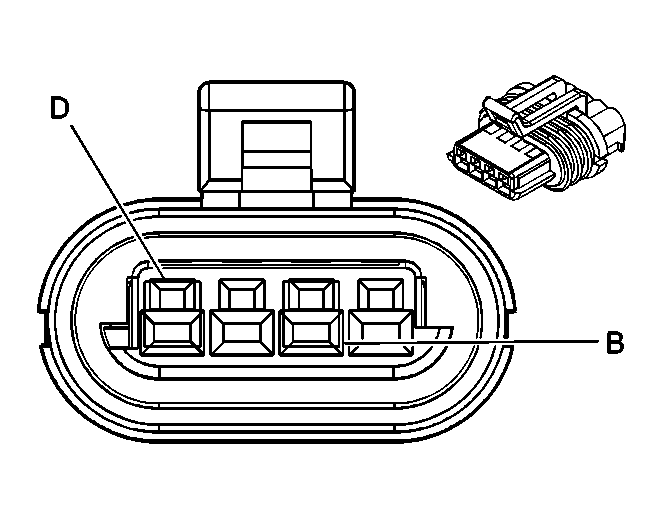

GM684972Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366025
  • 3-Way F GT 150 SLD 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B GY/BK 745 Left Front Door Ajar Switch Signal
C - - Not Used
D BN 1183 Left Front Door Switch Low Reference
Mini Wedge (Door Jamb Switch) - Driver - C3

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series Sealed (L GN)
Pin Wire Color Circuit No. Function
A D BU 536 Driver Door Key Switch Low Reference
B L GN 262 Driver Door Key Switch Signal
Mini Wedge (Door Jamb Switch) - Front Passenger - C1

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Mini Wedge (Door Jamb Switch) - Front Passenger - C2

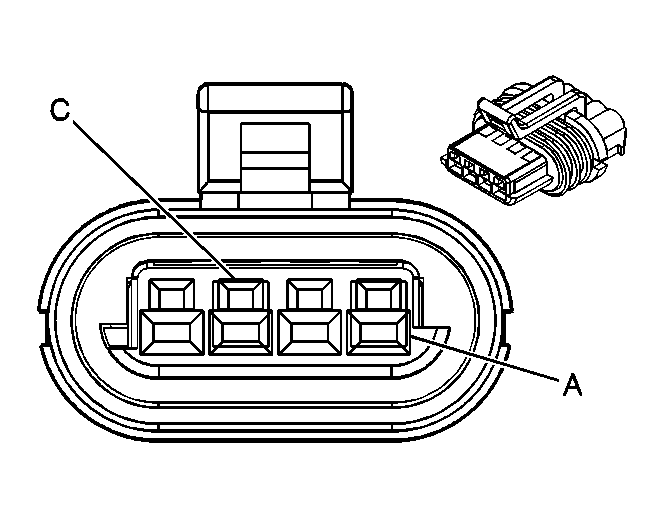

GM684974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366027
  • 2-Way F GT 150 SLD 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A D GN 1178 Right Front Door Switch Low Reference
C BK/WH 746 Right Front Door Ajar Switch Signal
Mini Wedge (Door Jamb Switch) - Front Passenger - C3

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series Sealed (L GN)
Pin Wire Color Circuit No. Function
A L BU 537 Passenger Door Key Switch Low Reference
B L GN 265 Passenger Door Key Switch Signal
Mini Wedge (Door Jamb Switch) - LR - C1

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Mini Wedge (Door Jamb Switch) - LR - C2

GM684972Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366025
  • 2-Way F GT 150 Sealed 3.2x4.0 (BK)
Pin Wire Color Circuit No. Function
B L BU/BK 747 Left Rear Door Ajar Switch Signal
D BK 1150 Ground
Mini Wedge (Door Jamb Switch) - RR - C1

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Mini Wedge (Door Jamb Switch) - RR - C2

GM684972Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15366025
  • 2-Way F GT 150 Sealed 3.2x4.0 (BK)
Pin Wire Color Circuit No. Function
B L GN/BK 748 Right Rear Door Ajar Switch Signal
D BK 1250 Ground
