Trailer Connector Connector End View - Heavy Duty

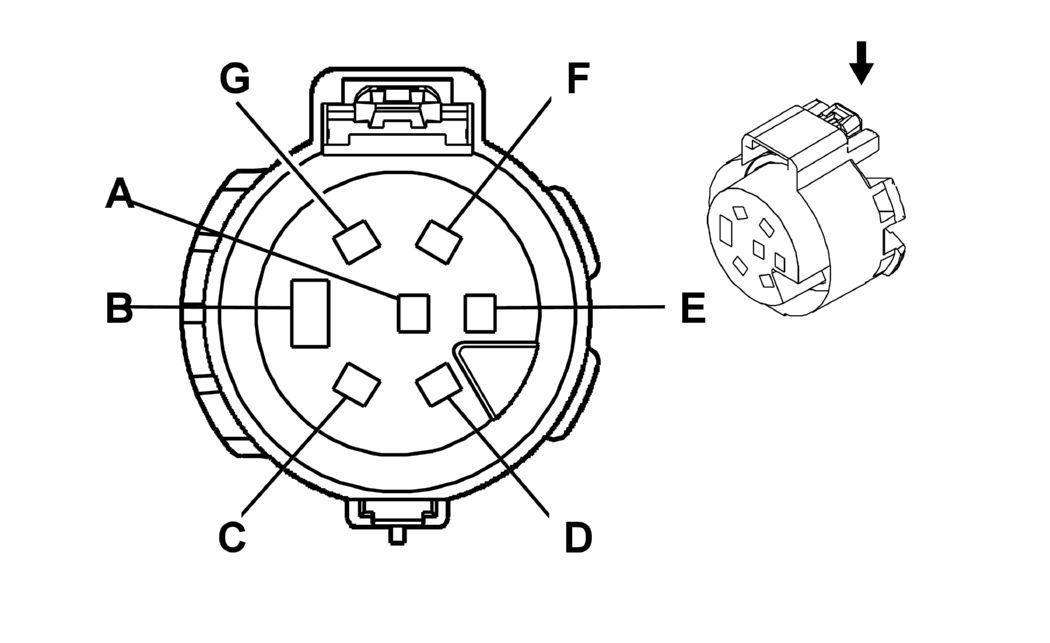

Trailer Connector - Heavy Duty

GM525095Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354653
  • 7-Way F Metri-Pack 280 Sealed (BK)
Pin Wire Color Circuit No. Function
A L GN 1624 Trailer Backup Lamps Supply Voltage
B BK 1550 Ground (30 Series Except Chassis Cab)
1650 Ground (30 Series Chassis Cab)
1750 Ground (10/20 Series)
C D BU 47 Trailer Auxiliary Supply Voltage
D D GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
E RD 742 Battery Positive Voltage
F BN 2109 Trailer Park Lamps Supply Voltage
G YE 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
